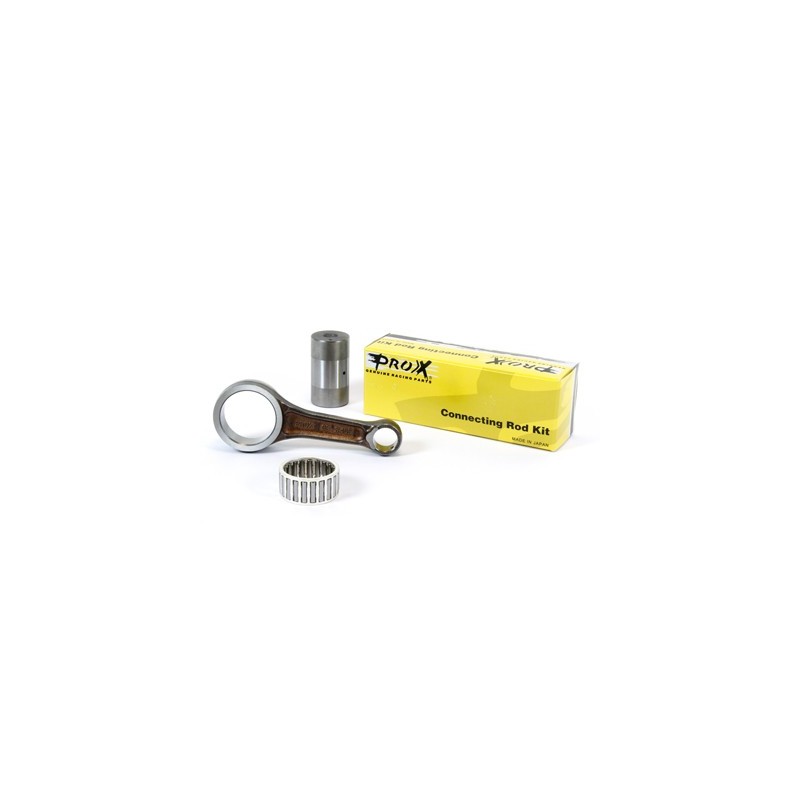

PROX offers you this complete connecting rod kit for your SUZUKI RMZ 450. This complete package will enable you to refurbish your crankshaft, which may have some play from top to bottom. Rather than changing the complete crankshaft, you'll often just need to change the connecting rod. This connecting rod is a cast model sold with its needle cage, anti-friction shims and crankpin. It has the same original dimensions. No adaptation is required. To change a connecting rod, you'll need a press, a balancing bench and a little patience. If you don't have the equipment to do this, you can send us your crankshaft so we can do the fitting ourselves. You can also e-mail us for a quote. All connecting rod dimensions are given below.

Technical data:

Center distance (mm): 106.1

Bore of small end (mm): 19

Connecting rod head bore (mm): 42

Small end bore width (mm): 18.4

Connecting-rod bore width (mm): 19.75

Crankpin Ø (mm): 34

Crankpin length (mm): 60.85

Small end bearing (mm) :

Connecting rod head bearing (mm) :

Washers (mm): No

Fits on :

SUZUKI RM-Z 450 2026

SUZUKI RM-Z 450 2025

SUZUKI RM-Z 450 2024

SUZUKI RM-Z 450 2023

SUZUKI RM-Z 450 2022

SUZUKI RM-Z 450 2021

SUZUKI RM-Z 450 2020

SUZUKI RM-Z 450 2019

SUZUKI RM-Z 450 2018

SUZUKI RM-Z 450 2017

SUZUKI RM-Z 450 2016

SUZUKI RM-Z 450 2015

SUZUKI RM-Z 450 2014

SUZUKI RM-Z 450 2013

SUZUKI RM-Z 450 2007

SUZUKI RM-Z 450 2006

SUZUKI RM-Z 450 2005
