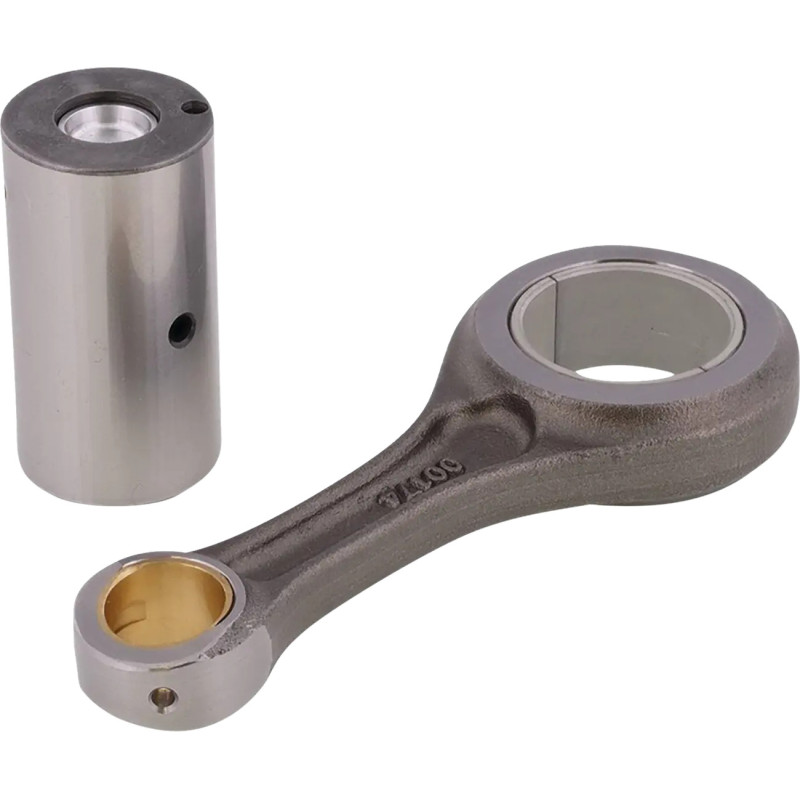

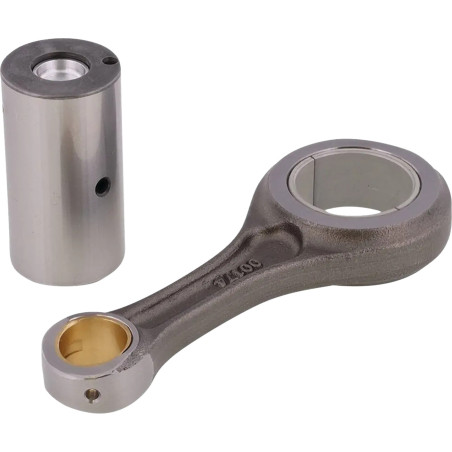

HOT RODS connecting rod kit for KTM SX-F 250, XC-F 250, HUSQVARNA FC 250 and GAS GAS EC 250 F, MC 250 F from 2016 to 2023

HOT RODS offers this connecting rod kit for KTM SX-F 250, XC-F 250, HUSQVARNA FC 250 and GAS GAS EC 250 F, MC 250 F from 2016 to 2023. The rod passes the piston’s motion to the crankshaft. Its big-end bearing spins at very high revs and eventually develops play.

Why replace the connecting rod?

The benefits:

• Remove the play that causes noise and vibration.
• Make a high-hours engine reliable again.
• Cheaper than a complete crankshaft when the flywheels are good.

Why choose HOT RODS?

Hot Rods crankshafts come assembled and trued: double-forged 8620 steel rod and hardened crankpin (58-62 HRC), a ready-to-fit bottom-end rebuild.

When should you replace the connecting rod?

Unusual vibration, a deep knock that follows engine speed or play in the con-rod: the bottom end needs a rebuild.

Recommended hours for a bottom-end rebuild (manufacturer recommendation for the KTM SX-F, Husqvarna FC 2016-2022):

• Racing: every 100 h.
• Leisure: no KTM figure; have the wear checked at every top-end rebuild.
• KTM EXC-F, Husqvarna FE 2017-2023: racing: every 70 h.

Specifications and fitting tips

• Contents: Connecting Rod, Crank Pin, Crank Pin Plain Bearings
• Displacement: 250 cm³
• Material: 8620 steel
• Engine: 4-stroke
• Heavy-duty OE replacement connecting rods
• Certified AISI 8620 steel for superior strength

Cross-Mania tip: Fitting requires a press and truing the crankshaft with a dial gauge. If you are not equipped, have it done by a workshop.

Also needed with this part

• Crankshaft bearings and seals : see the selection
• Complete engine gasket kit : PROX · TECNIUM
• Piston : PROX 01.6347 · PROX 01.6333.A
• 4-stroke engine oil : LIQUI MOLY 10W40 1 L · MOTUL 10W50

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
GAS GAS EC 250 F 2023
GAS GAS EC 250 F 2022
GAS GAS EC 250 F 2021
GAS GAS MC 250 F 2023
GAS GAS MC 250 F 2022
GAS GAS MC 250 F 2021
HUSQVARNA FC 250 2022
HUSQVARNA FC 250 2021
HUSQVARNA FC 250 2020
HUSQVARNA FC 250 2019
HUSQVARNA FC 250 2018
HUSQVARNA FC 250 2017
HUSQVARNA FC 250 2016
KTM SX-F 250 2022
KTM SX-F 250 2021
KTM SX-F 250 2020
KTM SX-F 250 2019
KTM SX-F 250 2018
KTM SX-F 250 2017
KTM SX-F 250 2016
KTM XC-F 250 2017
KTM XC-F 250 2016
KTM XC-F 250 I 2022
KTM XC-F 250 I 2021
KTM XC-F 250 I 2020
KTM XC-F 250 I 2019
KTM XC-F 250 I 2018
