- New

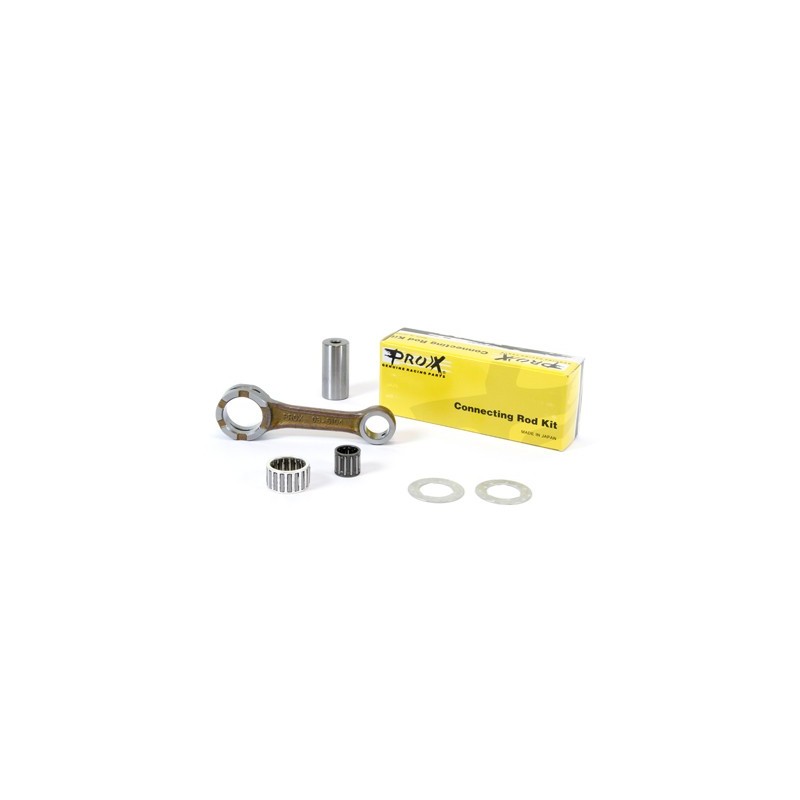

PROX offers you this complete connecting rod kit for your KTM 85 SX and KTM 105 SX. This complete package will enable you to refurbish your crankshaft, which may have some play from top to bottom. Rather than replacing the complete crankshaft, you'll often just need to change the connecting rod. This connecting rod is a cast model sold complete with needle cage, anti-friction shims and crank pin. It has the same original dimensions. No adaptation is required. To change a connecting rod, you'll need a press, a balancing bench and a little patience. If you don't have the equipment to do this, you can send us your crankshaft so we can do the fitting ourselves. You can also e-mail us for a quote. All connecting rod dimensions are given below.
Technical data :
Center distance (mm) : 96
Inside diameter of small connecting rod end (mm): 18
Inside diameter of large connecting rod end (mm): 28
Width of small connecting rod end (mm): 12.9
Width of large connecting rod end (mm): 16
Crank pin diameter (mm): 22
Crank pin length (mm): 46
Piston pin cage (mm) :
Crank pin cage (mm) :
Connecting rod bushing (mm): 1
Fits on :
KTM 85 SX STD WHEELS 17/14 2012
KTM 85 SX STD WHEELS 17/14 2011
KTM 85 SX STD WHEELS 17/14 2010
KTM 85 SX STD WHEELS 17/14 2009
KTM 85 SX STD WHEELS 17/14 2008
KTM 85 SX STD WHEELS 17/14 2007
KTM 85 SX STD WHEELS 17/14 2006
KTM 85 SX STD WHEELS 17/14 2005
KTM 85 SX STD WHEELS 17/14 2004
KTM 105 SX 2006
KTM 85 SX BIG WHEELS 19/16 2012
KTM 85 SX BIG WHEELS 19/16 2011
KTM 85 SX BIG WHEELS 19/16 2010
KTM 85 SX BIG WHEELS 19/16 2009
KTM 85 SX BIG WHEELS 19/16 2008
KTM 85 SX BIG WHEELS 19/16 2007
KTM 85 SX BIG WHEELS 19/16 2006
KTM 85 SX BIG WHEELS 19/16 2005
KTM 85 SX BIG WHEELS 19/16 2004
