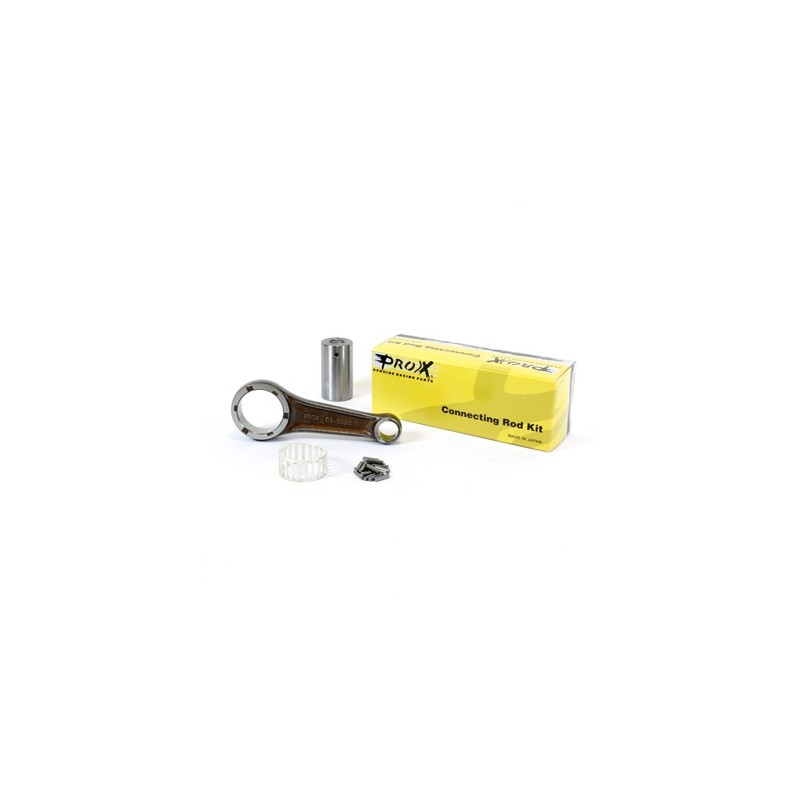

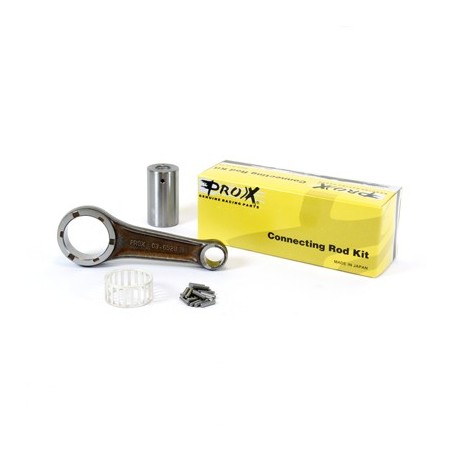

PROX offers you this complete connecting rod kit for your KTM 530 EXC-R. This complete package will enable you to refurbish your crankshaft, which may have some play from top to bottom. Rather than changing the complete crankshaft, you'll often just need to change the connecting rod. This connecting rod is a cast model sold complete with needle cage, anti-friction shims and crankpin. It has the same original dimensions. No adaptation is required. To change a connecting rod, you'll need a press, a balancing bench and a little patience. If you don't have the equipment to do this, you can send us your crankshaft so we can do the fitting ourselves. You can also e-mail us for a quote. All connecting rod dimensions are given below.

Technical data :

Center distance (mm): 120.8

Short side bore (mm): 19

Connecting rod head bore (mm): 42

Bore width short side (mm): 19.9

Connecting-rod bore width (mm): 19.9

Crankpin Ø (mm): 35

Crankpin length (mm): 62.8

Short-side bearing (mm) :

Connecting rod head bearing (mm) :

Washers (mm): No

Fits on :

KTM 530 EXC FACTORY EDITION 2011

KTM 530 EXC RACING SIX DAYS 2008

KTM 530 EXC RACING 2008

KTM 530 EXC SIX DAYS 2011

KTM 530 EXC SIX DAYS 2010

KTM 530 EXC SIX DAYS 2009

KTM 530 EXC 2011

KTM 530 EXC 2010

KTM 530 EXC 2009
