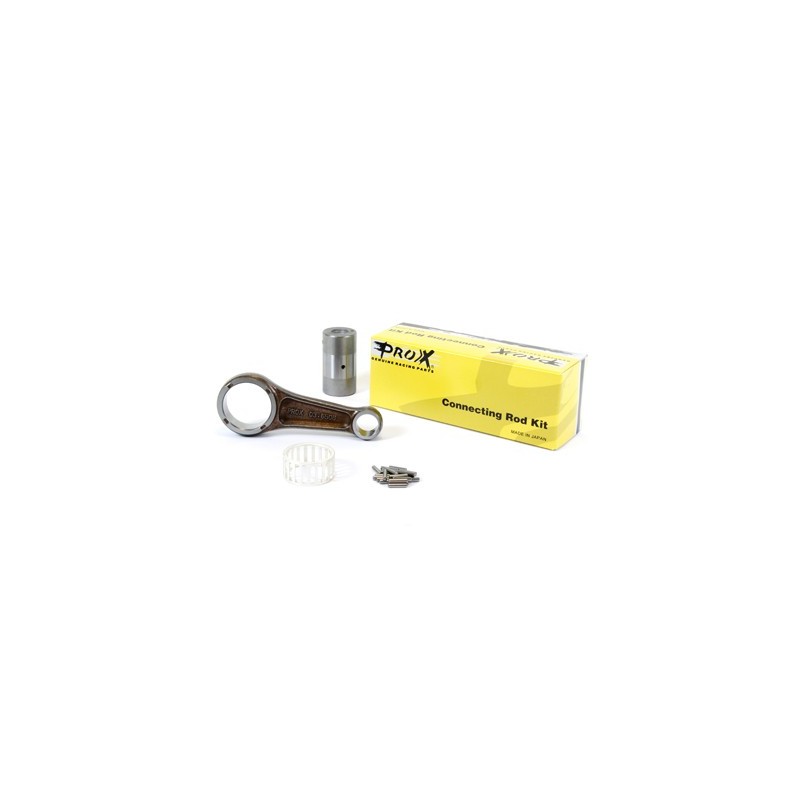

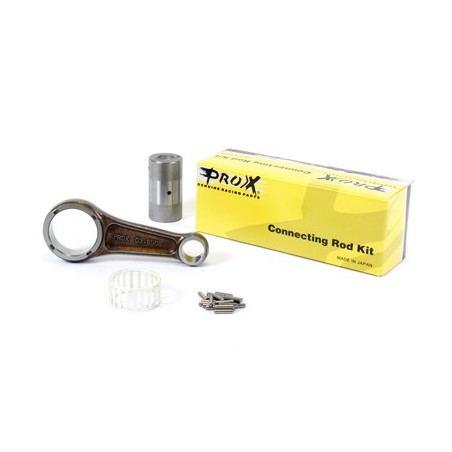

PROX offers you this complete connecting rod kit for your KTM 505 SX-F/SX ATV/XC-F. This complete package will enable you to refurbish your crankshaft, which may have some play from top to bottom. Rather than replacing the complete crankshaft, you'll often just need to change the connecting rod. This connecting rod is a cast model sold complete with needle cage, anti-friction shims and crank pin. It has the same original dimensions. No adaptation is required. To change a connecting rod, you'll need a press, a balancing bench and a little patience. If you don't have the equipment to do this, you can send us your crankshaft so we can do the fitting ourselves. You can also e-mail us for a quote. All connecting rod dimensions are given below.

Technical data :

Center distance (mm): 106.7

Small pin bore (mm): 20

Connecting rod head bore (mm): 42

Small pin bore width (mm): 17.9

Connecting-rod bore width (mm): 19.9

Crankpin Ø (mm): 35

Crankpin length (mm): 63.9

Small pin bearing (mm) :

Connecting rod head bearing (mm) :

Washers (mm): No

Fits on :

KTM 505 SX-F 2008

KTM 505 SX ATV 2009

KTM 505 SX ATV 2010

KTM 505 SX ATV 2011

KTM 505 SX ATV 2012

KTM 505 XC-F 2009
