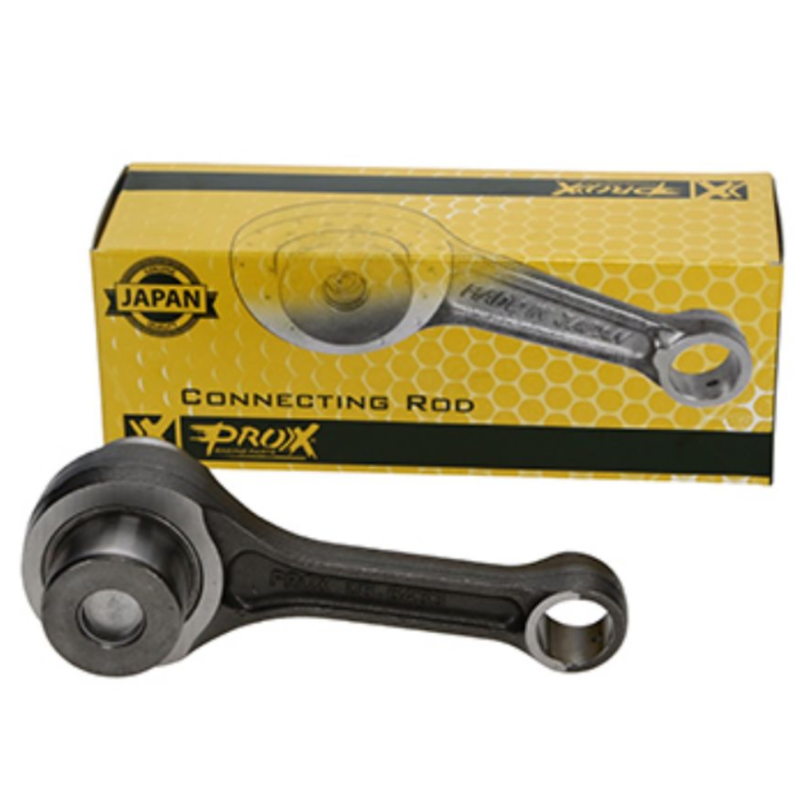

PROX offers you this complete connecting rod kit for your KTM 450SX-F and 450EXC-F. This complete package will enable you to refurbish your crankshaft, which may have some play from top to bottom. Rather than replacing the complete crankshaft, you'll often just need to change the connecting rod. This connecting rod is a cast model sold complete with needle cage, anti-friction shims and crankpin. It has the same original dimensions. No adaptation is required. To change a connecting rod, you'll need a press, a balancing bench and a little patience. If you don't have the equipment to do this, you can send us your crankshaft so we can do the fitting ourselves. You can also e-mail us for a quote. All connecting rod dimensions are given below.

Technical data :

Center distance (mm) : 114

Short side bore (mm): 19

Connecting rod head bore (mm): 35

Bore width short side (mm): 20

Connecting-rod bore width (mm): 20

Crank pin Ø (mm): 35

Crankpin length (mm): 62.7

Short-side bearing (mm) :

Connecting rod head bearing (mm): Ring

Washers (mm): No

Fits on :

KTM 450 SX-F 2015

KTM 450 SX-F 2014

KTM 450 SX-F 2013
