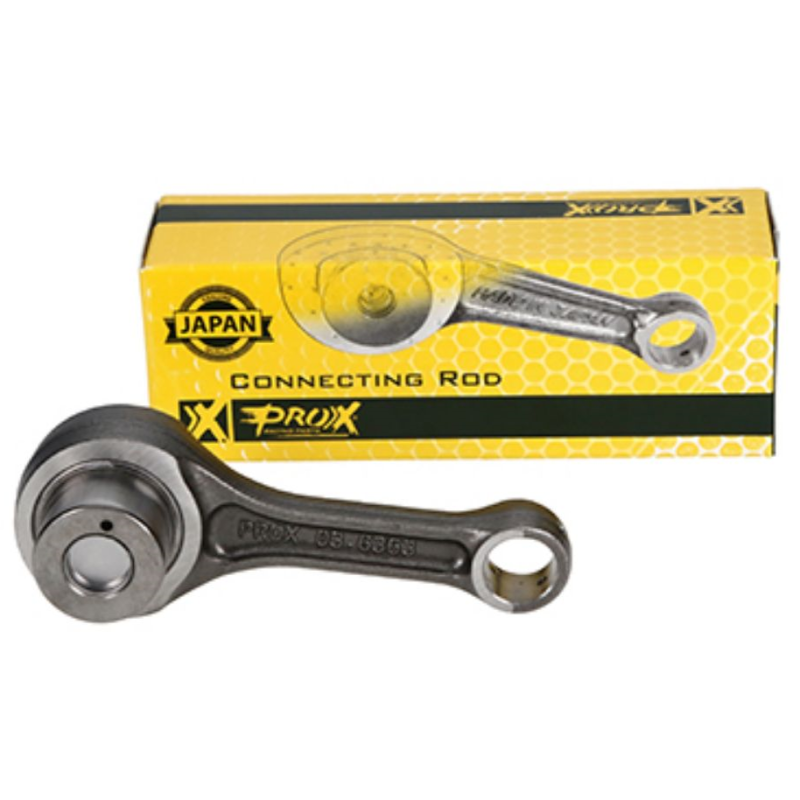

PROX offers you this complete connecting rod kit for your KTM 350SX-F and KTM 350EXC-F. This complete package will enable you to refurbish your crankshaft, which may have some play from top to bottom. Rather than replacing the entire crankshaft, you'll often just need to change the connecting rod. This connecting rod is a cast model sold complete with needle cage, anti-friction shims and crankpin. It has the same original dimensions. No adaptation is required. To change a connecting rod, you'll need a press, a balancing bench and a little patience. If you don't have the equipment to do this, you can send us your crankshaft so we can do the fitting ourselves. You can also e-mail us for a quote. All connecting rod dimensions are given below.

Technical data :

Center distance (mm) : 102

Short side bore (mm): 18

Connecting rod head bore (mm): 32

Small-side bore width (mm): 17

Connecting-rod bore width (mm): 20

Crank pin Ø (mm): 32

Crankpin length (mm): 59.9

Short-side bearing (mm) :

Connecting rod head bearing (mm): Ring

Washers (mm): No

Fits on :

KTM 350 EXC-F 350 2016

KTM 350 EXC-F 350 2015

KTM 350 EXC-F 350 2014

KTM 350 SX-F 350 2015

KTM 350 SX-F 350 2014

KTM 350 SX-F 350 2013
