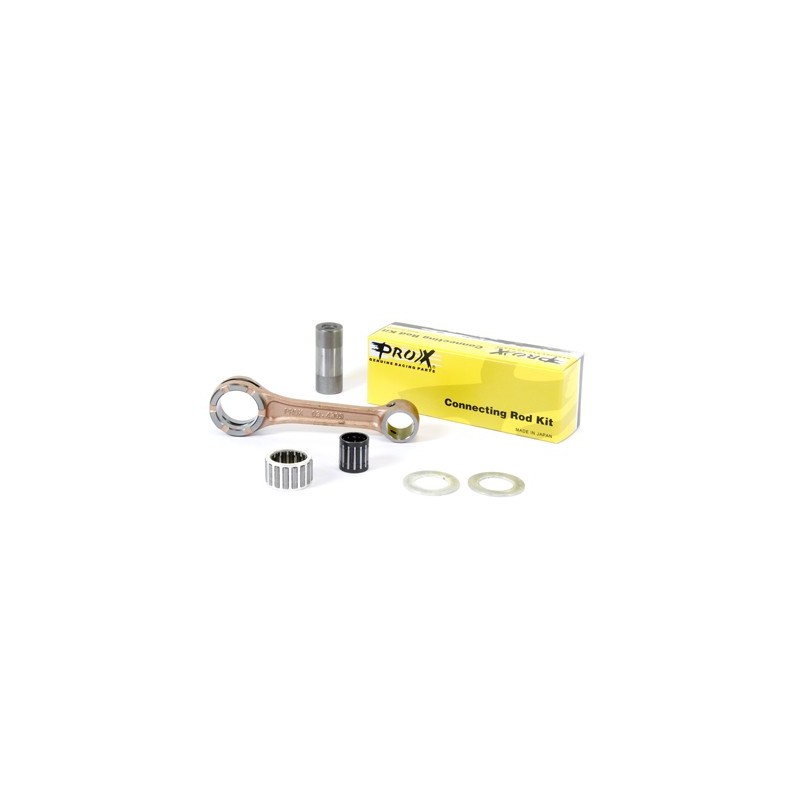

PROX offers you this complete connecting rod kit for your KAWASAKI KX/KDX 250. This complete package will enable you to refurbish your crankshaft, which may have some play from top to bottom. Rather than replacing the complete crankshaft, you'll often just need to change the connecting rod. This connecting rod is a cast model sold with its connecting-rod needle cage, anti-friction shims and crank pin. It has the same original dimensions. No adaptation is required. To change a connecting rod, you'll need a press, a balancing bench and a little patience. If you don't have the equipment to do this, you can send us your crankshaft so we can do the fitting ourselves. You can also e-mail us for a quote. All connecting rod dimensions are given below.

Technical data :

Axis center distance (mm) : 125

Inside diameter of small connecting rod end (mm): 22

Inside diameter of large connecting rod end (mm): 32

Width of small connecting rod end (mm): 22

Large connecting rod end width (mm): 20

Crankpin diameter (mm): 24

Crankpin length (mm): 58.5

Piston pin cage (mm) :

Crank pin cage (mm) :

Connecting rod roundness (mm): 1.5

Fits on :

KAWASAKI KX 250 (KX250A) 1981

KAWASAKI KX 250 (KX250A) 1980

KAWASAKI KX 250 (KX250A) 1979

KAWASAKI KX 250 (KX250A) 1978

KAWASAKI KX 250 (KX250A) 1977

KAWASAKI KX 250 (KX250A) 1976

KAWASAKI KX 250 (KX250A) 1975

KAWASAKI KX 250 (KX250A) 1974

KAWASAKI KX 250 (KX250C) 1984

KAWASAKI KX 250 (KX250C) 1983

KAWASAKI KX 250 (KX250D) 1986

KAWASAKI KX 250 (KX250D) 1985

KAWASAKI KX 250 (KX250E) 1987

KAWASAKI KX 250 (KX250B) 1982

KAWASAKI KX 250 (KX250F) 1988

KAWASAKI KX 250 (KX250G) 1989

KAWASAKI KX 250 (KX250H) 1991

KAWASAKI KX 250 (KX250J) 1993

KAWASAKI KX 250 (KX250K) 1997

KAWASAKI KX 250 (KX250K) 1995

KAWASAKI KX 250 (KX250H) 1990

KAWASAKI KX 250 (KX250J) 1992

KAWASAKI KX 250 (KX250K) 1998

KAWASAKI KX 250 (KX250K) 1996

KAWASAKI KX 250 (KX250K) 1994

KAWASAKI KX 250 (KX250L) 2002

KAWASAKI KX 250 (KX250L) 2001

KAWASAKI KX 250 (KX250L) 2000

KAWASAKI KX 250 (KX250L) 1999

KAWASAKI KX 250 (KX250M) 2004

KAWASAKI KX 250 (KX250M) 2003

KAWASAKI KX 250 (KX250R) 2008

KAWASAKI KX 250 (KX250R) 2007

KAWASAKI KX 250 (KX250R) 2006

KAWASAKI KX 250 (KX250R) 2005

KAWASAKI KDX 250 (KDX250D) 1996

KAWASAKI KDX 250 (KDX250D) 1994

KAWASAKI KDX 250 (KDX250D) 1992

KAWASAKI KDX 250 (KDX250D) 1991

KAWASAKI KDX 250 (KDX250E) 1992

KAWASAKI KDX 250 (KDX250D) 1995

KAWASAKI KDX 250 (KDX250D) 1993

KAWASAKI KDX 250 (KDX250E) 1991
