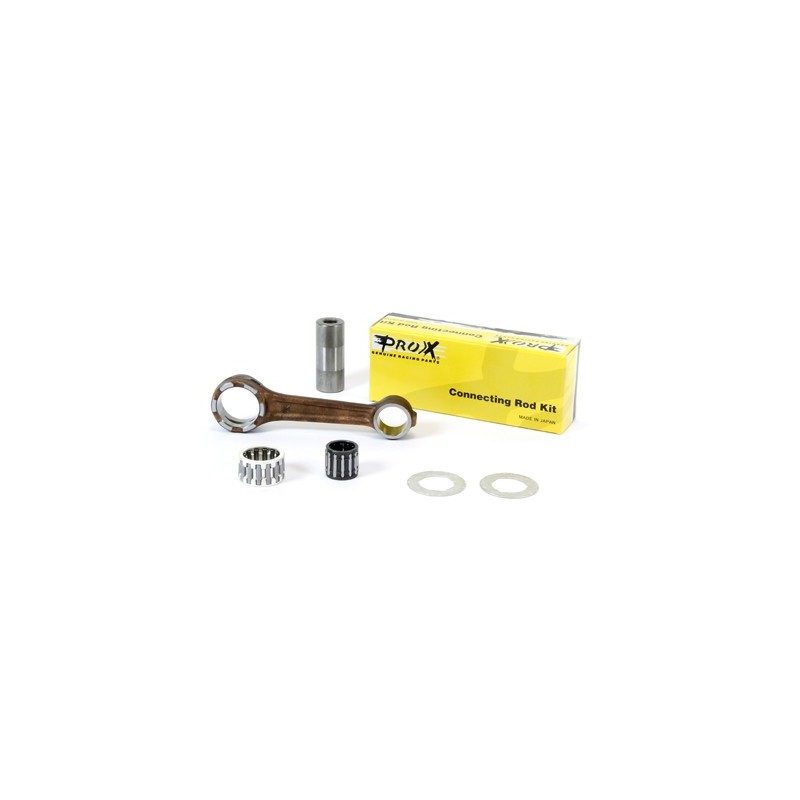

PROX offers you this complete connecting rod kit for your KAWASAKI KMX 125. This complete package will enable you to refurbish your crankshaft, which may have some play from top to bottom. Rather than changing the complete crankshaft, you'll often just need to change the connecting rod. This connecting rod is a cast model sold with its connecting-rod needle cage, anti-friction shims and crank pin. It has the same original dimensions. No adaptation is required. To change a connecting rod, you'll need a press, a balancing bench and a little patience. If you don't have the equipment to do this, you can send us your crankshaft so we can do the fitting ourselves. You can also e-mail us for a quote. All connecting rod dimensions are given below.

Technical data :

Center distance (mm) : 106

Inside diameter of small connecting rod end (mm): 21

Inside diameter of large connecting rod end (mm): 29

Width of small connecting rod end (mm): 17

Width of large connecting rod end (mm): 17

Crank pin diameter (mm): 22

Crank pin length (mm): 54

Piston pin cage (mm) :

Crank pin cage (mm) :

Connecting rod washers (mm): 1

Fits on :

KAWASAKI KMX 125 (KMX125B) 2001

KAWASAKI KMX 125 (KMX125B) 1999

KAWASAKI KMX 125 (KMX125B) 1997

KAWASAKI KMX 125 (KMX125B) 1996

KAWASAKI KMX 125 (KMX125B) 1995

KAWASAKI KMX 125 (KMX125B) 1994

KAWASAKI KMX 125 (KMX125B) 1993

KAWASAKI KMX 125 (KMX125B) 1992

KAWASAKI KMX 125 (KMX125B) 1991

KAWASAKI KMX 125 (KMX125B) 1990

KAWASAKI KMX 125 (KMX125B) 1989

KAWASAKI KMX 125 (KMX125B) 1988

KAWASAKI KMX 125 (KMX125B) 1987

KAWASAKI KMX 125 (KMX125B) 1986

KAWASAKI KMX 125 (KMX125A) 1998

KAWASAKI KMX 125 (KMX125A) 1997

KAWASAKI KMX 125 (KMX125A) 1996

KAWASAKI KMX 125 (KMX125A) 1995

KAWASAKI KMX 125 (KMX125A) 1994

KAWASAKI KMX 125 (KMX125A) 1993

KAWASAKI KMX 125 (KMX125A) 1992

KAWASAKI KMX 125 (KMX125A) 1991

KAWASAKI KMX 125 (KMX125A) 1990

KAWASAKI KMX 125 (KMX125A) 1989

KAWASAKI KMX 125 (KMX125A) 1988

KAWASAKI KMX 125 (KMX125A) 1987

KAWASAKI KMX 125 (KMX125A) 1986

KAWASAKI KMX 200 (KMX200A) 1991

KAWASAKI KMX 200 (KMX200A) 1990

KAWASAKI KMX 200 (KMX200A) 1989

KAWASAKI KMX 200 (KMX200A) 1988

KAWASAKI KMX 125 (KMX125B) 2002

KAWASAKI KMX 125 (KMX125B) 2000

KAWASAKI KMX 125 (KMX125B) 1998
