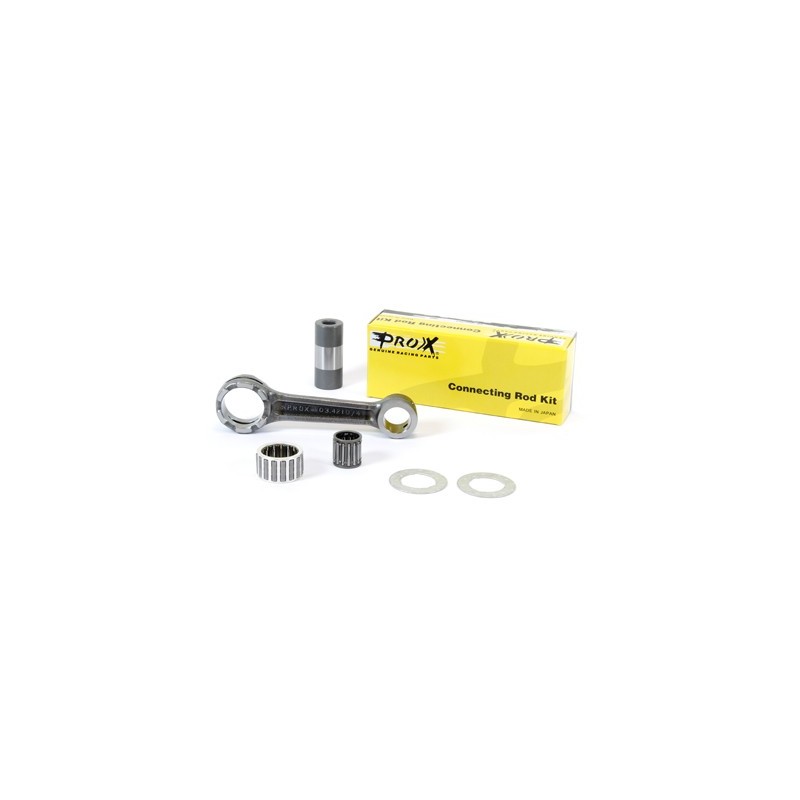

PROX offers you this complete connecting rod kit for your KAWASAKI KX 125. This complete package will enable you to refurbish your crankshaft, which may have some play from top to bottom. Rather than changing the complete crankshaft, you'll often just need to change the connecting rod. This connecting rod is a cast model sold with its connecting-rod needle cage, anti-friction shims and crank pin. It has the same original dimensions. No adaptation is required. To change a connecting rod, you'll need a press, a balancing bench and a little patience. If you don't have the equipment to do this, you can send us your crankshaft so we can do the fitting ourselves. You can also e-mail us for a quote. All connecting rod dimensions are given below.

Technical data :

Center distance (mm) : 106

Inside diameter of small connecting rod end (mm): 19

Inside diameter of large connecting rod end (mm): 29

Width of small connecting rod end (mm): 17

Large connecting rod end width (mm): 17

Crankpin diameter (mm): 22

Crankpin length (mm): 51

Piston pin cage (mm) :

Crank pin cage (mm) :

Connecting rod bushing (mm): 1

Fits on :

KAWASAKI KX 125 (KX125K) 1997

KAWASAKI KX 125 (KX125K) 1996

KAWASAKI KX 125 (KX125K) 1995

KAWASAKI KX 125 (KX125K) 1994
