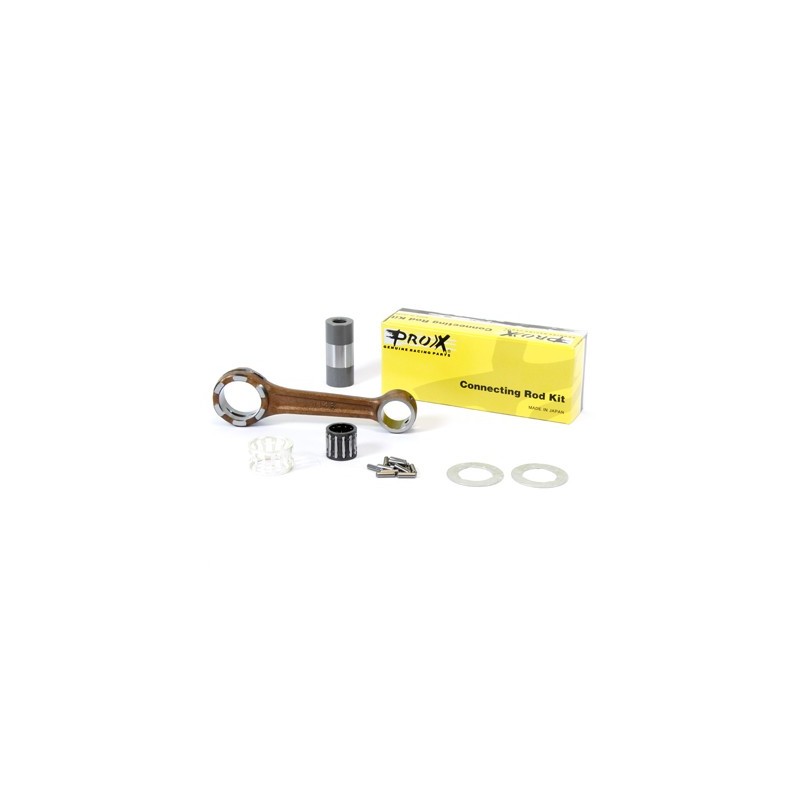

PROX offers you this complete connecting rod kit for your KAWASAKI. This complete package will enable you to refurbish your crankshaft, which may have some play from top to bottom. Rather than changing the complete crankshaft, you'll often just need to change the connecting rod. This connecting rod is a cast model sold with its connecting-rod needle cage, anti-friction shims and crank pin. It has the same original dimensions. No adaptation is required. To change a connecting rod, you'll need a press, a balancing bench and a little patience. If you don't have the equipment to do this, you can send us your crankshaft so we can do the fitting ourselves. You can also e-mail us for a quote. All connecting rod dimensions are given below.

Technical data :

Center distance (mm) : 109

Inside diameter of small connecting rod end (mm): 21

Inside diameter of large connecting rod end (mm): 29

Width of small connecting rod end (mm): 17

Width of large connecting rod end (mm): 17

Crank pin diameter (mm): 22

Crank pin length (mm): 51

Piston pin cage dimensions (mm): 16 x 21 x 19.4

Crank pin cage dimensions (mm): 22 x 29 x 16.7

Connecting rod washer thickness (mm) : 1

Fits on :

KAWASAKI KX 125 (KX125F) 1988

KAWASAKI KX 125 (KX125G) 1989

KAWASAKI KX 125 (KX125H) 1991

KAWASAKI KX 125 (KX125H) 1990

KAWASAKI KDX 200 (KDX200C) 1988

KAWASAKI KDX 200 (KDX200C) 1987

KAWASAKI KDX 200 (KDX200C) 1986

KAWASAKI KDX 200 (KDX200E) 1994

KAWASAKI KDX 200 (KDX200E) 1993

KAWASAKI KDX 200 (KDX200E) 1992

KAWASAKI KDX 200 (KDX200E) 1991

KAWASAKI KDX 200 (KDX200E) 1990

KAWASAKI KDX 200 (KDX200E) 1989

KAWASAKI KDX 200 (KDX200H) 2002

KAWASAKI KDX 200 (KDX200H) 2000

KAWASAKI KDX 200 (KDX200H) 1999

KAWASAKI KDX 200 (KDX200H) 1998

KAWASAKI KDX 200 (KDX200H) 1997

KAWASAKI KDX 200 (KDX200H) 1996

KAWASAKI KDX 200 (KDX200H) 1995

KAWASAKI KDX 200 (KDX200H) 2006

KAWASAKI KDX 200 (KDX200H) 2005

KAWASAKI KDX 200 (KDX200H) 2004

KAWASAKI KDX 200 (KDX200H) 2003

KAWASAKI KDX 200 (KDX200H) 2001

KAWASAKI KDX 220 R (KDX220R) 2005

KAWASAKI KDX 220 R (KDX220R) 2004

KAWASAKI KDX 220 R (KDX220R) 2003

KAWASAKI KDX 220 R (KDX220R) 2002

KAWASAKI KDX 220 R (KDX220R) 2001

KAWASAKI KDX 220 R (KDX220R) 2000

KAWASAKI KDX 220 R (KDX220R) 1999

KAWASAKI KDX 220 R (KDX220R) 1998

KAWASAKI KDX 220 R (KDX220R) 1997
