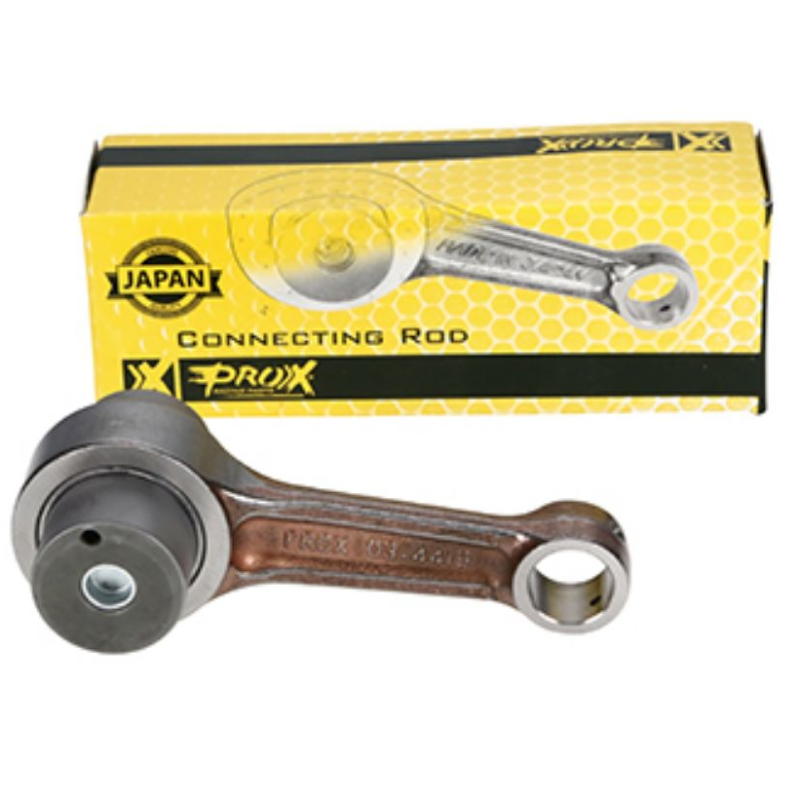

PROX offers you this complete connecting rod kit for your KAWASAKI KX 450 F. This complete package will enable you to refurbish your crankshaft, which may have some play from top to bottom. Rather than replacing the complete crankshaft, you'll often just need to change the connecting rod. This connecting rod is a cast model sold with its connecting-rod needle cage, its anti-friction shims and its crank pin. It has the same original dimensions. No adaptation is required. To change a connecting rod, you'll need a press, a balancing bench and a little patience. If you don't have the equipment to do this, you can send us your crankshaft so we can do the fitting ourselves. You can also e-mail us for a quote. All connecting rod dimensions are given below.

Technical data :

Length from axis to axis (mm) :101,00

Small end bore (mm): 19

Connecting rod head bore (mm): 34

Small end bore width (mm): 18

Connecting-rod bore width (mm): 22

Crank pin Ø (mm): 34

Crankpin length (mm): 62.0

Small end bearing (mm): 19

Connecting rod head bearing (mm): ring

Washers (mm): no

Fits on :

KAWASAKI KX 450 (KX450J) 2022

KAWASAKI KX 450 (KX450J) 2021

KAWASAKI KX 450 (KX450J) 2020

KAWASAKI KX 450 (KX450J) 2019

KAWASAKI KX 450 X 2023

KAWASAKI KX 450 2023
