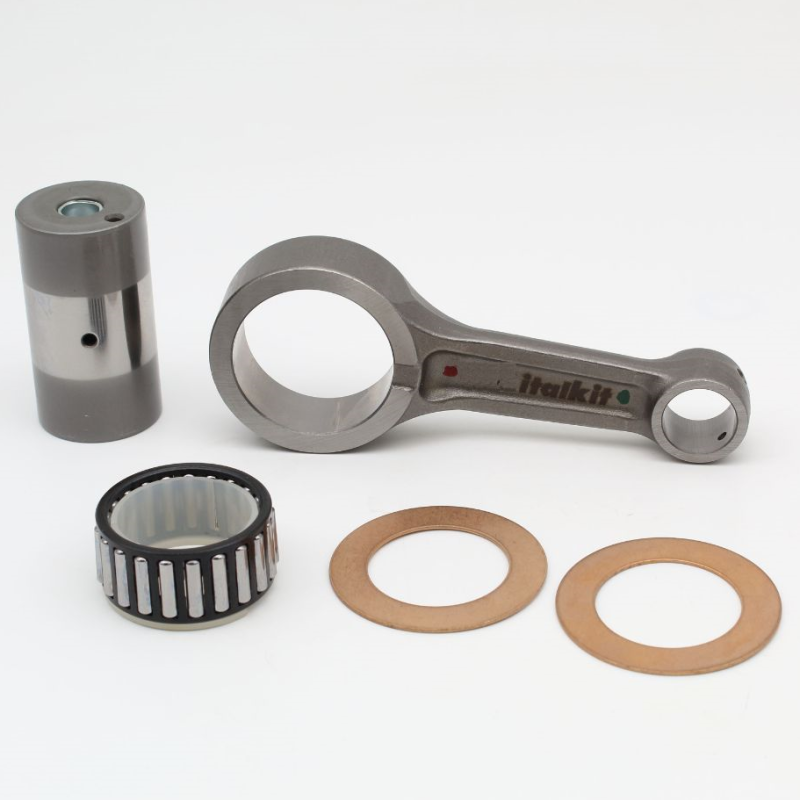

ITALKIT offers you this complete connecting rod kit for your KAWASAKI KX 450 F. This complete package will enable you to refurbish your crankshaft, which may have some play from top to bottom. Rather than replacing the complete crankshaft, you'll often just need to change the connecting rod. This connecting rod is a cast model sold with its connecting-rod needle cage, anti-friction shims and crank pin. It has the same original dimensions. No adaptation is required. To change a connecting rod, you'll need a press, a balancing bench and a little patience. If you don't have the equipment to do this, you can send us your crankshaft so we can do the fitting ourselves. You can also contact us by e-mail for a quotation. All connecting rod dimensions are given below.

Technical data :

Center distance (mm) : 101

Small pin bore (mm): 19

Connecting rod head bore (mm): 42

Small pin bore width (mm): 18

Connecting-rod bore width (mm): 20

Crank pin Ø (mm): 34

Crankpin length (mm): 62

Small pin bearing (mm): 19

Connecting-rod bearing (mm): 34 x 42 x 20

Washers (mm): 1

Fits on :

KAWASAKI KX 450 F 2009

KAWASAKI KX 450 F 2010

KAWASAKI KX 450 F 2011

KAWASAKI KX 450 F 2012

KAWASAKI KX 450 F 2013

KAWASAKI KX 450 F 2014

KAWASAKI KX 450 F 2015

KAWASAKI KX 450 F 2016

KAWASAKI KX 450 F 2017

KAWASAKI KX 450 F 2018
