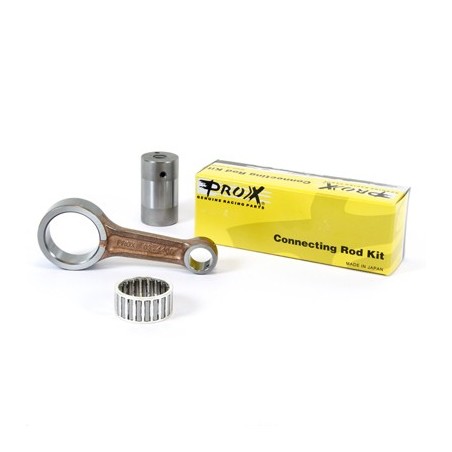

PROX offers you this complete connecting rod kit for your KAWASAKI KX 450 F/KLX 450 R. This complete package will enable you to refurbish your crankshaft, which may have some play from top to bottom. Rather than replacing the complete crankshaft, you'll often just need to change the connecting rod. This connecting rod is a cast model sold with its connecting-rod needle cage, anti-friction shims and crank pin. It has the same original dimensions. No adaptation is required. To change a connecting rod, you'll need a press, a balancing bench and a little patience. If you don't have the equipment to do this, you can send us your crankshaft so we can do the fitting ourselves. You can also e-mail us for a quote. All connecting rod dimensions are given below.

Technical data :

Center distance (mm) : 101

Short side bore (mm): 19

Connecting rod head bore (mm): 42

Bore width short side (mm): 18

Connecting-rod bore width (mm): 20

Crank pin Ø (mm): 34

Crankpin length (mm): 60.1

Short-side bearing (mm) :

Connecting rod head bearing (mm) :

Washers (mm): No

Fits on :

KAWASAKI KLX 450 R 2021 EUROPE

KAWASAKI KLX 450 R 2020 EUROPE

KAWASAKI KLX 450 R 2019 EUROPE

KAWASAKI KLX 450 R 2018 EUROPE

KAWASAKI KLX 450 R 2017 EUROPE

KAWASAKI KLX 450 R 2016 EUROPE

KAWASAKI KLX 450 R 2015 EUROPE

KAWASAKI KLX 450 R 2014 EUROPE

KAWASAKI KLX 450 R 2013 EUROPE

KAWASAKI KLX 450 R 2012 EUROPE

KAWASAKI KLX 450 R 2011 EUROPE

KAWASAKI KLX 450 R 2010

KAWASAKI KLX 450 R 2009

KAWASAKI KLX 450 R 2008

KAWASAKI KX 450 F 2008

KAWASAKI KX 450 F 2007

KAWASAKI KX 450 F 2006
