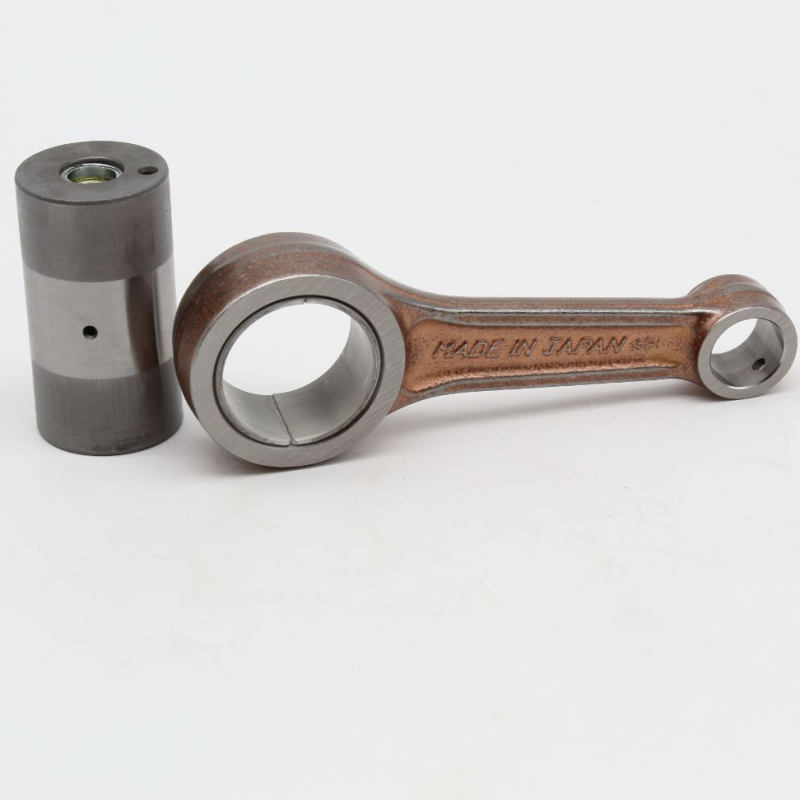

PROX offers you this complete connecting rod kit for your KAWASAKI KX 250/ 250X. This complete package will enable you to refurbish your crankshaft, which may have some play from top to bottom. Rather than replacing the complete crankshaft, you'll often just need to change the connecting rod. This connecting rod is a cast model sold with its connecting-rod needle cage, anti-friction shims and crank pin. It has the same original dimensions. No adaptation is required. To change a connecting rod, you'll need a press, a balancing bench and a little patience. If you don't have the equipment to do this, you can send us your crankshaft so we can do the fitting ourselves. You can also e-mail us for a quote. All connecting rod dimensions are given below.

Technical data :

Center distance (mm): 95.50

Small pin bore (mm): 16

Connecting rod head bore (mm): 30

Small pin bore width (mm): 15

Connecting-rod bore width (mm): 19

Crank pin Ø (mm): 30

Crankpin length (mm): 56.00

Small pin bearing (mm): 16

Connecting rod head bearing (mm): Ring

Washers (mm): No

Fits on :

KAWASAKI KX 250 2026

KAWASAKI KX 250 2025

KAWASAKI KX 250 2024 50th Anniversary

KAWASAKI KX 250 2024

KAWASAKI KX 250 2023

KAWASAKI KX 250 2022

KAWASAKI KX 250 2021

KAWASAKI KX 250 X 2025 Cross Country

KAWASAKI KX 250 X 2024 Cross Country

KAWASAKI KX 250 X 2023 Cross Country

KAWASAKI KX 250 X 2022 Cross Country

KAWASAKI KX 250 X 2021 Cross Country
