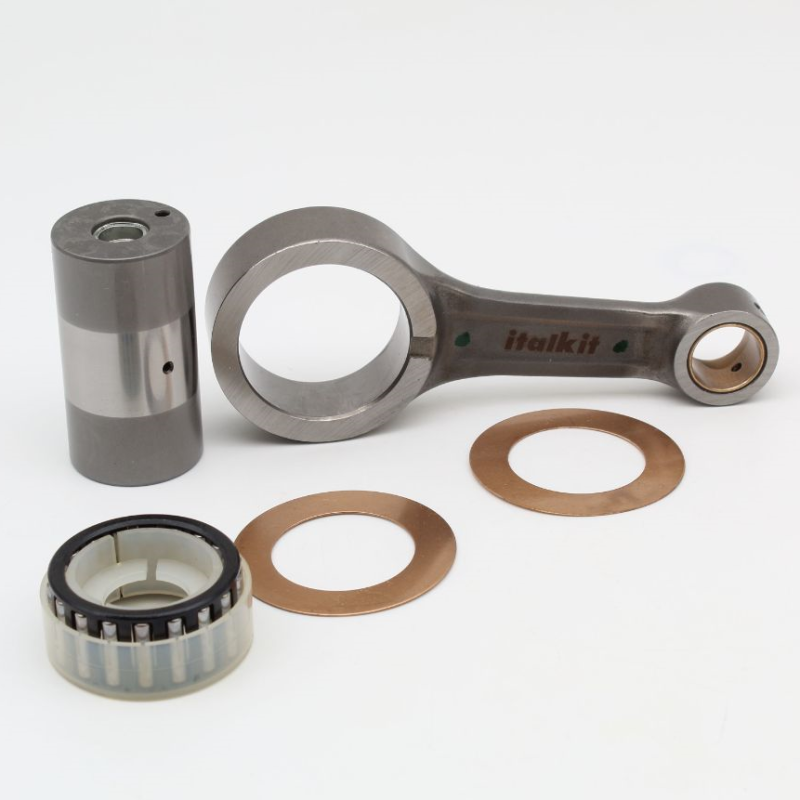

ITALKIT offers you this complete connecting rod kit for your KAWASAKI KX 250 F. This complete package will enable you to refurbish your crankshaft, which may have some play from top to bottom. Rather than replacing the complete crankshaft, you'll often just need to change the connecting rod. This connecting rod is a cast model sold with its connecting-rod needle cage, anti-friction shims and crank pin. It has the same original dimensions. No adaptation is required. To change a connecting rod, you'll need a press, a balancing bench and a little patience. If you don't have the equipment to do this, you can send us your crankshaft so we can do the fitting ourselves. You can also e-mail us for a quote. All connecting rod dimensions are given below.

Technical data :

Center distance (mm): 92.5

Small pin bore (mm): 16

Connecting rod head bore (mm): 38

Small pin bore width (mm): 15.1

Connecting-rod bore width (mm): 18

Crankpin Ø (mm): 30

Crankpin length (mm): 56

Small pin bearing (mm): 16

Connecting-rod bearing (mm): 30 x 38 x 18

Washers (mm): 0.5

Fits on :

KAWASAKI KX 250 F 2010

KAWASAKI KX 250 F 2011

KAWASAKI KX 250 F 2012

KAWASAKI KX 250 F 2013

KAWASAKI KX 250 F 2014

KAWASAKI KX 250 F 2015

KAWASAKI KX 250 F 2016
