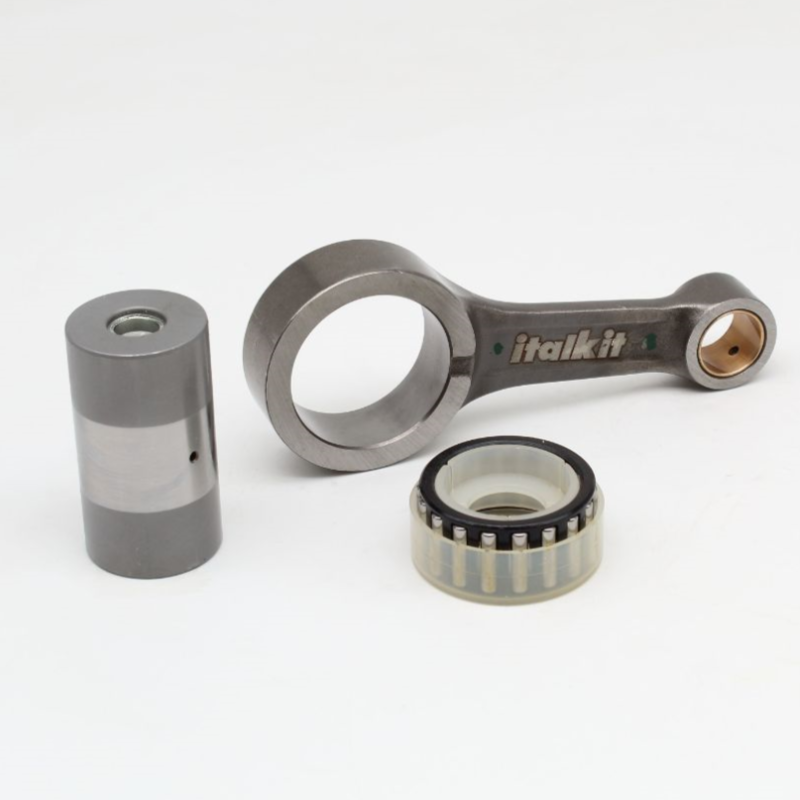

ITALKIT offers you this complete connecting rod kit for your KAWASAKI KX and SUZUKI RMZ 250. This complete package will enable you to refurbish your crankshaft, which may have some play from top to bottom. Rather than replacing the entire crankshaft, you'll often just need to change the connecting rod. This connecting rod is a cast model sold with its connecting-rod needle cage, anti-friction shims and crank pin. It has the same original dimensions. No adaptation is required. To change a connecting rod, you'll need a press, a balancing bench and a little patience. If you don't have the equipment to do this, you can send us your crankshaft so we can do the fitting ourselves. You can also contact us by e-mail for a quotation. All connecting rod dimensions are given below.

Technical data :

Center distance (mm): 92.5

Small pin bore (mm): 16

Connecting rod head bore (mm): 38

Small pin bore width (mm): 15.1

Connecting-rod bore width (mm): 18

Crank pin Ø (mm): 30

Crankpin length (mm): 54.9

Small pin bearing (mm): 16

Connecting-rod bearing (mm): 30 x 38 x 18

Washers (mm): No

Fits on :

KAWASAKI KX 250 F 2004

KAWASAKI KX 250 F 2005

KAWASAKI KX 250 F 2006

KAWASAKI KX 250 F 2007

KAWASAKI KX 250 F 2008

KAWASAKI KX 250 F 2009

SUZUKI RMZ 250 2004

SUZUKI RMZ 250 2005

SUZUKI RMZ 250 2006

SUZUKI RMZ 250 2007

SUZUKI RMZ 250 2008

SUZUKI RMZ 250 2009

SUZUKI RMZ 250 2010

SUZUKI RMZ 250 2011

SUZUKI RMZ 250 2012

SUZUKI RMZ 250 2013

SUZUKI RMZ 250 2014
