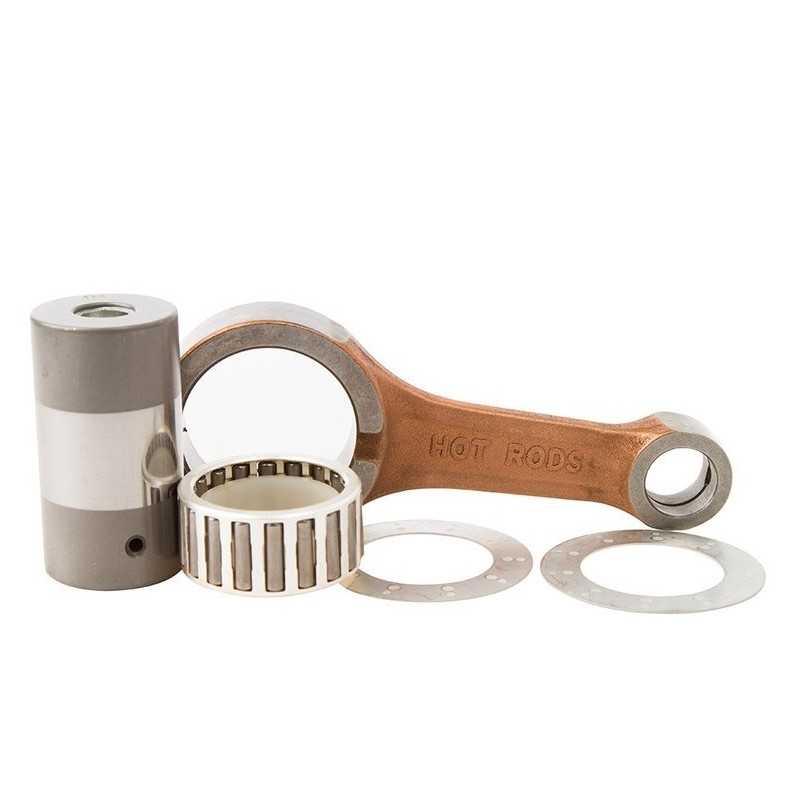

HOT RODS offers you this complete connecting rod kit for your KAWASAKI KXF 250cc and SHERCO SEF 250cc. This complete package will enable you to refurbish your crankshaft, which may have some play from top to bottom. Rather than replacing the entire crankshaft, you'll often just need to change the connecting rod. This connecting rod is a cast model sold with its connecting-rod needle cage, anti-friction shims and crank pin. It has the same original dimensions. No adaptation is required. To change a connecting rod, you'll need a press, a balancing bench and a little patience. If you don't have the equipment to do this, you can send us your crankshaft so we can do the fitting ourselves. You can also e-mail us for a quote. All connecting rod dimensions are given below.

Technical specifications :

Big End connecting rod I.D.: 38mm

Width of connecting rod head: 17.980mm

Connecting rod center to center: 92.500mm

Small end connecting rod I.D.: 16mm

Connecting rod foot width: 15.100mm

Engine type: 4-stroke

Includes connecting rod, crank, crank bearing and thrust washers

Spindle length: 55.900mm

THK washer: 0.500mm

Fits on :

KAWASAKI KX 250 F (KX250X) 2010

KAWASAKI KX 250 F (KX250Y) 2012

KAWASAKI KX 250 F (KX250Y) 2011

KAWASAKI KX 250 F (KX250Z) 2016

KAWASAKI KX 250 F (KX250Z) 2015

KAWASAKI KX 250 F (KX250Z) 2014

KAWASAKI KX 250 F (KX250Z) 2013

SHERCO 250 SE F-R FACTORY 2015

SHERCO 250 SE F-R FACTORY 2014

SHERCO 250 SE F-R RACING 2015

SHERCO 250 SE F-R RACING 2014

SHERCO 250 SEF-R FACTORY 2018

SHERCO 250 SEF-R FACTORY 2017

SHERCO 250 SEF-R FACTORY 2016

SHERCO 250 SEF-R RACING 2018

SHERCO 250 SEF-R RACING 2017

SHERCO 250 SEF-R RACING 2016

SHERCO 250 SEF-R SIX DAYS 2018

SHERCO 250 SEF-R SIX DAYS 2017

SHERCO 250 SEF-R SIX DAYS 2016

SHERCO 300 SE F-R FACTORY 2015

SHERCO 300 SE F-R FACTORY 2014

SHERCO 300 SE F-R RACING 2015

SHERCO 300 SE F-R RACING 2014

SHERCO 300 SEF-R FACTORY 2018

SHERCO 300 SEF-R FACTORY 2017

SHERCO 300 SEF-R FACTORY 2016

SHERCO 300 SEF-R RACING 2018

SHERCO 300 SEF-R RACING 2017

SHERCO 300 SEF-R RACING 2016

SHERCO 300 SEF-R SIX DAYS 2018

SHERCO 300 SEF-R SIX DAYS 2017

SHERCO 300 SEF-R SIX DAYS 2016
