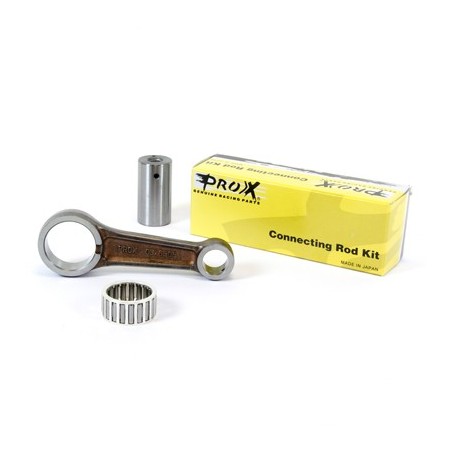

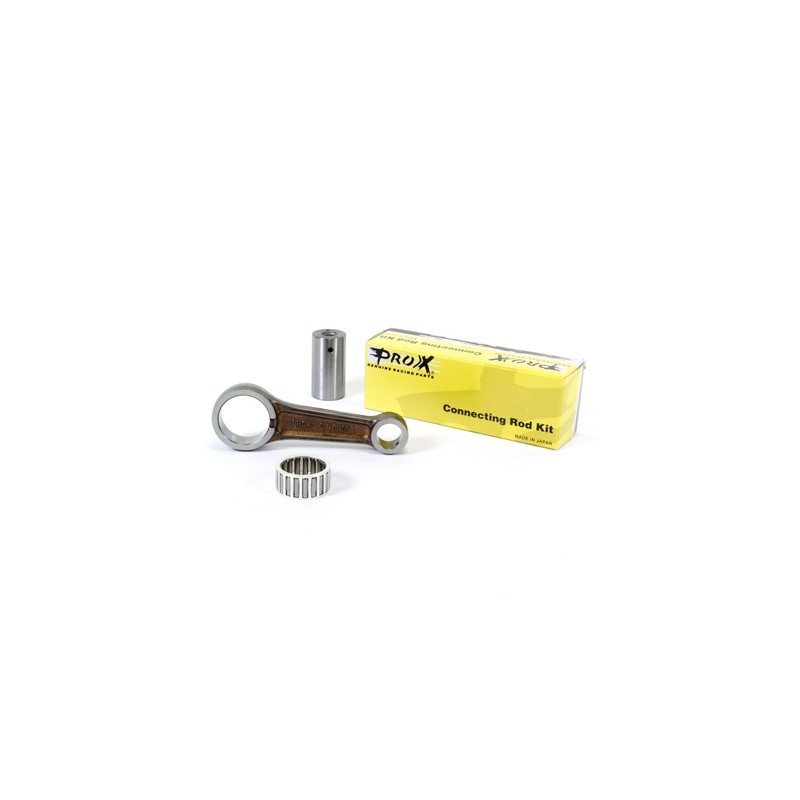

PROX offers you this complete connecting rod kit for your HUSQVARNA TC/TE/TXC/SMR 510. This complete package will enable you to refurbish your crankshaft, which may have some play from top to bottom. Rather than replacing the complete crankshaft, you'll often just need to change the connecting rod. This connecting rod is a cast model sold complete with needle cage, anti-friction shims and crankpin. It has the same original dimensions. No adaptation is required. To change a connecting rod, you'll need a press, a balancing bench and a little patience. If you don't have the equipment to do this, you can send us your crankshaft so we can do the fitting ourselves. You can also e-mail us for a quote. All connecting rod dimensions are given below.

Technical data :

Center distance (mm) : 110

Short side bore (mm): 20

Connecting rod head bore (mm): 38

Bore width short side (mm): 18

Connecting-rod bore width (mm): 18

Crank pin Ø (mm): 30

Crankpin length (mm): 56.5

Short-side bearing (mm) :

Connecting rod head bearing (mm) :

Washers (mm): No

Fits on :

HUSQVARNA TC 510 2005

HUSQVARNA TC 510 2006

HUSQVARNA TC 510 2007

HUSQVARNA TC 510 2008

HUSQVARNA TC 510 2009

HUSQVARNA TC 510 2010

HUSQVARNA TE 510 2005

HUSQVARNA TE 510 2006

HUSQVARNA TE 510 2007

HUSQVARNA TE 510 2008

HUSQVARNA TE 510 2009

HUSQVARNA TE 510 2010

HUSQVARNA TXC 510 2005

HUSQVARNA TXC 510 2006

HUSQVARNA TXC 510 2007

HUSQVARNA TXC 510 2008

HUSQVARNA TXC 510 2009

HUSQVARNA TXC 510 2010

HUSQVARNA SMR 510 2005

HUSQVARNA SMR 510 2006

HUSQVARNA SMR 510 2007

HUSQVARNA SMR 510 2008

HUSQVARNA SMR 510 2009

HUSQVARNA SMR 510 2010
