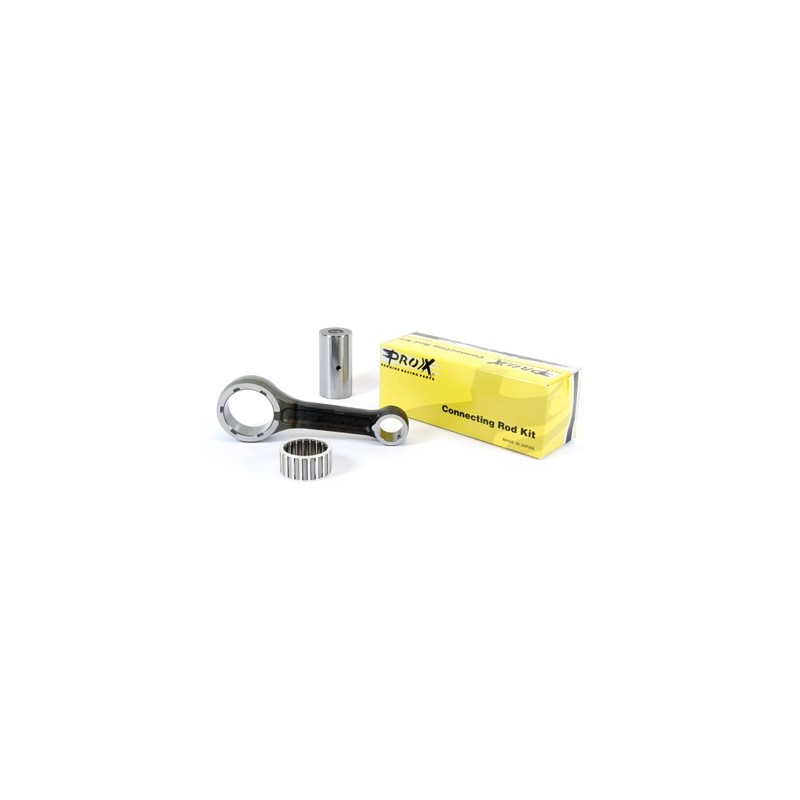

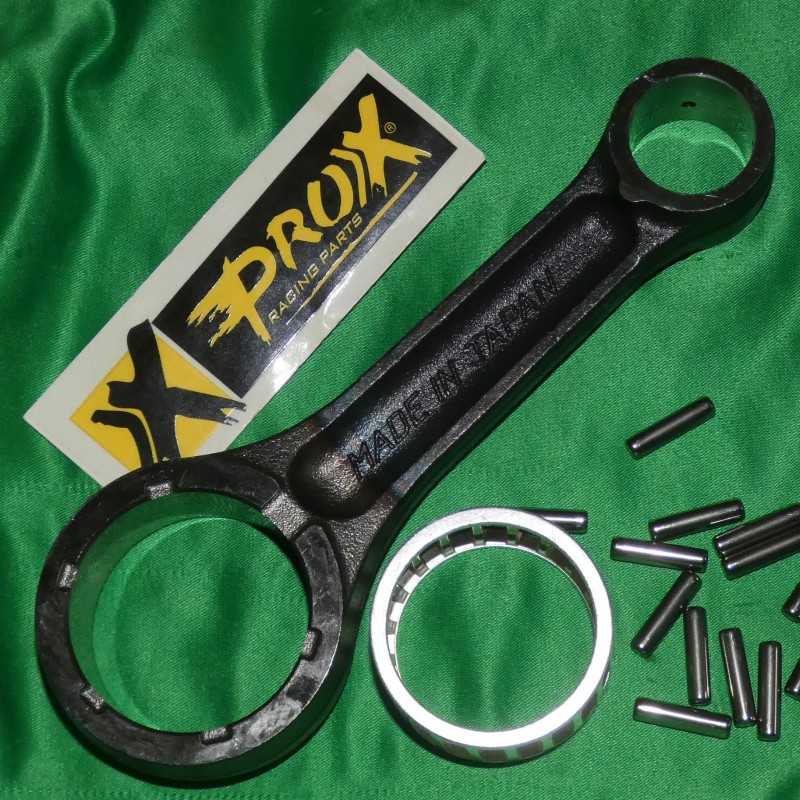

PROX offers you this complete connecting rod kit for your HONDAFMX 650, SLR 650, NX 650 and XR 650 L. This complete package will enable you to refurbish your crankshaft, which may have some play from top to bottom. Rather than replacing the entire crankshaft, you'll often just need to change the connecting rod. This connecting rod is a cast model sold with its connecting-rod needle cage, anti-friction shims and crank pin. It has the same original dimensions. No adaptation is required. To change a connecting rod, you'll need a press, a balancing bench and a little patience. If you don't have the equipment to do this, you can send us your crankshaft so we can do the fitting ourselves. You can also e-mail us for a quote. All connecting rod dimensions are given below.

Technical data :

Center distance (mm) : 132

Short side bore (mm): 24

Connecting rod head bore (mm): 45

Bore width short side (mm): 23

Connecting-rod bore width (mm): 23

Crank pin Ø (mm): 36

Crankpin length (mm): 71

Short-side bearing (mm) :

Connecting rod head bearing (mm) :

Washers (mm): No

Fits on :

HONDA FMX 650 FUNMOTO (RD12) 2006

HONDA FMX 650 FUNMOTO (RD12) 2005

HONDA NX 650 DOMINATOR (RD02) 1994

HONDA NX 650 DOMINATOR (RD02) 1993

HONDA NX 650 DOMINATOR (RD02) 1992

HONDA NX 650 DOMINATOR (RD02) 1991

HONDA NX 650 DOMINATOR (RD02) 1990

HONDA NX 650 DOMINATOR (RD02) 1989

HONDA NX 650 DOMINATOR (RD02) 1988

HONDA NX 650 DOMINATOR (RD08) 1999

HONDA NX 650 DOMINATOR (RD08) 1998

HONDA NX 650 DOMINATOR (RD08) 1997

HONDA NX 650 DOMINATOR (RD08) 1996

HONDA NX 650 DOMINATOR (RD08) 1995

HONDA NX 650 DOMINATOR 2 (RD02) 1990

HONDA SLR 650 (RD09) 1998

HONDA SLR 650 (RD09) 1997

HONDA XR 650 L (RD06) 2000

HONDA XR 650 L (RD06) 1999

HONDA XR 650 L (RD06) 1998

HONDA XR 650 L (RD06) 1997

HONDA XR 650 L (RD06) 1996

HONDA XR 650 L (RD06) 1995

HONDA XR 650 L (RD06) 1994

HONDA XR 650 L (RD06) 1993
