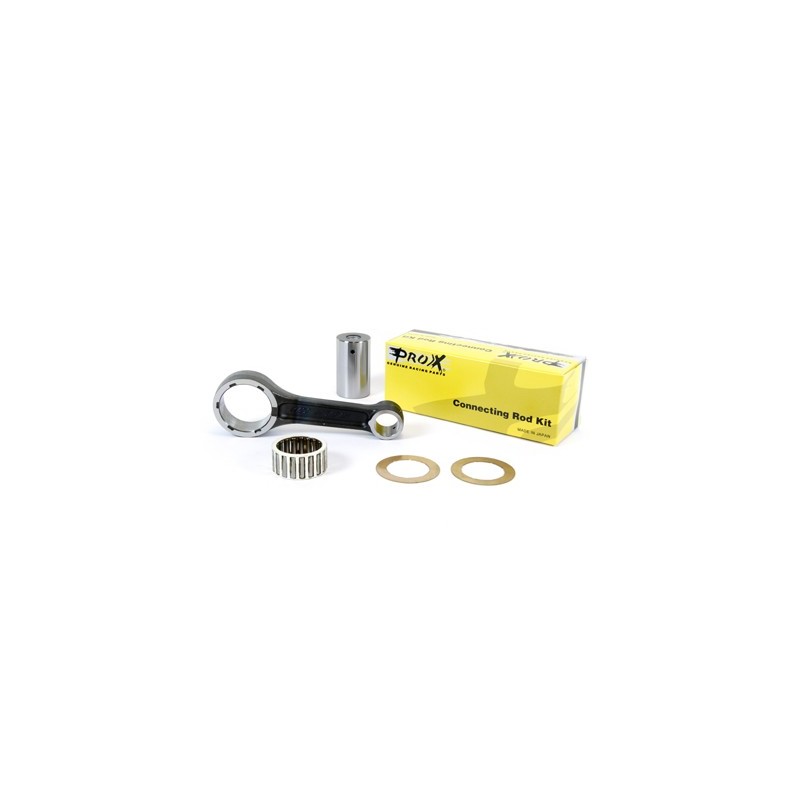

PROX offers you this complete connecting rod kit for your HONDA XL/XR 600 R and XBR 500. This complete package will enable you to refurbish your crankshaft, which may have some play from top to bottom. Rather than replacing the complete crankshaft, you'll often just need to change the connecting rod. This connecting rod is a cast model sold with its connecting-rod needle cage, anti-friction shims and crank pin. It has the same original dimensions. No adaptation is required. To change a connecting rod, you'll need a press, a balancing bench and a little patience. If you don't have the equipment to do this, you can send us your crankshaft so we can do the fitting ourselves. You can also e-mail us for a quote. All connecting rod dimensions are given below.

Technical data :

Center distance (mm) : 134

Small pin bore (mm): 24

Connecting rod head bore (mm): 48

Small pin bore width (mm): 22.95

Connecting-rod bore width (mm): 22.95

Crankpin Ø (mm): 38

Crankpin length (mm): 64.9

Small pin bearing (mm): Ring

Connecting rod bearing (mm): 38 x 48 x 23

Washers (mm): 1

Fits on :

HONDA GB 500 CLUBMAN (PC16) 1990

HONDA GB 500 CLUBMAN (PC16) 1989

HONDA NX 500 DOMINATOR (PD08) 1989

HONDA NX 500 DOMINATOR (PD08) 1988

HONDA XBR 500 S (PC15) 1988

HONDA XL 600 L PARIS DAKAR (PD03) 1984

HONDA XL 600 L PARIS DAKAR (PD03) 1983

HONDA XL 600 LM PARIS DAKAR (PD04) 1987

HONDA XL 600 LM PARIS DAKAR (PD04) 1986

HONDA XL 600 LM PARIS DAKAR (PD04) 1985

HONDA XL 600 R (PD03) 1987

HONDA XL 600 R (PD03) 1986

HONDA XL 600 R (PD03) 1985

HONDA XL 600 R (PD03) 1984

HONDA XL 600 R (PD03) 1983

HONDA XL 600 RM (PD04) 1986

HONDA XR 600 R (PE04) 1998

HONDA XR 600 R (PE04) 1997

HONDA XR 600 R (PE04) 1996

HONDA XR 600 R (PE04) 1995

HONDA XR 600 R (PE04) 1994

HONDA XR 600 R (PE04) 1993

HONDA XR 600 R (PE04) 1992

HONDA XR 600 R (PE04) 1991

HONDA XR 600 R (PE04) 1990

HONDA XR 600 R (PE04) 1989

HONDA XR 600 R (PE04) 1988

HONDA XR 600 R (PE04) 1987

HONDA XR 600 R (PE04) 1986

HONDA XR 600 R (PE04) 1985
