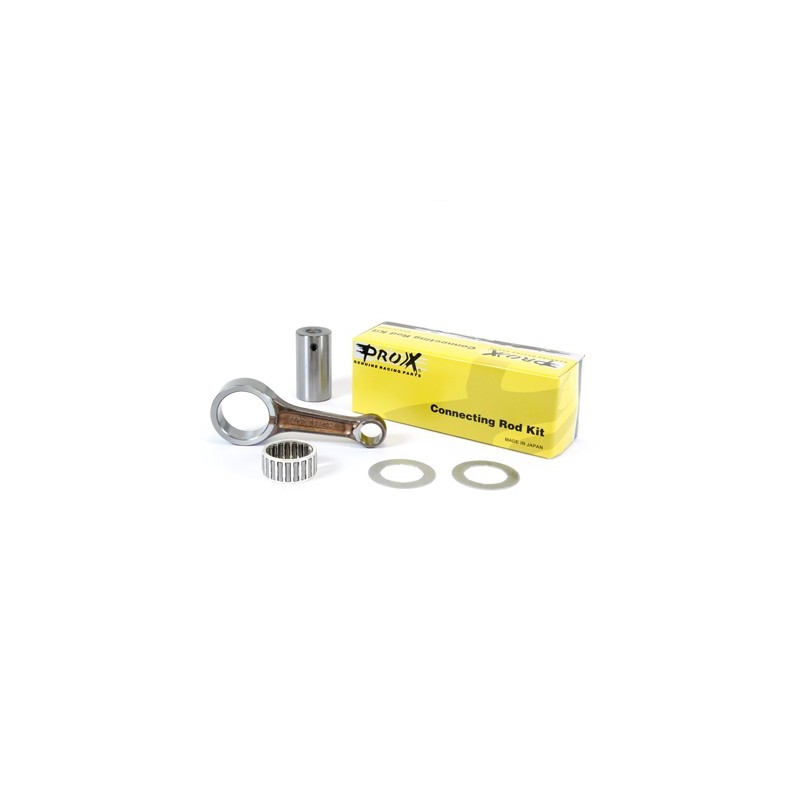

PROX offers you this complete connecting rod kit for your HONDA CRF 450 R/RX. This complete package will enable you to refurbish your crankshaft, which may have some play from top to bottom. Rather than changing the complete crankshaft, you'll often just need to change the connecting rod. This connecting rod is a cast model sold with its connecting-rod needle cage, anti-friction shims and crank pin. It has the same original dimensions. No adaptation is required. To change a connecting rod, you'll need a press, a balancing bench and a little patience. If you don't have the equipment to do this, you can send us your crankshaft so we can do the fitting ourselves. You can also e-mail us for a quote. All connecting rod dimensions are given below.

Technical data :

Center distance (mm): 105.5

Short side bore (mm): 19

Connecting rod head bore (mm): 42

Bore width short side (mm): 18

Connecting-rod bore width (mm): 19.75

Crankpin Ø (mm): 34

Crankpin length (mm): 64.9

Short-side bearing (mm) :

Connecting rod head bearing (mm) :

Washers (mm): 2

Fits on :

HM CRE-F 450 X 2014

HM CRE-F 450 X 2013

HM CRE-F 450 X 2012

HM CRE-F 450 X 2011

HM CRE-F 450 X 2010

HM CRE-F 450 X 2009

HM CRE-F 450 X 2008

HM CRE-F 450 X 2007

HM CRE-F 450 X 2006

HM CRE-F 450 X 2005

HM CRM F450X SUPERMOTO 2013

HM CRM F450X SUPERMOTO 2012

HM CRM F450X SUPERMOTO 2011

HM CRM F450X SUPERMOTO 2010

HM CRM F450X SUPERMOTO 2009

HM CRM F450X SUPERMOTO 2008

HM CRM F450X SUPERMOTO 2007

HM CRM F450X SUPERMOTO 2006

HM CRM F450X SUPERMOTO 2005

HM CRM-F450X 2014

HM CRM-F450X 2013

HM CRM-F450X 2012

HM CRM-F450X 2011

HM CRM-F450X 2010

HM CRM-F450X 2009

HM CRM-F450X 2008

HM CRM-F450X 2007

HM CRM-F450X 2006

HM CRM-F450X 2005

HM CRM-F450X 2004

HM CRM-F450X 2003

HM CRM-F450X 2002

HONDA CRF 450 X (PE06) 2014

HONDA CRF 450 X (PE06) 2013

HONDA CRF 450 X (PE06) 2012

HONDA CRF 450 X (PE06) 2011

HONDA CRF 450 X (PE06) 2010

HONDA CRF 450 X (PE06) 2009

HONDA CRF 450 X (PE06) 2008

HONDA CRF 450 X (PE06) 2007

HONDA CRF 450 X (PE06) 2006

HONDA CRF 450 X (PE06) 2005

HONDA TRX 450 R SPORTRAX ELECTRIC START 2WD (TE32) 2008

HONDA TRX 450 R SPORTRAX ELECTRIC START 2WD (TE32) 2007

HONDA TRX 450 R SPORTRAX ELECTRIC START 2WD (TE32) 2006

HONDA TRX 450 R SPORTRAX KICK START 2WD (TE32) 2008

HONDA TRX 450 R SPORTRAX KICK START 2WD (TE32) 2007

HONDA TRX 450 R SPORTRAX KICK START 2WD (TE32) 2006
