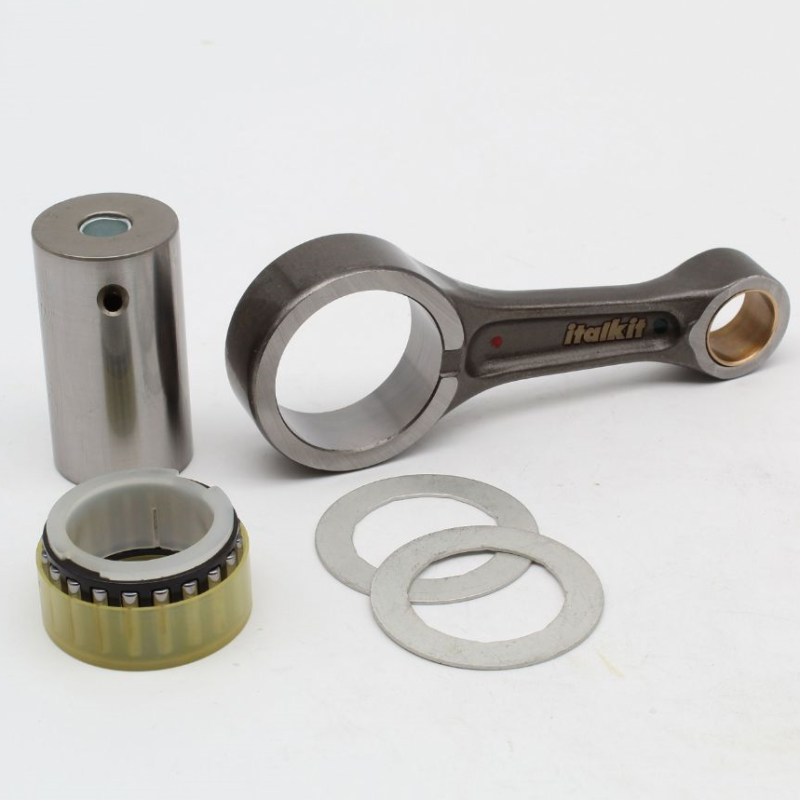

ITALKIT offers you this complete connecting rod kit for your HONDA CRF 450 R. This complete package will enable you to refurbish your crankshaft, which may have some play from top to bottom. Rather than changing the complete crankshaft, you'll often just need to change the connecting rod. This connecting rod is a cast model sold with its connecting-rod needle cage, anti-friction shims and crank pin. It has the same original dimensions. No adaptation is required. To change a connecting rod, you'll need a press, a balancing bench and a little patience. If you don't have the equipment to do this, you can send us your crankshaft so we can do the fitting ourselves. You can also e-mail us for a quote. All connecting rod dimensions are given below.

Technical data :

Center distance (mm) : 102

Small pin bore (mm): 19

Connecting rod head bore (mm): 41

Small pin bore width (mm) :

Connecting-rod bore width (mm): 19.8

Crankpin Ø (mm): 33

Crankpin length (mm): 60.9

Small pin bearing (mm): 19

Connecting-rod bearing (mm): 33 x 41 x 20

Washers (mm): 0.95

Fits on :

HONDA CRF 450 2009

HONDA CRF 450 2010

HONDA CRF 450 2011

HONDA CRF 450 2012

HONDA CRF 450 2013

HONDA CRF 450 2014

HONDA CRF 450 2015

HONDA CRF 450 2016
