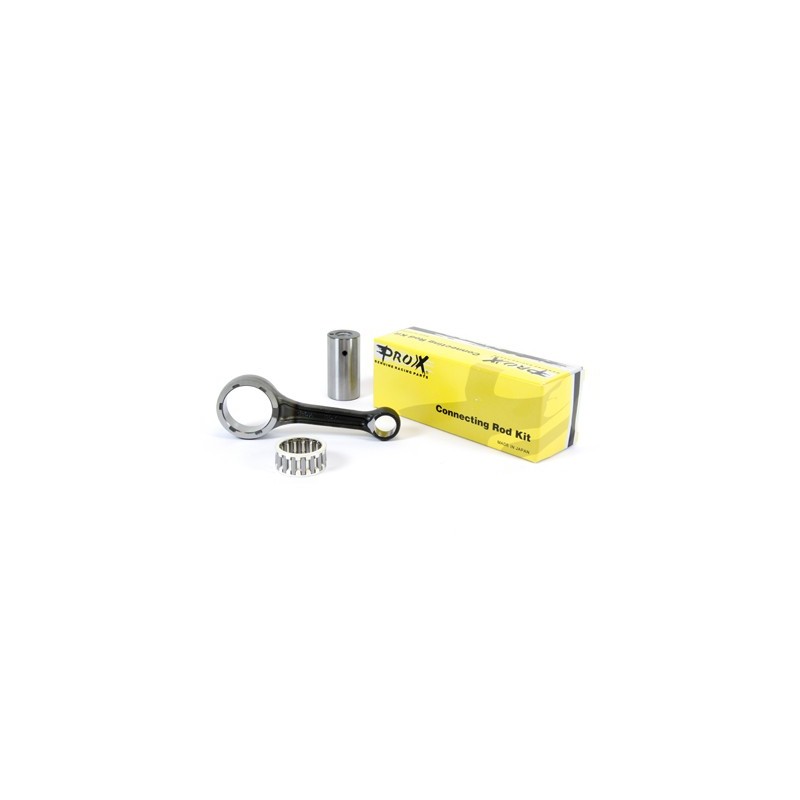

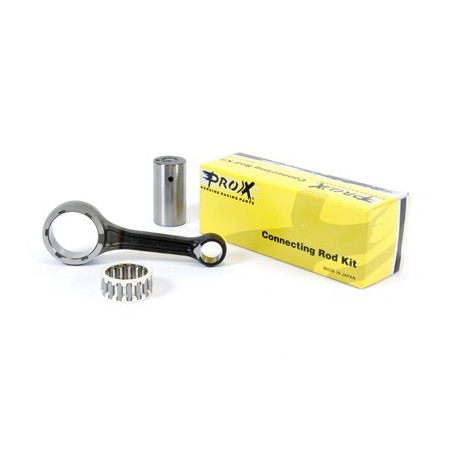

PROX offers you this complete connecting rod kit for your HONDA XR 400 R. This complete package will enable you to refurbish your crankshaft, which may have some play from top to bottom. Rather than changing the complete crankshaft, you'll often just need to change the connecting rod. This connecting rod is a cast model sold with its connecting-rod needle cage, anti-friction shims and crank pin. It has the same original dimensions. No adaptation is required. To change a connecting rod, you'll need a press, a balancing bench and a little patience. If you don't have the equipment to do this, you can send us your crankshaft so we can do the fitting ourselves. You can also e-mail us for a quote. All connecting rod dimensions are given below.

Technical data :

Center distance (mm): 122.6

Small pin bore (mm): 20

Connecting rod head bore (mm): 43

Small pin bore width (mm): 20

Connecting-rod bore width (mm): 20

Crank pin Ø (mm): 34

Crankpin length (mm): 65.9

Small pin bearing (mm): Ring

Connecting rod bearing (mm): 34 x 43 x 20

Washers (mm): No

Fits on :

HONDA XR 400 R 1996

HONDA XR 400 R 1997

HONDA XR 400 R 1998

HONDA XR 400 R 1999

HONDA XR 400 R 2000

HONDA XR 400 R 2001

HONDA XR 400 R 2002

HONDA XR 400 R 2003

HONDA XR 400 R 2004
