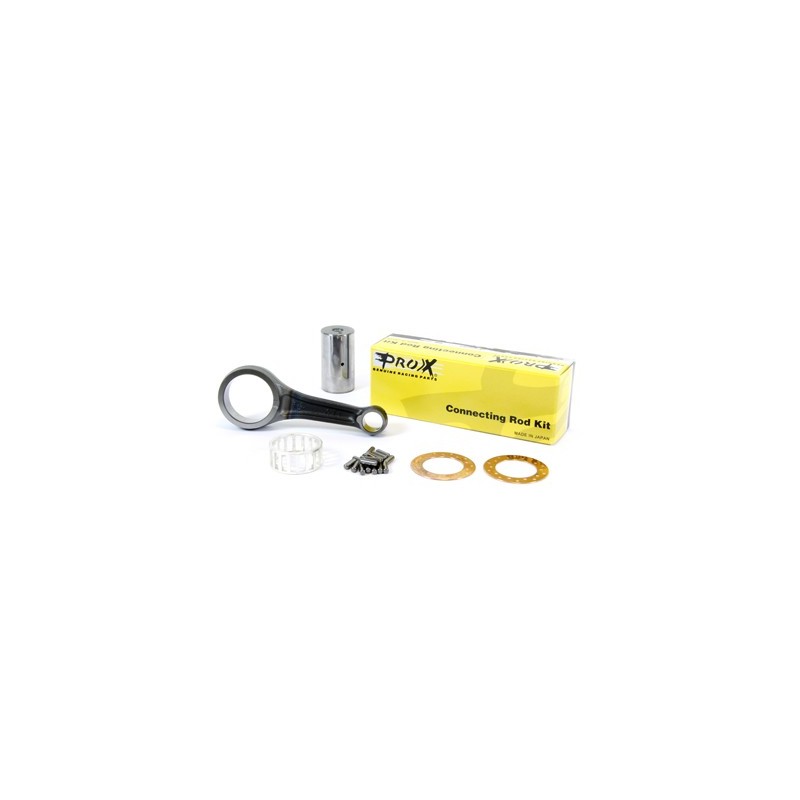

PROX offers you this complete connecting rod kit for your HONDA CRF 250 R/X. This complete package will enable you to refurbish your crankshaft, which may have some play from top to bottom. Rather than changing the complete crankshaft, you'll often just need to change the connecting rod. This connecting rod is a cast model sold with its connecting-rod needle cage, anti-friction shims and crank pin. It has the same original dimensions. No adaptation is required. To change a connecting rod, you'll need a press, a balancing bench and a little patience. If you don't have the equipment to do this, you can send us your crankshaft so we can do the fitting ourselves. You can also e-mail us for a quote. All connecting rod dimensions are given below.

Technical data :

Center distance: 90mm

Short side bore: 16mm

Connecting rod head bore: 38mm

Short side bore width: 15mm

Connecting-rod bore width: 17.8mm

Crank pin Ø: 30mm

Crankpin length: 53mm

Short-side bearing :

Connecting rod head bearing:

Washers: 1mm

Fits on :

HM CRE 250 F 2013

HM CRE 250 F 2012

HM CRE 250 F 2011

HM CRE 250 F 2010

HM CRE 250 F 2009

HM CRE 250 F 2008

HM CRE 250 F 2007

HM CRE 250 X 2013

HM CRE 250 X 2012

HM CRE 250 X 2011

HM CRE 250 X 2010

HM CRE 250 X 2009

HM CRE 250 X 2008

HM CRE 250 X 2007

HM CRE 250 X 2006

HM CRE 250 X 2005

HM CRE 250 X 2004

HM CRE 250 2008

HM CRE-F 250 X 2013

HM CRE-F 250 X 2012

HM CRE-F 250 X 2011

HM CRE-F 250 X 2010

HM CRE-F 250 X 2009

HM CRE-F 250 X 2008

HM CRE-F 250 X 2007

HM CRE-F 250 X 2006

HM CRE-F 250 X 2005

HM CRE-F 250 X 2004

HM CRM-F 250 R 2013

HM CRM-F 250 R 2012

HM CRM-F 250 R 2011

HM CRM-F 250 R 2010

HM CRM-F 250 X 2013

HM CRM-F 250 X 2012

HM CRM-F 250 X 2011

HM CRM-F 250 X 2010

HM CRM-F 250 X 2009

HM CRM-F 250 X 2008

HM CRM-F 250 X 2007

HONDA CRF 250 R (ME10) 2017

HONDA CRF 250 R (ME10) 2016

HONDA CRF 250 R (ME10) 2015

HONDA CRF 250 R (ME10) 2014

HONDA CRF 250 R (ME10) 2013

HONDA CRF 250 R (ME10) 2012

HONDA CRF 250 R (ME10) 2011

HONDA CRF 250 R (ME10) 2010

HONDA CRF 250 R (ME10) 2009

HONDA CRF 250 R (ME10) 2008

HONDA CRF 250 R (ME10) 2007

HONDA CRF 250 R (ME10) 2006

HONDA CRF 250 R (ME10) 2005

HONDA CRF 250 R (ME10) 2004

HONDA CRF 250 X (ME11) 2013

HONDA CRF 250 X (ME11) 2012

HONDA CRF 250 X (ME11) 2011

HONDA CRF 250 X (ME11) 2010

HONDA CRF 250 X (ME11) 2009

HONDA CRF 250 X (ME11) 2008

HONDA CRF 250 X (ME11) 2007

HONDA CRF 250 X (ME11) 2006

HONDA CRF 250 X (ME11) 2005

HONDA CRF 250 X (ME11) 2004
