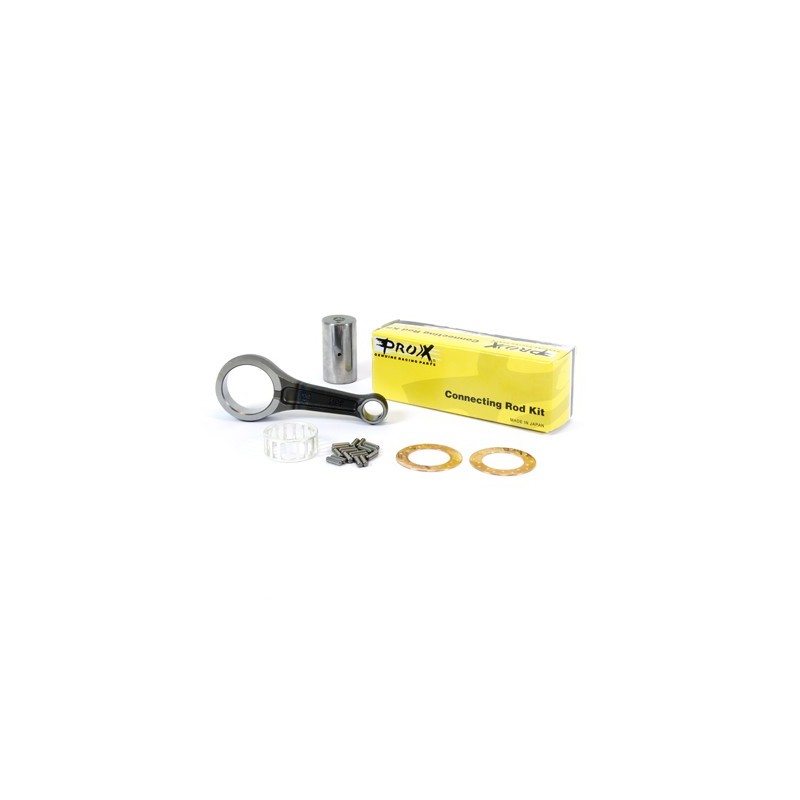

PROX offers you this complete connecting rod kit for your HONDA. This complete package will enable you to refurbish your crankshaft, which may have some play from top to bottom. Rather than changing the complete crankshaft, you'll often just need to change the connecting rod. This connecting rod is a cast model sold with its connecting-rod needle cage, anti-friction shims and crank pin. It has the same original dimensions. No adaptation is required. To change a connecting rod, you'll need a press, a balancing bench and a little patience. If you don't have the equipment to do this, you can send us your crankshaft so we can do the fitting ourselves. You can also e-mail us for a quote. All connecting rod dimensions are given below.

Technical data :

Center distance (mm): 102.5

Short side bore (mm): 17

Connecting rod head bore (mm): 41

Bore width short side (mm): 17.8

Connecting-rod bore width (mm): 17.8

Crankpin Ø (mm): 32

Crankpin length (mm): 58

Short-side bearing (mm) :

Connecting rod head bearing (mm) :

Washers (mm): 1

Fits on :

HONDA XR 250 TORNADO 2001

HONDA XR 250 TORNADO 2002

HONDA XR 250 TORNADO 2003

HONDA XR 250 TORNADO 2004

HONDA XR 250 TORNADO 2005

HONDA XR 250 TORNADO 2006

HONDA XR 250 TORNADO 2007

HONDA XR 250 TORNADO 2008

HONDA XR 250 TORNADO 2009

HONDA XR 250 TORNADO 2010

HONDA XR 250 TORNADO 2011

HONDA XR 250 TORNADO 2012

HONDA CBF 250 2004

HONDA CBF 250 2005

HONDA CBF 250 2006

HONDA CBF 250 2007
