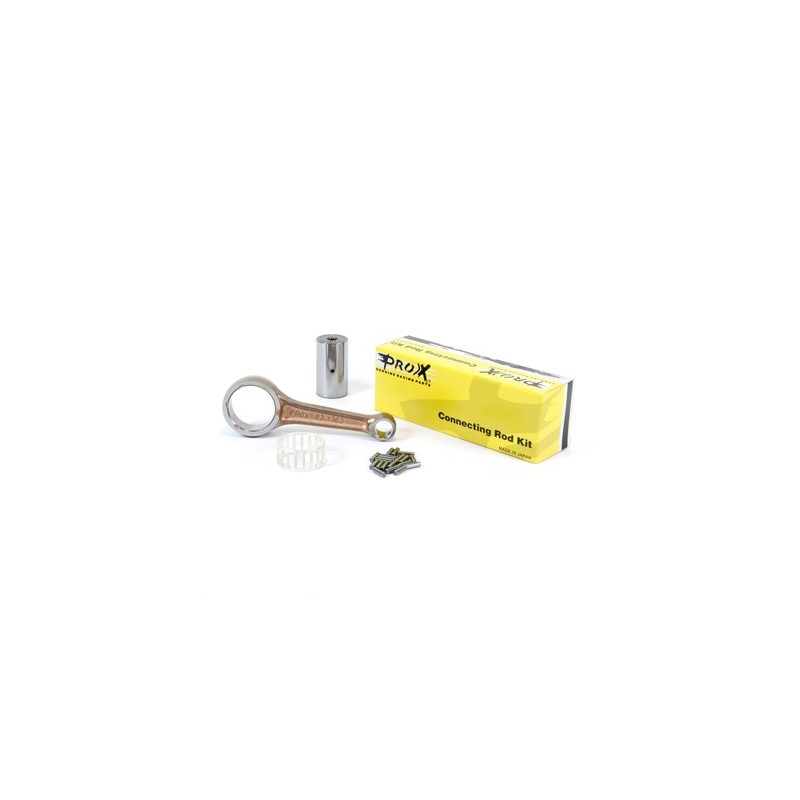

PROX offers you this complete connecting rod kit for your HONDA CRF 230 F. This complete package will enable you to refurbish your crankshaft, which may have some play from top to bottom. Rather than changing the complete crankshaft, you'll often just need to change the connecting rod. This connecting rod is a cast model sold with its connecting-rod needle cage, anti-friction shims and crank pin. It has the same original dimensions. No adaptation is required. To change a connecting rod, you'll need a press, a balancing bench and a little patience. If you don't have the equipment to do this, you can send us your crankshaft so we can do the fitting ourselves. You can also e-mail us for a quote. All connecting rod dimensions are given below.

Technical data :

Center distance (mm) : 110

Short side bore (mm): 15

Connecting rod head bore (mm): 38

Bore width short side (mm): 18

Connecting-rod bore width (mm): 18

Crank pin Ø (mm): 30

Crankpin length (mm): 54

Short-side bearing (mm) :

Connecting rod head bearing (mm) :

Washers (mm): No

Fits on :

HONDA CRF 230 F 2003

HONDA CRF 230 F 2004

HONDA CRF 230 F 2005

HONDA CRF 230 F 2006

HONDA CRF 230 F 2007

HONDA CRF 230 F 2008

HONDA CRF 230 F 2009

HONDA CRF 230 F 2010

HONDA CRF 230 F 2011

HONDA CRF 230 F 2012

HONDA CRF 230 F 2013

HONDA CRF 230 F 2014

HONDA CRF 230 F 2015

HONDA CRF 230 F 2016

HONDA CRF 230 F 2017

HONDA CRF 230 F 2018

HONDA CRF 230 F 2019
