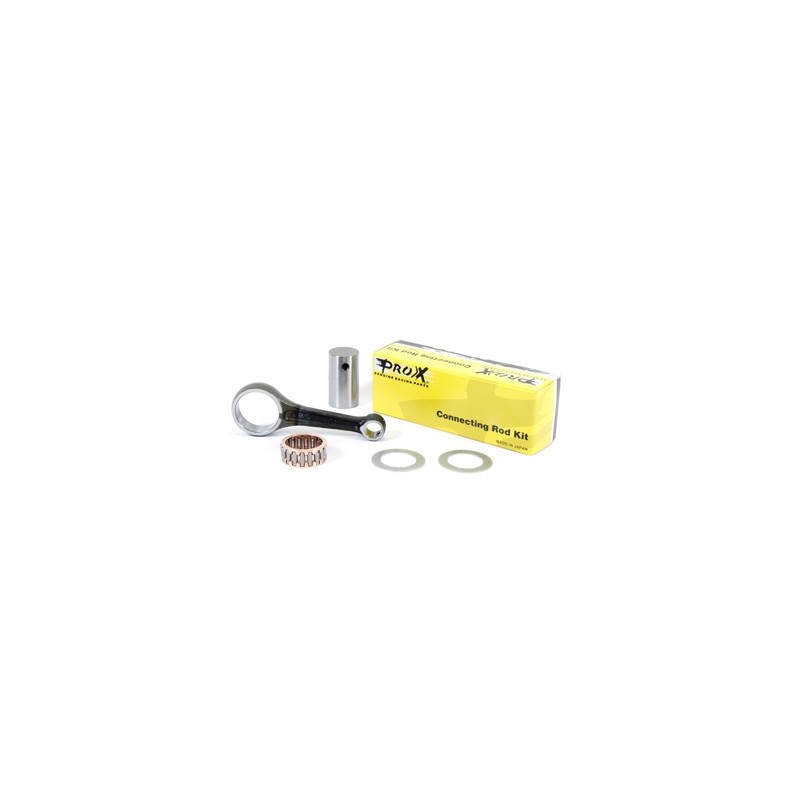

PROX offers you this complete connecting rod kit for your HONDA XL125S and HONDA XL185S. This complete package will enable you to refurbish your crankshaft, which may have some play from top to bottom. Rather than replacing the complete crankshaft, you'll often just need to change the connecting rod. This connecting rod is a cast model sold with its connecting-rod needle cage, anti-friction shims and crank pin. It has the same original dimensions. No adaptation is required. To change a connecting rod, you'll need a press, a balancing bench and a little patience. If you don't have the equipment to do this, you can send us your crankshaft so we can do the fitting ourselves. You can also e-mail us for a quote. All connecting rod dimensions are given below.

Technical data :

Center distance: 103.5mm

Short side bore: 15mm

Connecting rod head bore: 38mm

Small side bore width: 16mm

Connecting-rod bore width: 16mm

Crank pin Ø: 30mm

Crankpin length: 54mm

Small side bearing :

Connecting-rod bearing :

Washers: No

Fits on :

HONDA ATC 200 ES (TB05) 200 1985

HONDA ATC 200 ES (TB05) 200 1984

HONDA ATC 200 S (TB05) 200 1986

HONDA ATC 200 S (TB05) 200 1985

HONDA ATC 200 S (TB05) 200 1984

HONDA ATC 200 X (TB05) 200 1987

HONDA ATC 200 X (TB05) 200 1986

HONDA ATC 200 X (TB05) 200 1985

HONDA ATC 200 X (TB05) 200 1984

HONDA ATC 200 X (TB05) 200 1983

HONDA XL 125 S (L125S) 125 1984

HONDA XL 125 S (L125S) 125 1983

HONDA XL 125 S (L125S) 125 1982

HONDA XL 125 S (L125S) 125 1981

HONDA XL 125 S (L125S) 125 1980

HONDA XL 125 S (L125S) 125 1979

HONDA XR 200 R (ME04) 200 1983

HONDA XR 200 R (ME04) 200 1982

HONDA XR 200 R (ME05) 200 1984
