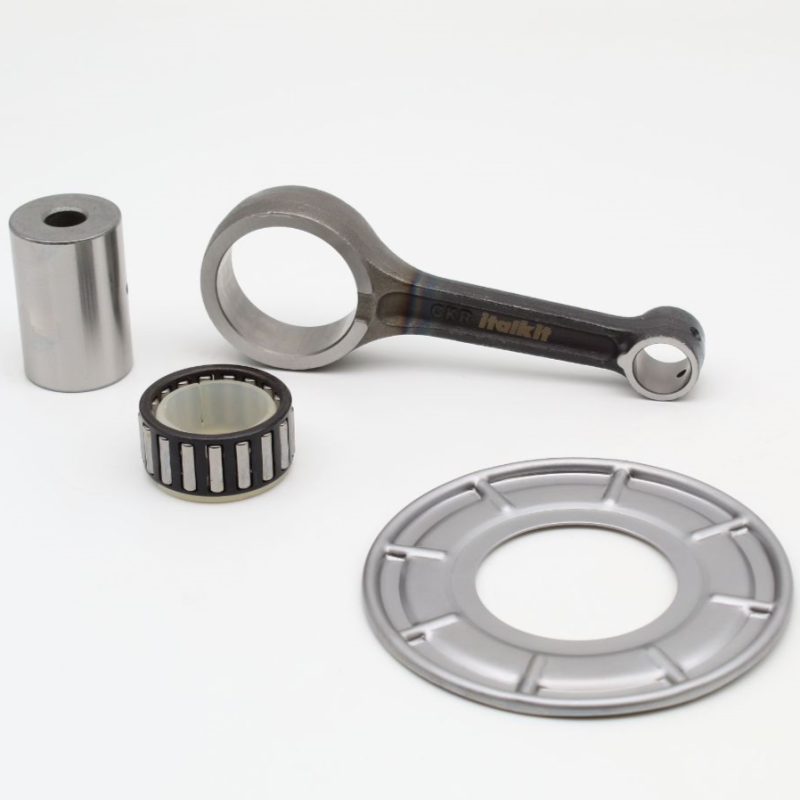

ITALKIT offers you this complete connecting rod kit for your Honda @-SH-Scoopy 125-150 4T with ITALKIT crankshaft (16 mm). This connecting rod is a cast model sold with its needle cage, anti-friction shims and crank pin. It has the same original dimensions. No adaptation is required. To change a connecting rod, you'll need a press, a balancing bench and a little patience. If you don't have the equipment to do this, you can send us your crankshaft so we can do the fitting ourselves. You can also e-mail us for a quote. All connecting rod dimensions are given below.

Technical data :

Center distance: 95mm

Small pin bore: 14mm

Connecting rod head bore: 36mm

Small pin bore width :

Connecting-rod bore width: 16mm

Crankpin Ø: 28mm

Crankpin length: 42.5mm

Small pin bearing: 14mm

Connecting-rod bearing: 28 x 36 x 15mm

Fits on :

Honda @-SH-Scoopy 125 4T

Honda @-SH-Scoopy 150 4T
