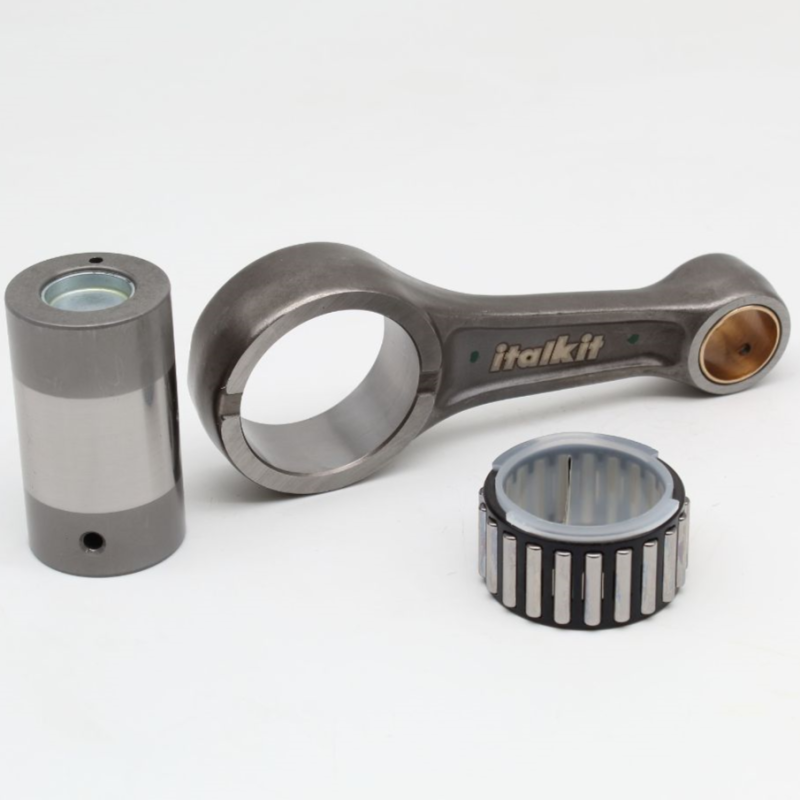

ITALKIT offers you this complete connecting rod kit for your Gas Gas 400-450, Kawasaki KFX/KLX-R 400, Suzuki DRZ/LTZ 400. This complete pack will enable you to refurbish your crankshaft, which may have some play from top to bottom. Rather than replacing the entire crankshaft, you'll often just need to change the connecting rod. This connecting rod is a cast model sold complete with needle cage, anti-friction shims and crankpin. It has the same original dimensions. No adaptation is required. To change a connecting rod, you'll need a press, a balancing bench and a little patience. If you don't have the equipment to do this, you can send us your crankshaft so we can do the fitting ourselves. You can also e-mail us for a quote. All connecting rod dimensions are given below.

Technical data :

Center distance: 107mm

Small pin bore: 20mm

Connecting rod head bore: 43mm

Small pin bore width: 20mm

Connecting-rod bore width: 22mm

Crankpin Ø: 35mm

Crankpin length: 61.8mm

Small pin bearing: 20mm

Connecting rod bearing (mm): 35 x 43 x 22

Washers: No

Fits on :

GAS GAS 400

GAS GAS 450

KAWASAKI KFX 400 2003

KAWASAKI KFX 400 2004

KAWASAKI KFX 400 2005

KAWASAKI KFX 400 2006

KAWASAKI KLX-R 400 2003

SUZUKI DRZ 400 2000

SUZUKI DRZ 400 2001

SUZUKI DRZ 400 2002

SUZUKI DRZ 400 2003

SUZUKI DRZ 400 2004

SUZUKI DRZ 400 2005

SUZUKI DRZ 400 2006

SUZUKI DRZ 400 2007

SUZUKI DRZ 400 2008

SUZUKI DRZ 400 2009

SUZUKI DRZ 400 2010

SUZUKI DRZ 400 2011

SUZUKI DRZ 400 2012

SUZUKI DRZ 400 2013

SUZUKI DRZ 400 2014

SUZUKI DRZ 400 2015

SUZUKI DRZ 400 2016

SUZUKI DRZ 400 2017

SUZUKI DRZ 400 2018

SUZUKI DRZ 400 2019

SUZUKI LTZ 400
