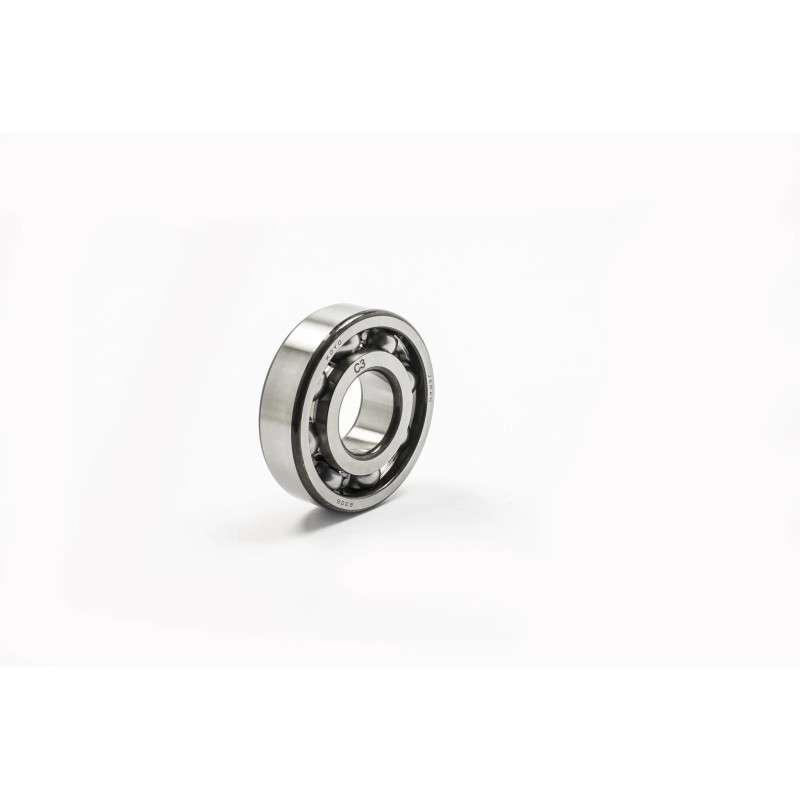

WOSSNER engine bearing 30 × 72 × 19 mm for YAMAHA WR 450 F, YFZ 450, YZ 426 F, YZ 450 F

Check before ordering

• Dimensions (inner × outer × width): 30 × 72 × 19 mm

WOSSNER offers this engine bearing for YAMAHA WR 450 F, YFZ 450, YZ 426 F, YZ 450 F, SUZUKI RM-Z 450 and GAS GAS EC 450 F from 1998 to 2017. The engine’s shafts run on ball or roller bearings in the cases. They carry heavy loads at high revs and eventually develop play.

What is this bearing made of?

Races and balls (or rollers) in hardened chrome steel, 100Cr6 type: a very hard steel that withstands the fatigue of millions of engine revolutions.

• Open bearing: unsealed, it is lubricated and cooled by the engine oil; clean oil is its best protection.
• C3 / C4 internal clearance: slightly more clearance than normal for a hot engine’s expansion; always refit the original clearance.
• Limit: it dislikes dust and old oil; running short of oil destroys it within minutes.

Why choose WOSSNER?

Wössner, the German company founded by a former racer, forges its own parts: design and manufacturing are controlled end to end.

When should you replace the bearings?

On competition bikes the main bearings are replaced at every bottom-end rebuild, at the hours recommended by the manufacturer. With the cases open, spin each bearing by hand: the slightest rough spot means it must go.

Specifications and fitting tips

• Application: Crankshaft
• Inside diameter: 30 mm
• Length: 19 mm
• Precision bearings

Cross-Mania tip: Heat the cases to remove and fit the bearings without forcing them, and replace the oil seals at the same time.

Also needed with this part

• Complete engine gasket kit : MOOSE 811595 · MOOSE 808595MSE
• 4-stroke engine oil : MOTUL 10W50 · LIQUI MOLY 10W40 1 L

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
GAS GAS EC 450 F 2015
GAS GAS EC 450 F 2014
GAS GAS EC 450 F 2013
SUZUKI RM-Z 450 2017
SUZUKI RM-Z 450 2016
SUZUKI RM-Z 450 2015
SUZUKI RM-Z 450 2014
SUZUKI RM-Z 450 2013
SUZUKI RM-Z 450 2012
SUZUKI RM-Z 450 2011
SUZUKI RM-Z 450 2010
SUZUKI RM-Z 450 2009
SUZUKI RM-Z 450 2008
YAMAHA WR 400 F 1999
YAMAHA WR 400 F 1998
YAMAHA WR 426 F 2002
YAMAHA WR 426 F 2001
YAMAHA WR 450 F 2009
YAMAHA WR 450 F 2008
YAMAHA WR 450 F 2007
YAMAHA WR 450 F 2006
YAMAHA WR 450 F 2005
YAMAHA WR 450 F 2004
YAMAHA WR 450 F 2003
YAMAHA YFZ 450 2012
YAMAHA YFZ 450 2009
YAMAHA YFZ 450 2008
YAMAHA YFZ 450 2007
YAMAHA YFZ 450 2006
YAMAHA YFZ 450 2005
YAMAHA YFZ 450 2004
YAMAHA YZ 400 F 1999
YAMAHA YZ 400 F 1998
YAMAHA YZ 426 F 2002
YAMAHA YZ 426 F 2001
YAMAHA YZ 426 F 2000
YAMAHA YZ 450 F 2013
YAMAHA YZ 450 F 2012
YAMAHA YZ 450 F 2011
YAMAHA YZ 450 F 2010
YAMAHA YZ 450 F 2009
YAMAHA YZ 450 F 2008
YAMAHA YZ 450 F 2007
YAMAHA YZ 450 F 2006
YAMAHA YZ 450 F 2005
YAMAHA YZ 450 F 2004
YAMAHA YZ 450 F 2003
