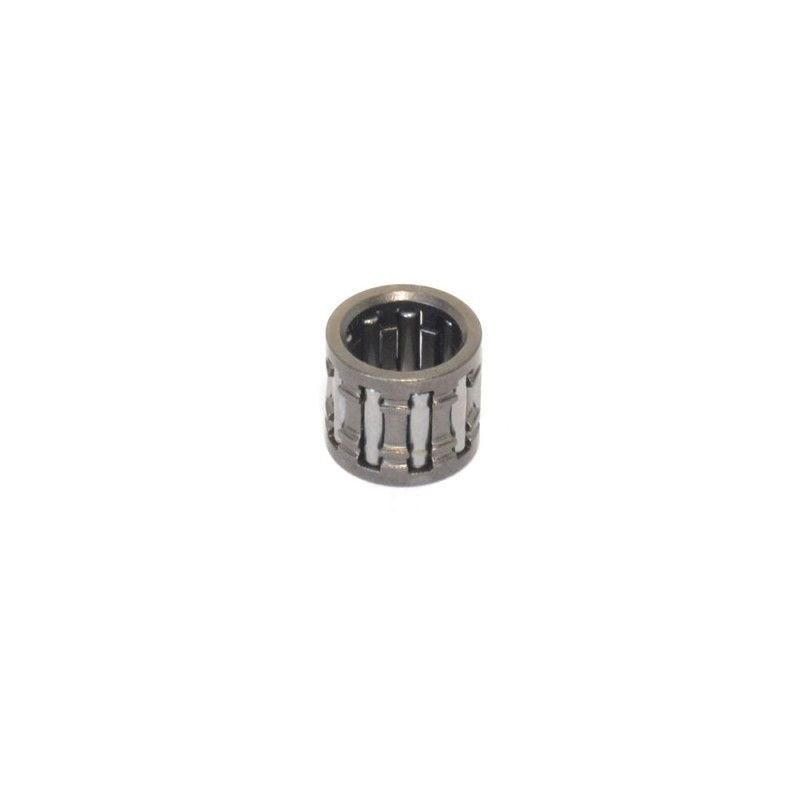

ATHENA Needle Bearing for YAMAHA YZ 80 1984-1992

The ATHENA MNB120170148 small-end needle bearing is designed for YAMAHA YZ 80 from 1984 to 1992. The small-end needle bearing lets the piston pin turn inside the connecting rod on fine steel needles. On a two-stroke, it is lubricated only by the premix: it wears quickly and, if it breaks, it destroys the piston and the cylinder.

Specifications

• Brand: ATHENA
• Manufacturer part number: MNB120170148
• EAN code: 8050043262035
• Dimensions: 12x17x14.8 mm
• Weight: 10 g
• Engine: 2-stroke

When to replace it?

• Play between the piston pin and the connecting rod.
• Needles blued or marked, or cage damaged.
• Metallic knocking from the top end.

At every piston change on a two-stroke, and as soon as play appears.

Fitting tips

1. Check the small-end bore and the piston pin: if they are marked, replace them.
2. Oil the bearing before fitting it.
3. Fit the pin and new circlips, gap opposite the notch in the piston.
4. Reassemble the top end with a new top end gasket kit.

Why ATHENA?

Athena, an Italian company founded in 1973 near Vicenza, designs gaskets, pistons and cylinder kits for motorcycles. An OEM supplier to KTM, Ducati, Fantic, Piaggio and Triumph and a partner of the MXGP world championship, it develops its parts on the test bench and on the track with racing teams.

Spare parts and items to plan

• Piston : WISECO · VERTEX
• Piston pin : WOSSNER
• Piston pin clips : WOSSNER
• Top-end gasket kit : ATHENA · INNTECK

Frequently asked questions

Which bearing should I choose?
The one that matches your engine's dimensions (inner diameter x outer diameter x width), given in the specifications.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
YAMAHA YZ 80 1992
YAMAHA YZ 80 1991
YAMAHA YZ 80 1990
YAMAHA YZ 80 1989
YAMAHA YZ 80 1988
YAMAHA YZ 80 1987
YAMAHA YZ 80 1986
YAMAHA YZ 80 1985
YAMAHA YZ 80 1984
