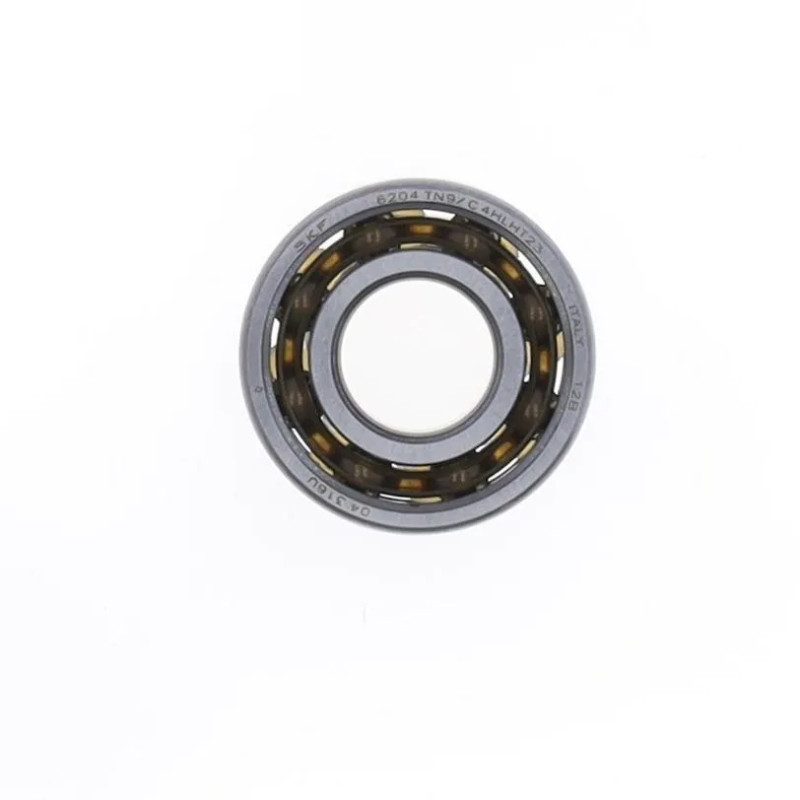

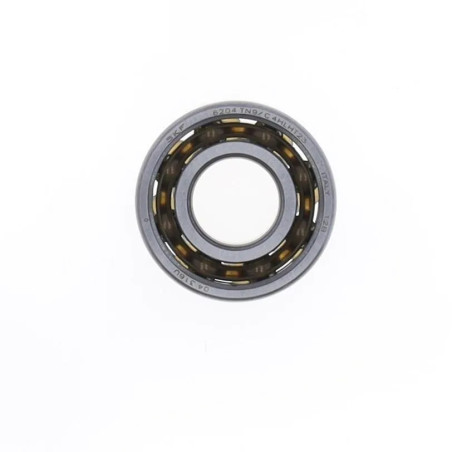

    ATHENA engine bearing 6204 C4 – 20 × 47 × 14 mm for YAMAHA DT 125 E, DT 125 LC, DT 125 MX, DT 125 R, DT 125 RE from 1986 to 2005
    ATHENA engine bearing 6204 C4 – 20 × 47 × 14 mm for YAMAHA DT 125 E, DT 125 LC, DT 125 MX, DT 125 R, DT 125 RE from 1986 to 2005

    ATHENA engine bearing 6204 C4 – 20 × 47 × 14 mm for YAMAHA DT 125 E, DT 125 LC, DT 125 MX, DT 125 R, DT 125 RE from 1986 to 2005

    Review (0)
    €10.90
    Tax Included
    Stock del proveedor, enviado en 2 a 5 días.

    Bearing: 6204 C4 – 20 × 47 × 14 mm

    An engine bearing: it lets a shaft (crank, gearbox, pump) turn without friction.

    Quantity :
    In stock

    Stock del proveedor, enviado en 2 a 5 días.

    Wishlist
    Write your review

      Check before ordering

      • Bearing: 6204 C4
      • Dimensions (inner × outer × width): 20 × 47 × 14 mm

      ATHENA offers this engine bearing for YAMAHA DT 125 E, DT 125 LC, DT 125 MX, DT 125 R, DT 125 RE from 1986 to 2005. The engine’s shafts run on ball or roller bearings in the cases. They carry heavy loads at high revs and eventually develop play.

      What is this bearing made of?

      Races and balls (or rollers) in hardened chrome steel, 100Cr6 type: a very hard steel that withstands the fatigue of millions of engine revolutions.

      • Open bearing: unsealed, it is lubricated and cooled by the engine oil; clean oil is its best protection.
      • C3 / C4 internal clearance: slightly more clearance than normal for a hot engine’s expansion; always refit the original clearance.
      • Limit: it dislikes dust and old oil; running short of oil destroys it within minutes.

      Why choose ATHENA?

      Athena, the Italian manufacturer founded in 1973, is an original-equipment supplier to manufacturers such as KTM and Ducati: the same standards for your replacement parts.

      When should you replace the bearings on your YAMAHA DT 125 R?

      On competition bikes the main bearings are replaced at every bottom-end rebuild, at the hours recommended by the manufacturer. With the cases open, spin each bearing by hand: the slightest rough spot means it must go.

      Specifications and fitting tips

      • Application: Engine
      • Material: Stainless steel
      • Electric Motor Quality (EMQ): tight tolerances for a quiet, vibration-free bearing

      Cross-Mania tip: Heat the cases to remove and fit the bearings without forcing them, and replace the oil seals at the same time.

      Also needed with this part

      Compatibility

      Check the exact model and year of your bike in the list below before ordering.

      Fits:
      YAMAHA DT 125 E 1996
      YAMAHA DT 125 LC 1987
      YAMAHA DT 125 LC 1986
      YAMAHA DT 125 MX 1987
      YAMAHA DT 125 MX 1986
      YAMAHA DT 125 R 2002
      YAMAHA DT 125 R 1997
      YAMAHA DT 125 R 1995
      YAMAHA DT 125 R 1988
      YAMAHA DT 125 RE 2005
