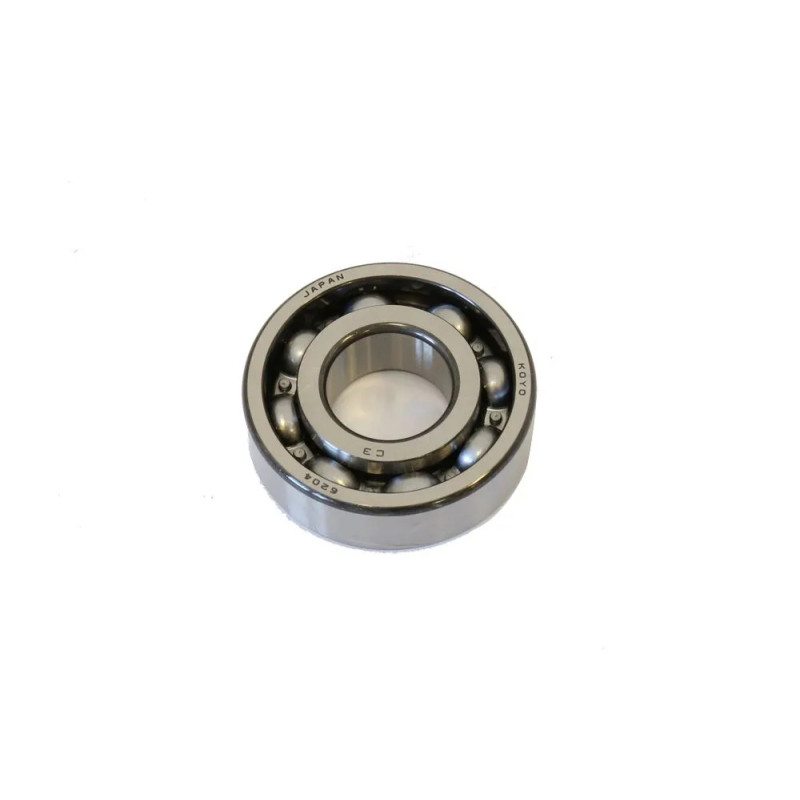

ATHENA engine bearing 6204 C3 – 20 × 47 × 14 mm for YAMAHA YSR 80, YZ 80, YZ 80 LW, SUZUKI LT 80 and KAWASAKI KD 80 A, KD 80 M

Check before ordering

• Bearing: 6204 C3
• Dimensions (inner × outer × width): 20 × 47 × 14 mm

ATHENA offers this engine bearing for YAMAHA YSR 80, YZ 80, YZ 80 LW, SUZUKI LT 80 and KAWASAKI KD 80 A, KD 80 M, KX 80 from 1974 to 2004. The engine’s shafts run on ball or roller bearings in the cases. They carry heavy loads at high revs and eventually develop play.

What is this bearing made of?

Races and balls (or rollers) in hardened chrome steel, 100Cr6 type: a very hard steel that withstands the fatigue of millions of engine revolutions.

• Open bearing: unsealed, it is lubricated and cooled by the engine oil; clean oil is its best protection.
• C3 / C4 internal clearance: slightly more clearance than normal for a hot engine’s expansion; always refit the original clearance.
• Limit: it dislikes dust and old oil; running short of oil destroys it within minutes.

Why choose ATHENA?

Athena, the Italian manufacturer founded in 1973, is an original-equipment supplier to manufacturers such as KTM and Ducati: the same standards for your replacement parts.

When should you replace the bearings?

On competition bikes the main bearings are replaced at every bottom-end rebuild, at the hours recommended by the manufacturer. With the cases open, spin each bearing by hand: the slightest rough spot means it must go.

Specifications and fitting tips

• Application: Engine
• Outside diameter: 47 mm
• Inside diameter: 20 mm
• Thickness: 14 mm
• Material: Stainless steel
• Electric Motor Quality (EMQ): tight tolerances for a quiet, vibration-free bearing

Cross-Mania tip: Heat the cases to remove and fit the bearings without forcing them, and replace the oil seals at the same time.

Also needed with this part

• Complete engine gasket kit : ATHENA · CENTAURO
• 2-stroke oil : LIQUI MOLY 1 L · LIQUI MOLY 4 L

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
KAWASAKI KD 80 A 1976
KAWASAKI KD 80 A 1975
KAWASAKI KD 80 M 1987
KAWASAKI KD 80 M 1986
KAWASAKI KD 80 M 1985
KAWASAKI KD 80 M 1984
KAWASAKI KD 80 M 1983
KAWASAKI KD 80 M 1982
KAWASAKI KD 80 M 1981
KAWASAKI KD 80 M 1980
KAWASAKI KX 80 1979
SUZUKI LT 80 2004
SUZUKI LT 80 2003
SUZUKI LT 80 2002
SUZUKI LT 80 2001
SUZUKI LT 80 2000
SUZUKI LT 80 1999
SUZUKI LT 80 1998
SUZUKI LT 80 1997
SUZUKI LT 80 1996
SUZUKI LT 80 1995
SUZUKI LT 80 1994
SUZUKI LT 80 1993
SUZUKI LT 80 1992
SUZUKI LT 80 1991
SUZUKI LT 80 1990
SUZUKI LT 80 1989
SUZUKI LT 80 1988
YAMAHA YSR 80 1992
YAMAHA YSR 80 1991
YAMAHA YSR 80 1990
YAMAHA YZ 50 G 1980
YAMAHA YZ 80 2001
YAMAHA YZ 80 2000
YAMAHA YZ 80 1999
YAMAHA YZ 80 1998
YAMAHA YZ 80 1997
YAMAHA YZ 80 1996
YAMAHA YZ 80 1995
YAMAHA YZ 80 1994
YAMAHA YZ 80 1993
YAMAHA YZ 80 1992
YAMAHA YZ 80 1991
YAMAHA YZ 80 1990
YAMAHA YZ 80 1989
YAMAHA YZ 80 1988
YAMAHA YZ 80 1987
YAMAHA YZ 80 1986
YAMAHA YZ 80 1985
YAMAHA YZ 80 1984
YAMAHA YZ 80 1983
YAMAHA YZ 80 1982
YAMAHA YZ 80 1981
YAMAHA YZ 80 1980
YAMAHA YZ 80 1979
YAMAHA YZ 80 1978
YAMAHA YZ 80 1977
YAMAHA YZ 80 1976
YAMAHA YZ 80 1975
YAMAHA YZ 80 1974
YAMAHA YZ 80 LW 2001
YAMAHA YZ 80 LW 2000
YAMAHA YZ 80 LW 1999
YAMAHA YZ 80 LW 1998
YAMAHA YZ 80 LW 1997
YAMAHA YZ 80 LW 1996
YAMAHA YZ 80 LW 1995
YAMAHA YZ 80 LW 1994
