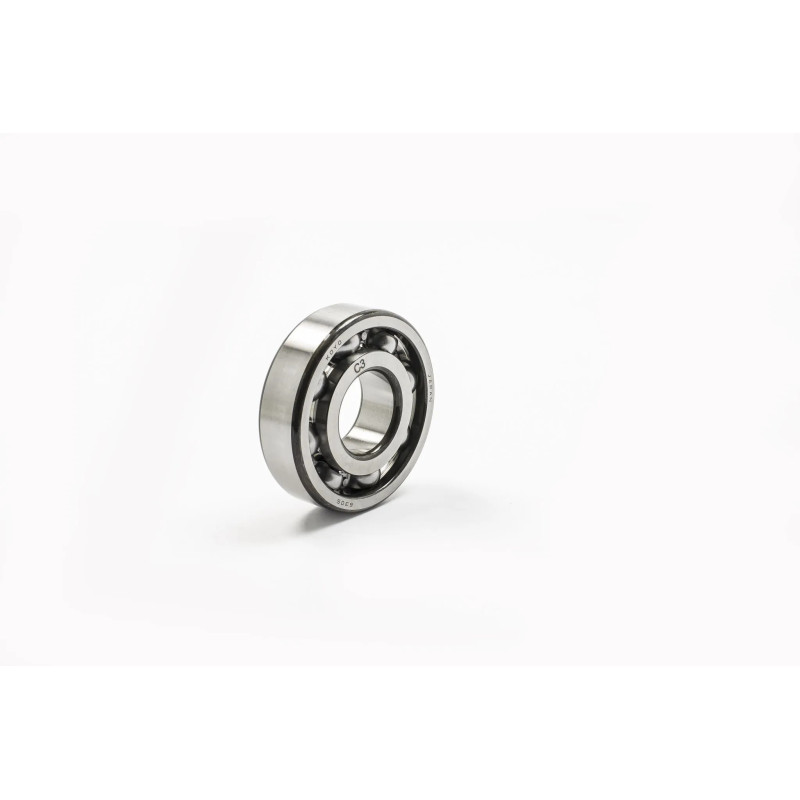

    WOSSNER engine bearing 6306 C3 – 30 × 72 × 19 mm for KAWASAKI KX 500 D, KX 500 E from 1988 to 2004
    WOSSNER engine bearing 6306 C3 – 30 × 72 × 19 mm for KAWASAKI KX 500 D, KX 500 E from 1988 to 2004

    WOSSNER engine bearing 6306 C3 – 30 × 72 × 19 mm for KAWASAKI KX 500 D, KX 500 E from 1988 to 2004

    Review (0)
    €22.90
    Tax Included
    Stock del proveedor, enviado en 2 a 5 días.

    Bearing: 6306 C3 – 30 × 72 × 19 mm

    An engine bearing: it lets a shaft (crank, gearbox, pump) turn without friction.

    Quantity :
    In stock

    Stock del proveedor, enviado en 2 a 5 días.

    Wishlist
    Write your review

      Check before ordering

      • Bearing: 6306 C3
      • Dimensions (inner × outer × width): 30 × 72 × 19 mm

      WOSSNER offers this engine bearing for KAWASAKI KX 500 D, KX 500 E from 1988 to 2004. The engine’s shafts run on ball or roller bearings in the cases. They carry heavy loads at high revs and eventually develop play.

      What is this bearing made of?

      Races and balls (or rollers) in hardened chrome steel, 100Cr6 type: a very hard steel that withstands the fatigue of millions of engine revolutions.

      • Open bearing: unsealed, it is lubricated and cooled by the engine oil; clean oil is its best protection.
      • C3 / C4 internal clearance: slightly more clearance than normal for a hot engine’s expansion; always refit the original clearance.
      • Limit: it dislikes dust and old oil; running short of oil destroys it within minutes.

      Why choose WOSSNER?

      Wössner, the German company founded by a former racer, forges its own parts: design and manufacturing are controlled end to end.

      When should you replace the bearings on your KAWASAKI KX 500 E?

      On competition bikes the main bearings are replaced at every bottom-end rebuild, at the hours recommended by the manufacturer. With the cases open, spin each bearing by hand: the slightest rough spot means it must go.

      Specifications and fitting tips

      • Application: Crankshaft
      • Inside diameter: 30 mm
      • Length: 19 mm
      • Precision bearings

      Cross-Mania tip: Heat the cases to remove and fit the bearings without forcing them, and replace the oil seals at the same time.

      Also needed with this part

      Compatibility

      Check the exact model and year of your bike in the list below before ordering.

      Fits:
      KAWASAKI KX 500 D 1988
      KAWASAKI KX 500 E 2004
      KAWASAKI KX 500 E 2003
      KAWASAKI KX 500 E 2002
      KAWASAKI KX 500 E 2001
      KAWASAKI KX 500 E 2000
      KAWASAKI KX 500 E 1999
      KAWASAKI KX 500 E 1998
      KAWASAKI KX 500 E 1997
      KAWASAKI KX 500 E 1996
      KAWASAKI KX 500 E 1995
      KAWASAKI KX 500 E 1994
      KAWASAKI KX 500 E 1993
      KAWASAKI KX 500 E 1992
      KAWASAKI KX 500 E 1991
      KAWASAKI KX 500 E 1990
      KAWASAKI KX 500 E 1989

      WOSSNER
      MB6306C3
