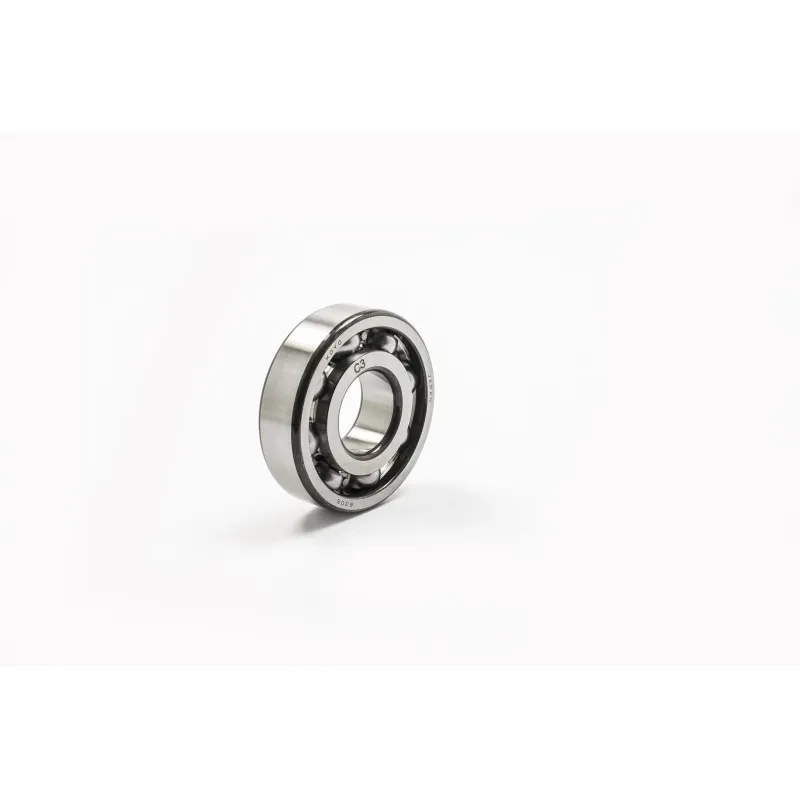

WOSSNER engine bearing 6305 C3 – 25 × 62 × 17 mm for HUSQVARNA WR 250, KAWASAKI KX 250

Check before ordering

• Bearing: 6305 C3
• Dimensions (inner × outer × width): 25 × 62 × 17 mm

WOSSNER offers this engine bearing for HUSQVARNA WR 250, KAWASAKI KX 250, SUZUKI RM 250 and GAS GAS EX 250 from 1978 to 2023. The engine’s shafts run on ball or roller bearings in the cases. They carry heavy loads at high revs and eventually develop play.

What is this bearing made of?

Races and balls (or rollers) in hardened chrome steel, 100Cr6 type: a very hard steel that withstands the fatigue of millions of engine revolutions.

• Open bearing: unsealed, it is lubricated and cooled by the engine oil; clean oil is its best protection.
• C3 / C4 internal clearance: slightly more clearance than normal for a hot engine’s expansion; always refit the original clearance.
• Limit: it dislikes dust and old oil; running short of oil destroys it within minutes.

Why choose WOSSNER?

Wössner, the German company founded by a former racer, forges its own parts: design and manufacturing are controlled end to end.

When should you replace the bearings?

On competition bikes the main bearings are replaced at every bottom-end rebuild, at the hours recommended by the manufacturer. With the cases open, spin each bearing by hand: the slightest rough spot means it must go.

Specifications and fitting tips

• Application: Crankshaft
• Outside diameter: 62 mm
• Inside diameter: 25 mm
• Length: 17 mm
• Precision bearings

Cross-Mania tip: Heat the cases to remove and fit the bearings without forcing them, and replace the oil seals at the same time.

Also needed with this part

• Complete engine gasket kit : CENTAURO · ATHENA
• 2-stroke oil : LIQUI MOLY 1 L 3065 · LIQUI MOLY 1 L 3063

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
GAS GAS EC 250 2021
GAS GAS EX 250 2023
GAS GAS EX 250 2022
GAS GAS EX 250 2021
HUSQVARNA CR 250 2005
HUSQVARNA CR 250 2004
HUSQVARNA CR 250 2003
HUSQVARNA CR 250 2002
HUSQVARNA CR 250 2001
HUSQVARNA CR 250 2000
HUSQVARNA CR 250 1999
HUSQVARNA CR 250 1998
HUSQVARNA TC 250 2017
HUSQVARNA TC 250 2016
HUSQVARNA TC 250 2015
HUSQVARNA TC 250 2014
HUSQVARNA TE 300 2018
HUSQVARNA TE 300 2017
HUSQVARNA TE 300 2016
HUSQVARNA TE 300 2015
HUSQVARNA TE 300 2014
HUSQVARNA WR 250 2012
HUSQVARNA WR 250 2011
HUSQVARNA WR 250 2010
HUSQVARNA WR 250 2009
HUSQVARNA WR 250 2008
HUSQVARNA WR 250 2007
HUSQVARNA WR 250 2006
HUSQVARNA WR 250 2005
HUSQVARNA WR 250 2004
HUSQVARNA WR 250 2003
HUSQVARNA WR 250 2002
HUSQVARNA WR 250 2001
HUSQVARNA WR 250 2000
HUSQVARNA WR 250 1999
HUSQVARNA WR 250 1998
HUSQVARNA WR 300 2013
HUSQVARNA WR 300 2012
HUSQVARNA WR 300 2011
HUSQVARNA WR 300 2010
HUSQVARNA WR 300 2009
KAWASAKI KDX 250 1982
KAWASAKI KDX 250 1981
KAWASAKI KDX 250 1980
KAWASAKI KX 125 B 1983
KAWASAKI KX 125 B 1982
KAWASAKI KX 125 C 1984
KAWASAKI KX 125 D 1985
KAWASAKI KX 125 E 1987
KAWASAKI KX 125 E 1986
KAWASAKI KX 250 1986
KAWASAKI KX 250 1985
KAWASAKI KX 250 1984
KAWASAKI KX 250 1983
KAWASAKI KX 250 1982
KAWASAKI KX 250 1981
KAWASAKI KX 250 1980
KAWASAKI KX 250 1979
KAWASAKI KX 250 1978
SUZUKI RM 250 1993
SUZUKI RM 250 1992
SUZUKI RM 250 1991
SUZUKI RM 250 1990
SUZUKI RM 250 1989
SUZUKI RM 250 1988
SUZUKI RM 250 1987
SUZUKI RM 250 1986
SUZUKI RM 250 1985
SUZUKI RM 250 1984
SUZUKI RM 250 1983
SUZUKI RM 250 1982
SUZUKI RMX 250 1993
SUZUKI RMX 250 1992
SUZUKI RMX 250 1991
SUZUKI RMX 250 1990
SUZUKI RMX 250 1989
