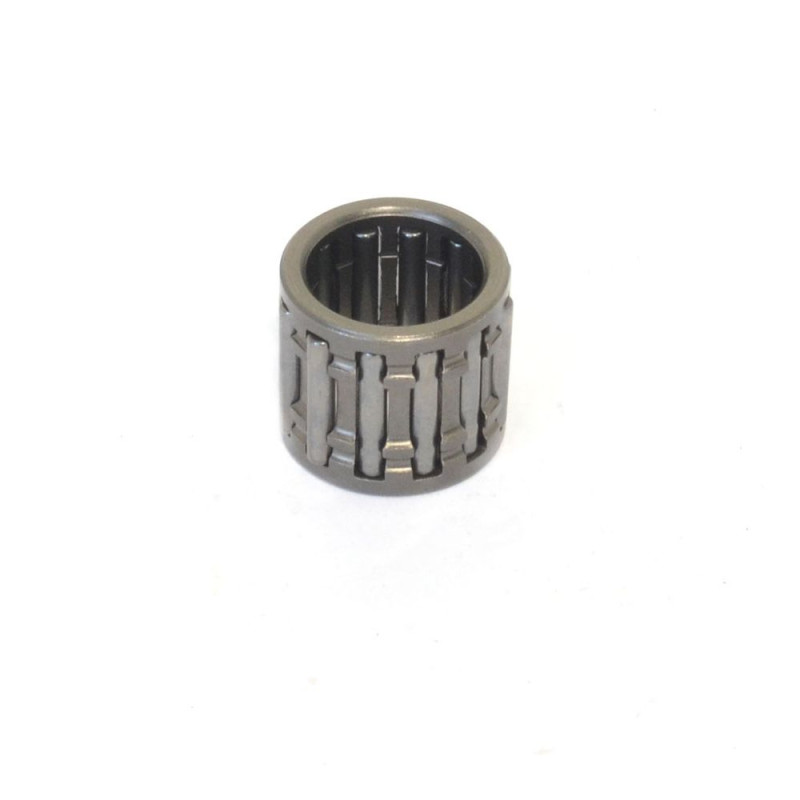

ATHENA Needle Bearing for GAS GAS EC 125 and YAMAHA WR 125, YZ 125 1998-2011

ATHENA offers this needle bearing for GAS GAS EC 125 and YAMAHA WR 125, YZ 125 1998-2011. Fitted in the small end of the connecting rod, it carries the piston pin and works on every stroke of the piston, at very high revs.

Why replace it?

The benefits:

• To be replaced every time the piston is.
• Remove small-end play.

Why choose ATHENA?

Athena, founded in 1973 by Giovanni Mancassola near Vicenza and based in Alonte (Italy), designs gaskets, pistons and cylinder kits; it supplies original equipment to manufacturers such as KTM, Ducati, Fantic and Triumph.

When should you replace it?

Every time you change the piston: a worn needle bearing develops play, runs hot and can break, causing major engine damage. Also replace it if the needles are marked or blued, or if it turns with tight spots.

Specifications and fitting tips

• Dimensions: 15x20x17.8 mm
• Manufacturer part number: MNB150200178

Spare parts and items to plan

• Piston : ATHENA S4C05400016B · ATHENA S4C05400016A
• Piston pin : VERTEX · WOSSNER
• Piston pin clips : WOSSNER
• Top-end gasket kit : INNTECK · TECNIUM

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
GAS GAS EC 125 2011
GAS GAS EC 125 2010
GAS GAS EC 125 2009
GAS GAS EC 125 2008
GAS GAS EC 125 2007
GAS GAS EC 125 2006
GAS GAS EC 125 2005
GAS GAS EC 125 2004
GAS GAS EC 125 2003
GAS GAS EC 125 2002
GAS GAS EC 125 2001
GAS GAS EC 125 2000
YAMAHA WR 125 2001
YAMAHA WR 125 2000
YAMAHA WR 125 1999
YAMAHA WR 125 1998
YAMAHA YZ 125 2001
YAMAHA YZ 125 2000
YAMAHA YZ 125 1999
YAMAHA YZ 125 1998
