PIVOT WORKS Linkage Bearing Kit for HONDA XR 650 2000-2007

On HONDA XR 650 from 2000 to 2007, the PIVOT WORKS PWLKH24006 linkage bearing kit fits in place of the original part. The linkage connects the swingarm to the shock and sets the progression of the suspension. When its bearings are worn, the rear loses suppleness and traction: this kit rebuilds the complete linkage.

Specifications

• Brand: PIVOT WORKS
• Manufacturer part number: PWLKH24006

When to replace it?

• Play when you lift the rear wheel, bike on a stand.
• Suspension that creaks, sticks or reacts less well over small bumps.
• Rusty needles, torn seals or marked bushings on teardown.

Your bike's service manual gives the exact interval. As a Cross-Mania guideline: strip, clean and grease every 20 to 30 hours of racing or after very muddy rides, once a season for leisure riding; replace as soon as play or a tight spot appears.

Fitting tips

1. Note the position of each part as you strip it, side by side.
2. Press the needle bearings out, or use a suitable puller, without making the bores oval.
3. Press the new bearings in squarely, to the same depth as the old ones.
4. Pack bearings, bushings and seal lips with grease before reassembly.
5. Tighten the bolts to the manufacturer's torque and check that the suspension moves freely, without play.

Why PIVOT WORKS?

Pivot Works specialises in chassis rebuild kits for off-road bikes and quads: bearings, seals, bushings and spacers grouped by model. The brand claims original-equipment quality, durability and fit, and since 2012 has offered a lifetime replacement of its kits in case of failure (once per kit).

Spare parts and items to plan

• Grease : MOTUL 400 g

Frequently asked questions

Are the bolts supplied?

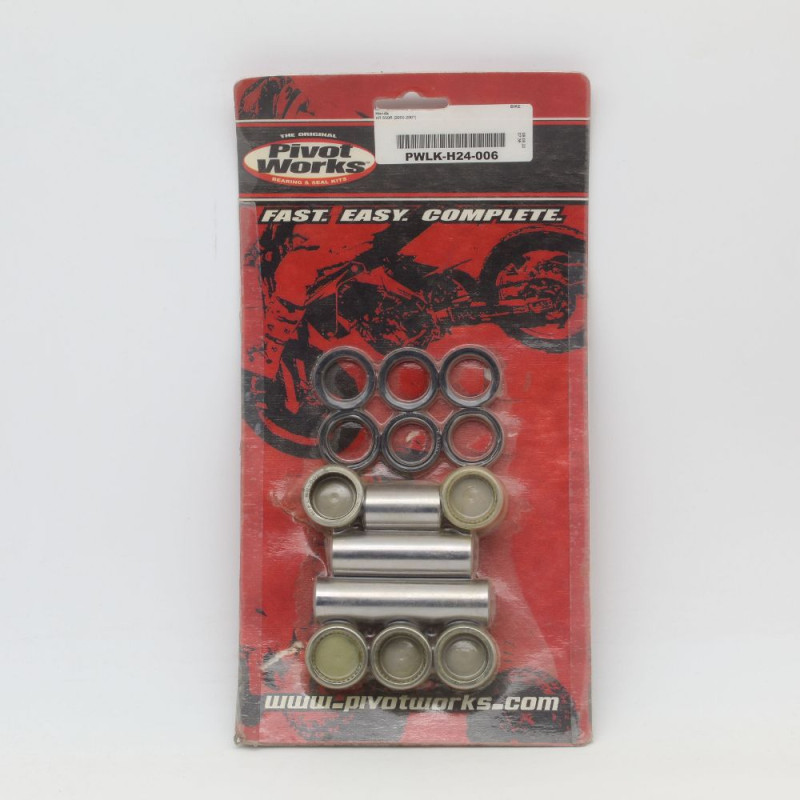

The kit contains the model's bearings, seals and wear bushings; the bolts and hardware stay original if they are not marked. Compare with the photo if in doubt.

Which grease should I use?
A thick, water-resistant grease, applied generously: it protects the needles from mud.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
HONDA XR 650 2007
HONDA XR 650 2006
HONDA XR 650 2005
HONDA XR 650 2004
HONDA XR 650 2003
HONDA XR 650 2002
HONDA XR 650 2001
HONDA XR 650 2000
