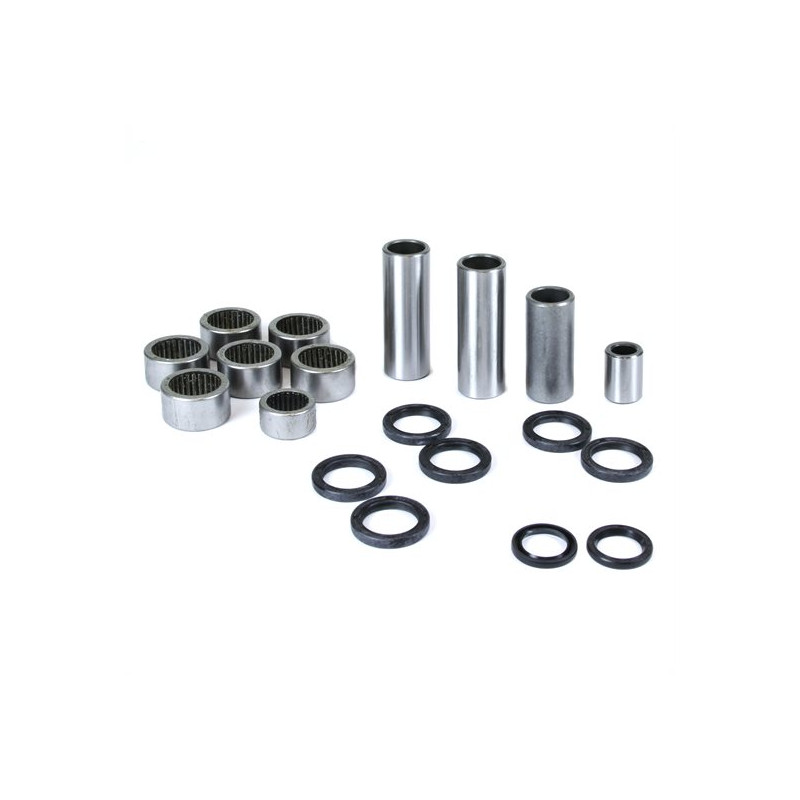

PROX Linkage Bearing Kit for SUZUKI DRZ 400, RM 125, RM 250 and KAWASAKI KLX 400 2000-2025

The PROX 26.110043 linkage bearing kit is designed for SUZUKI DRZ 400, RM 125, RM 250 and KAWASAKI KLX 400 from 2000 to 2025. The linkage connects the swingarm to the shock and works on every bump. Its needle bearings are exposed to water and mud: seized or rusty, they hold back the rear suspension and make the rear end harsh and vague.

Specifications

• Brand: PROX
• Manufacturer part number: 26.110043
• Weight: 400 g

When to replace it?

• Play at the rear when you lift the rear wheel.
• Rear suspension that is harsh or squeaks.
• Rusty needles, marked sleeves or black grease when opened.

Take the linkage apart, clean it and grease it regularly, especially after rides in water or mud, and replace the bearings as soon as they bind or have play.

Fitting tips

1. Support the bike with the rear wheel off the ground and remove the linkage.
2. Press out the old bearings, or pull them out with a puller, without damaging the bores.
3. Press in the new bearings, straight, then fit the seals and the sleeves packed with waterproof grease.
4. Refit the linkage and tighten the pivot bolts to the manual's torque.

Why PROX?

Founded in 1975 and based near Amsterdam, ProX specialises in engine and clutch wear parts for off-road bikes. The brand has most of its range made in Japan, by OEM suppliers, for quality on a par with the original parts.

Spare parts and items to plan

• Swingarm bearings : MOOSE · PROX
• Grease : MOTUL 400 g

Frequently asked questions

Should I do the swingarm at the same time?
It is advisable: the swingarm bearings face the same conditions and are easy to do while you are in there.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
KAWASAKI KLX 400 2003
SUZUKI DRZ 400 2025
SUZUKI DRZ 400 2024
SUZUKI DRZ 400 2023
SUZUKI DRZ 400 2022
SUZUKI DRZ 400 2021
SUZUKI DRZ 400 2020
SUZUKI DRZ 400 2019
SUZUKI DRZ 400 2018
SUZUKI DRZ 400 2017
SUZUKI DRZ 400 2016
SUZUKI DRZ 400 2015
SUZUKI DRZ 400 2014
SUZUKI DRZ 400 2013
SUZUKI DRZ 400 2012
SUZUKI DRZ 400 2011
SUZUKI DRZ 400 2010
SUZUKI DRZ 400 2009
SUZUKI DRZ 400 2008
SUZUKI DRZ 400 2007
SUZUKI DRZ 400 2006
SUZUKI DRZ 400 2005
SUZUKI DRZ 400 2004
SUZUKI DRZ 400 2003
SUZUKI DRZ 400 2002
SUZUKI DRZ 400 2001
SUZUKI DRZ 400 2000
SUZUKI RM 125 2000
SUZUKI RM 250 2000
