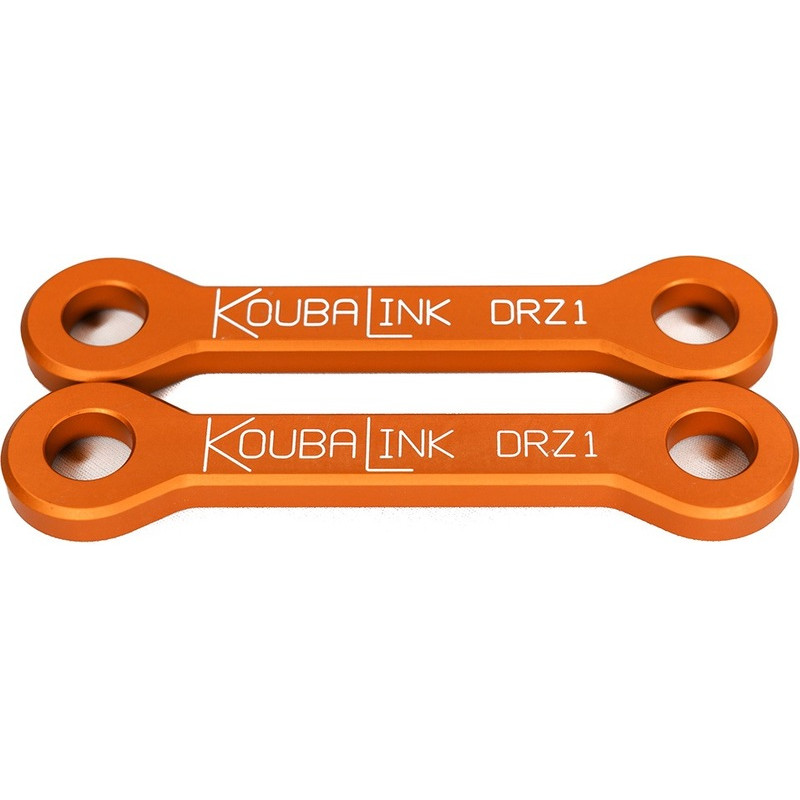

KOUBALINK Lowering Kit 19.1 - 31.8 mm - Gold for SUZUKI DR-Z 400 S, DR-Z 400 SM, DRZ 400 and KAWASAKI KLX 400 2000-2017

KOUBALINK offers this lowering link for SUZUKI DR-Z 400 S, DR-Z 400 SM, DRZ 400 and KAWASAKI KLX 400 2000-2017. On most off-road bikes, the rear shock is connected to the swingarm through a linkage. A lowering link, with different dimensions from the original part, takes its place: the rear of the bike and the seat come down by the amount stated in millimetres, without touching the shock.

Why lower your bike?

The benefits:

• Put your foot down more easily: more confidence when stopped and in slow sections.
• Height lowered by the stated amount (adjustable on some versions), without modifying the shock.
• Fits in place of the original part, which can be refitted at any time.

When should you replace this part?

Useful if only the tips of your toes reach the ground when stopped: shorter, beginner or young riders.

Specifications and fitting tips

• Homologation: No approved in Germany (no ABE)
• Improves front-end stability by lowering the rear suspension geometry
• Machined from billet aluminium
• Manufacturer part number: DRZ1

Cross-Mania tip: Lower the front as well (tubes raised in the clamps) to keep the bike balanced, and check the side stand.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
KAWASAKI KLX 400 2004
KAWASAKI KLX 400 2003
SUZUKI DR-Z 400 S 2014
SUZUKI DR-Z 400 S 2013
SUZUKI DR-Z 400 S 2012
SUZUKI DR-Z 400 S 2011
SUZUKI DR-Z 400 S 2009
SUZUKI DR-Z 400 S 2008
SUZUKI DR-Z 400 S 2007
SUZUKI DR-Z 400 S 2006
SUZUKI DR-Z 400 S 2005
SUZUKI DR-Z 400 S 2004
SUZUKI DR-Z 400 S 2003
SUZUKI DR-Z 400 S 2002
SUZUKI DR-Z 400 S 2001
SUZUKI DR-Z 400 S 2000
SUZUKI DR-Z 400 SM 2017
SUZUKI DR-Z 400 SM 2016
SUZUKI DR-Z 400 SM 2015
SUZUKI DR-Z 400 SM 2014
SUZUKI DR-Z 400 SM 2013
SUZUKI DR-Z 400 SM 2008
SUZUKI DR-Z 400 SM 2007
SUZUKI DR-Z 400 SM 2006
SUZUKI DR-Z 400 SM 2005
SUZUKI DRZ 400 2007
SUZUKI DRZ 400 2006
SUZUKI DRZ 400 2005
SUZUKI DRZ 400 2004
SUZUKI DRZ 400 2003
SUZUKI DRZ 400 2002
SUZUKI DRZ 400 2001
SUZUKI DRZ 400 2000
