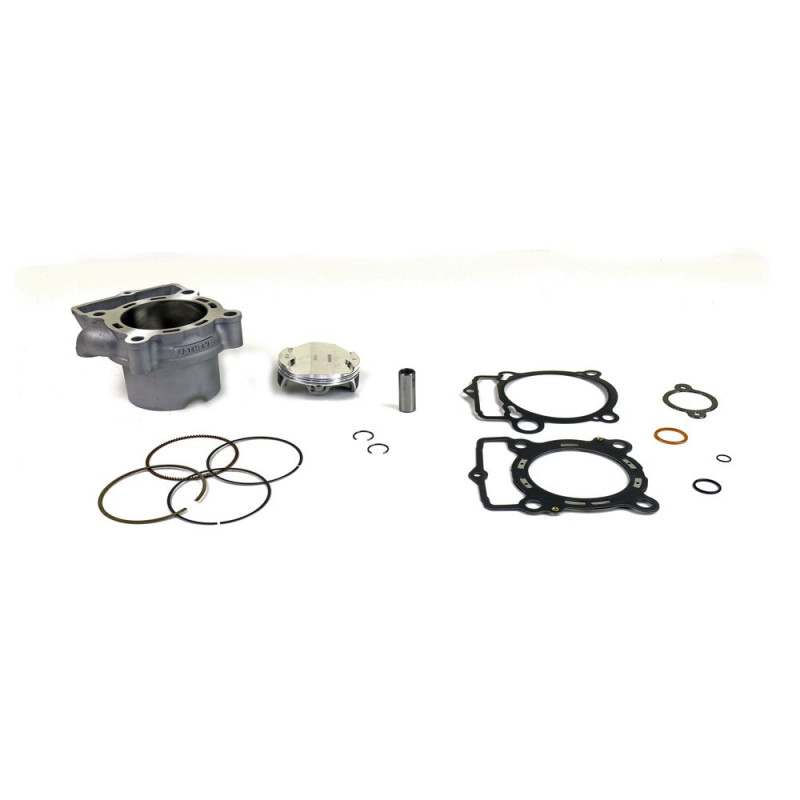

ATHENA Big Bore 276 Cylinder Kit Ø82 mm for HUSQVARNA FE 250 and KTM EXCF 250 2017-2019

The ATHENA Big Bore 276 Ø82 mm P400270100023 cylinder kit is designed for KTM EXCF 250 and HUSQVARNA FE 250 from 2017 to 2019. The cylinder guides the piston and, together with the cylinder head, forms the chamber where combustion takes place. Its bore coating wears, scores or goes oval over the hours: a new cylinder kit gives the engine back its original compression, or more displacement with a Big Bore version.

Specifications

• Brand: ATHENA
• Manufacturer part number: P400270100023
• EAN code: 8052780275415
• Weight: 1.44 kg
• Engine: 4-stroke

When to replace it?

• Cylinder scored or coating flaking after a seizure.
• Ovality or taper out of tolerance when measured with a micrometer.
• You want more torque and power without touching the bottom end.

Measure the cylinder at every piston change. As soon as it falls outside the tolerances in the manual or is scored, it has to be replaced or reconditioned.

Fitting tips

1. Carefully clean the top of the crankcase and cover its opening before removing the old cylinder.
2. Oil the supplied piston and check the ring end gaps before fitting the cylinder.
3. Use new gaskets, either those in the kit or a suitable top end gasket kit, and tighten the cylinder and head in a criss-cross pattern to the manufacturer's torque.
4. Fit a new spark plug and refill the coolant.
5. Break the engine in gently for 3 to 4 hours, as Athena recommends for its cylinder kits.

Why ATHENA?

Athena, an Italian company founded in 1973 near Vicenza, designs gaskets, pistons and cylinder kits for motorcycles. An OEM supplier to KTM, Ducati, Fantic, Piaggio and Triumph and a partner of the MXGP world championship, it develops its parts on the test bench and on the track with racing teams.

Spare parts and items to plan

• Piston : ATHENA
• Piston rings : ATHENA
• Top end gasket kit : ATHENA
• Spark plug : NGK 2305 · NGK 3521
• Coolant : LIQUI MOLY 1 L · TWIN AIR

Frequently asked questions

What does the kit contain?
The cylinder and its complete piston. Check the photo and the Athena instructions for the gaskets supplied.

Is it road legal?
No: a Big Bore kit increases displacement; it is for closed-course competition only and may change your racing class.

Which spare parts should I plan for?
For the next service: piston, rings, pin, circlips and top end gaskets in the same size as this cylinder.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
HUSQVARNA FE 250 2019
HUSQVARNA FE 250 2018
HUSQVARNA FE 250 2017
KTM EXCF 250 2019
KTM EXCF 250 2018
KTM EXCF 250 2017
