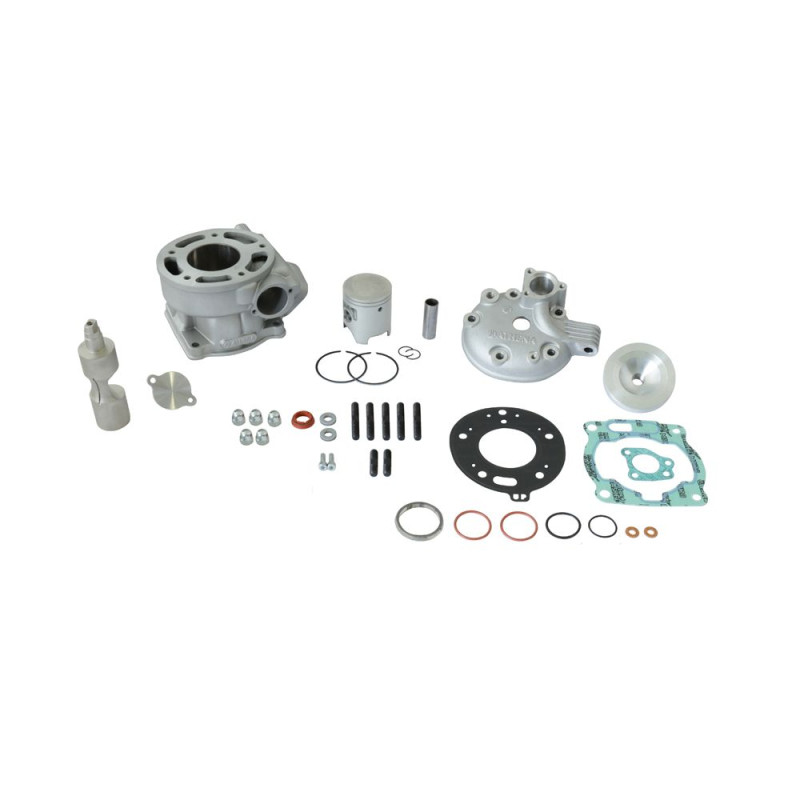

ATHENA standard bore 125 Cylinder Kit Ø56 mm for YAMAHA DT 125 1991-2004
€644.90
Tax Included
ATHENA cylinder kit for YAMAHA DT 125 from 1991 to 2004.
On YAMAHA DT 125 from 1991 to 2004, the ATHENA P400485100019 cylinder kit fits in place of the original part. A cylinder that is scored, oval or has a damaged coating loses compression and wears pistons out quickly. Rather than having it rebored and recoated, this kit replaces it with a new, ready-to-fit cylinder.
Specifications
- Brand: ATHENA
- Manufacturer part number: P400485100019
- EAN code: 8052204292523
- Weight: 3.15 kg
- Engine: 2-stroke
When to replace it?
- Cylinder scored or coating flaking after a seizure.
- Ovality or taper out of tolerance when measured with a micrometer.
Measure the cylinder at every piston change. As soon as it falls outside the tolerances in the manual or is scored, it has to be replaced or reconditioned.
Fitting tips
- Carefully clean the top of the crankcase and cover its opening before removing the old cylinder.
- Oil the supplied piston and check the ring end gaps before fitting the cylinder.
- Use new gaskets, either those in the kit or a suitable top end gasket kit, and tighten the cylinder and head in a criss-cross pattern to the manufacturer's torque.
- Fit a new spark plug and refill the coolant.
- Break the engine in gently for 3 to 4 hours, as Athena recommends for its cylinder kits.
Why ATHENA?
Founded in 1973 near Vicenza, Athena is an Italian engine gasket specialist that has made its gaskets on its own production lines since day one, as well as a renowned manufacturer of pistons and cylinder kits. The brand supplies original equipment to manufacturers such as KTM, Ducati, Fantic, Piaggio and Triumph, and is a partner of the MXGP motocross world championship.
Spare parts and items to plan
- Piston : ATHENA
- Piston rings : ATHENA
- Top end gasket kit : ATHENA
- Cylinder head and dome : ATHENA S410485308004 · ATHENA S410485308005
- Exhaust power valve parts : ATHENA
- Spark plug : NGK 3981 · NGK 2411
- Coolant : LIQUI MOLY 1 L · TWIN AIR
Frequently asked questions
What does the kit contain?
The cylinder and its complete piston. Check the photo and the Athena instructions for the gaskets supplied.
Which spare parts should I plan for?
For the next service: piston, rings, pin, circlips and top end gaskets in the same size as this cylinder.
Compatibility
Check the exact model and year of your bike in the list below before ordering.
Fits:
YAMAHA DT 125 2004
YAMAHA DT 125 2003
YAMAHA DT 125 2002
YAMAHA DT 125 2001
YAMAHA DT 125 2000
YAMAHA DT 125 1999
YAMAHA DT 125 1998
YAMAHA DT 125 1997
YAMAHA DT 125 1996
YAMAHA DT 125 1995
YAMAHA DT 125 1994
YAMAHA DT 125 1993
YAMAHA DT 125 1992
YAMAHA DT 125 1991
P400485100019
