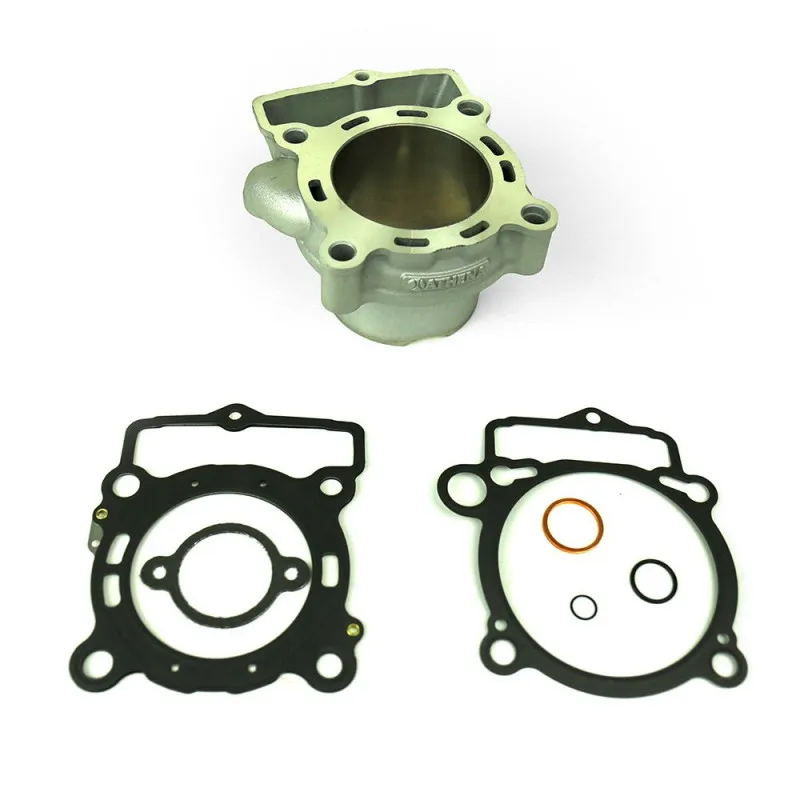

ATHENA standard bore 250 Cylinder Kit Ø78 mm without piston for KTM, HUSQVARNA and GAS GAS 2016-2023

The ATHENA EC270-020 cylinder kit is designed for KTM SXF 250, XCF 250, GAS GAS EXF 250, MCF 250 and HUSQVARNA FC 250 from 2016 to 2023. The cylinder guides the piston and, together with the cylinder head, forms the chamber where combustion takes place. Its bore coating wears, scores or goes oval over the hours: a new cylinder kit gives the engine back its original compression, or more displacement with a Big Bore version.

Specifications

• Brand: ATHENA
• Manufacturer part number: EC270-020
• EAN code: 8052780275934
• Engine: 4-stroke

When to replace it?

• Cylinder scored or coating flaking after a seizure.
• Ovality or taper out of tolerance when measured with a micrometer.

Measure the cylinder at every piston change. As soon as it falls outside the tolerances in the manual or is scored, it has to be replaced or reconditioned.

Fitting tips

1. Carefully clean the top of the crankcase and cover its opening before removing the old cylinder.
2. The cylinder comes without a piston: fit a new piston kit of the stated bore, with its rings, pin and circlips.
3. Use new gaskets, either those in the kit or a suitable top end gasket kit, and tighten the cylinder and head in a criss-cross pattern to the manufacturer's torque.
4. Fit a new spark plug and refill the coolant.
5. Break the engine in gently for 3 to 4 hours, as Athena recommends for its cylinder kits.

Why ATHENA?

Athena, an Italian company founded in 1973 near Vicenza, designs gaskets, pistons and cylinder kits for motorcycles. An OEM supplier to KTM, Ducati, Fantic, Piaggio and Triumph and a partner of the MXGP world championship, it develops its parts on the test bench and on the track with racing teams.

Spare parts and items to plan

• Top end gasket kit : ATHENA
• Spark plug : NGK 97225 · NGK 3521
• Coolant : LIQUI MOLY 1 L · TWIN AIR

Frequently asked questions

What does the kit contain?
The cylinder and its specific gasket kit, without piston: plan for a piston kit of the bore stated.

Which spare parts should I plan for?
For the next service: piston, rings, pin, circlips and top end gaskets in the same size as this cylinder.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
GAS GAS EXF 250 2023
GAS GAS EXF 250 2022
GAS GAS EXF 250 2021
GAS GAS MCF 250 2023
GAS GAS MCF 250 2022
GAS GAS MCF 250 2021
HUSQVARNA FC 250 2022
HUSQVARNA FC 250 2021
HUSQVARNA FC 250 2020
HUSQVARNA FC 250 2019
HUSQVARNA FC 250 2018
HUSQVARNA FC 250 2017
HUSQVARNA FC 250 2016
KTM SXF 250 2022
KTM SXF 250 2021
KTM SXF 250 2020
KTM SXF 250 2019
KTM SXF 250 2018
KTM SXF 250 2017
KTM SXF 250 2016
KTM XCF 250 2022
KTM XCF 250 2021
KTM XCF 250 2020
KTM XCF 250 2019
KTM XCF 250 2018
KTM XCF 250 2017
KTM XCF 250 2016
