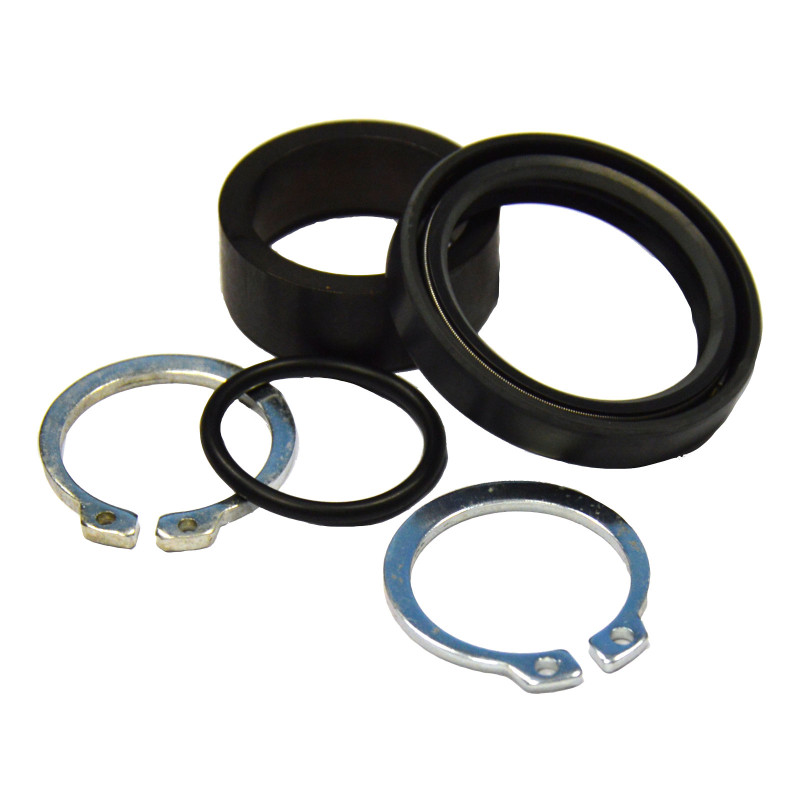

INNTECK Countershaft Seal Kit for SUZUKI RMZ 250 and KAWASAKI KXF 250 2004-2006

The INNTECK WY-25-4013 countershaft seal kit is designed for KAWASAKI KXF 250 and SUZUKI RMZ 250 from 2004 to 2006. Behind the countershaft sprocket, an oil seal seals around the output shaft. It runs on a bush that wears and gets scored by mud and the chain: this kit replaces the wear parts to stop the leak.

Specifications

• Brand: INNTECK
• Manufacturer part number: WY-25-4013
• Engine: 4-stroke

When to replace it?

• Oil on the countershaft sprocket and the crankcase.
• Gearbox oil level dropping.
• Bush scored or marked where the lip runs.

As soon as a leak appears behind the sprocket, and when changing the chain and sprockets if the bush is marked.

Fitting tips

1. Remove the countershaft sprocket, then the bush and the seal, without scratching the housing.
2. Oil the O-ring and the lip of the new seal.
3. Press the seal in perfectly square, then fit the new bush.
4. Top up the gearbox oil.

Spare parts and items to plan

• Gearbox oil : LIQUI MOLY 10W30 1 L · LIQUI MOLY 500 ml

Frequently asked questions

What does the kit contain?
Depending on the model: oil seal, bush and O-ring. If in doubt, compare with your original parts.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
KAWASAKI KXF 250 2005
KAWASAKI KXF 250 2004
SUZUKI RMZ 250 2006
SUZUKI RMZ 250 2005
SUZUKI RMZ 250 2004
