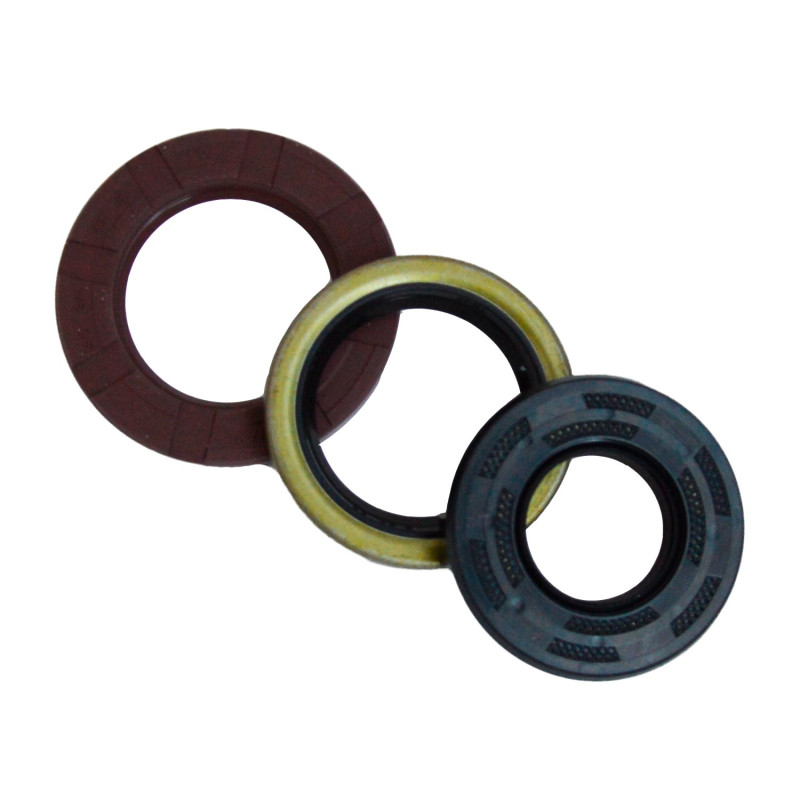

INNTECK Crankshaft Oil Seal for KAWASAKI KX 250 1980-2008

On KAWASAKI KX 250 from 1980 to 2008, the INNTECK OS187 crankshaft oil seal fits in place of the original part. The crankshaft oil seal seals the point where the crankshaft passes through the crankcase. A hardened or worn lip lets oil through and, on a two-stroke, lets air in as well.

Specifications

• Brand: INNTECK
• Manufacturer part number: OS187
• Engine: 2-stroke

When to replace it?

• Unstable idle, revs hanging or rising on their own.
• Gearbox oil level dropping, white smoke (clutch-side seal).
• Oil or black marks on the ignition side.

At every bottom end rebuild, and as soon as these symptoms appear.

Fitting tips

1. Drive out the old seal without scratching the housing or the crankshaft.
2. Grease the lip and press the seal in perfectly square, lip facing the inside of the engine.
3. Protect the lip as you slide it over the crankshaft thread or key.
4. Refit the cover with a new gasket.

Spare parts and items to plan

• Crankshaft bearings and seals : see the selection
• Ignition cover gasket : ATHENA · PROX
• Complete engine gasket kit : MOOSE 808457MSE · MOOSE 811457MSE

Frequently asked questions

Do the crankcases have to be split?
Not always: on some engines, the ignition-side seal can be replaced without splitting the cases. During a rebuild, replace it along with the crankshaft bearing and seal kit.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
KAWASAKI KX 250 2008
KAWASAKI KX 250 2007
KAWASAKI KX 250 2006
KAWASAKI KX 250 2005
KAWASAKI KX 250 2004
KAWASAKI KX 250 2003
KAWASAKI KX 250 2002
KAWASAKI KX 250 2001
KAWASAKI KX 250 2000
KAWASAKI KX 250 1999
KAWASAKI KX 250 1998
KAWASAKI KX 250 1997
KAWASAKI KX 250 1996
KAWASAKI KX 250 1995
KAWASAKI KX 250 1994
KAWASAKI KX 250 1993
KAWASAKI KX 250 1992
KAWASAKI KX 250 1991
KAWASAKI KX 250 1990
KAWASAKI KX 250 1989
KAWASAKI KX 250 1988
KAWASAKI KX 250 1987
KAWASAKI KX 250 1986
KAWASAKI KX 250 1985
KAWASAKI KX 250 1984
KAWASAKI KX 250 1983
KAWASAKI KX 250 1982
KAWASAKI KX 250 1981
KAWASAKI KX 250 1980
