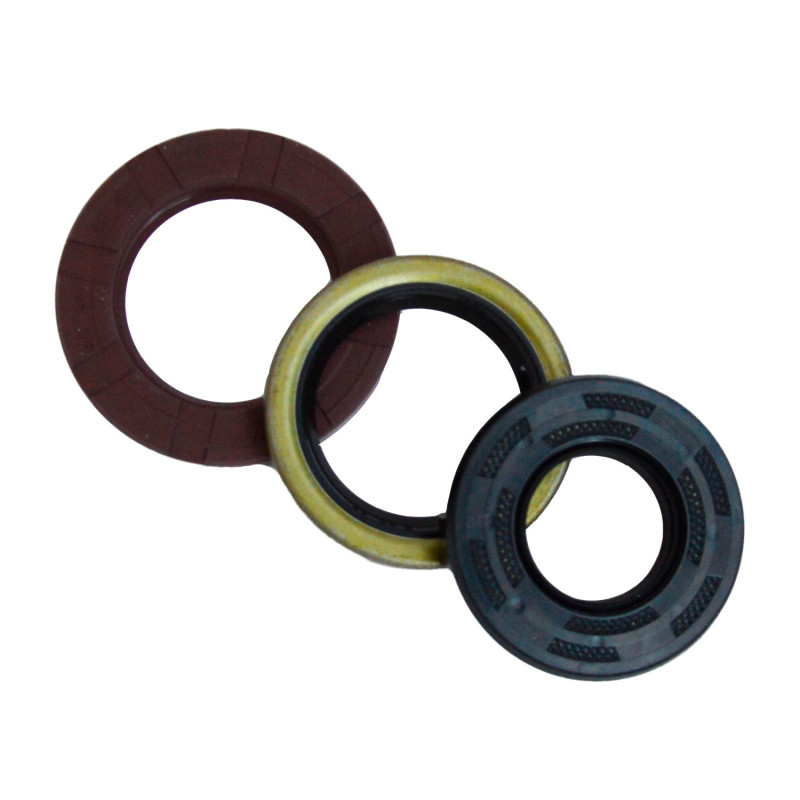

INNTECK Crankshaft Oil Seal for KAWASAKI KX 125 1988-2008

The INNTECK OS111 crankshaft oil seal is designed for KAWASAKI KX 125 from 1988 to 2008. The crankshaft oil seal seals the point where the crankshaft comes out, on the ignition side or the clutch side. On a two-stroke, it keeps the crankcase airtight: a leak draws in air or gearbox oil, and the engine runs badly.

Specifications

• Brand: INNTECK
• Manufacturer part number: OS111
• Engine: 2-stroke

When to replace it?

• Unstable idle, revs hanging or rising on their own.
• Gearbox oil level dropping, white smoke (clutch-side seal).
• Oil or black marks on the ignition side.

At every bottom end rebuild, and as soon as these symptoms appear.

Fitting tips

1. Drive out the old seal without scratching the housing or the crankshaft.
2. Grease the lip and press the seal in perfectly square, lip facing the inside of the engine.
3. Protect the lip as you slide it over the crankshaft thread or key.
4. Refit the cover with a new gasket.

Spare parts and items to plan

• Crankshaft bearings and seals : see the selection
• Ignition cover gasket : ATHENA · PROX
• Complete engine gasket kit : TECNIUM · ATHENA

Frequently asked questions

Do the crankcases have to be split?
Not always: on some engines, the ignition-side seal can be replaced without splitting the cases. During a rebuild, replace it along with the crankshaft bearing and seal kit.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
KAWASAKI KX 125 2008
KAWASAKI KX 125 2007
KAWASAKI KX 125 2006
KAWASAKI KX 125 2005
KAWASAKI KX 125 2004
KAWASAKI KX 125 2003
KAWASAKI KX 125 2002
KAWASAKI KX 125 2001
KAWASAKI KX 125 2000
KAWASAKI KX 125 1999
KAWASAKI KX 125 1998
KAWASAKI KX 125 1997
KAWASAKI KX 125 1996
KAWASAKI KX 125 1995
KAWASAKI KX 125 1994
KAWASAKI KX 125 1993
KAWASAKI KX 125 1992
KAWASAKI KX 125 1991
KAWASAKI KX 125 1990
KAWASAKI KX 125 1989
KAWASAKI KX 125 1988
