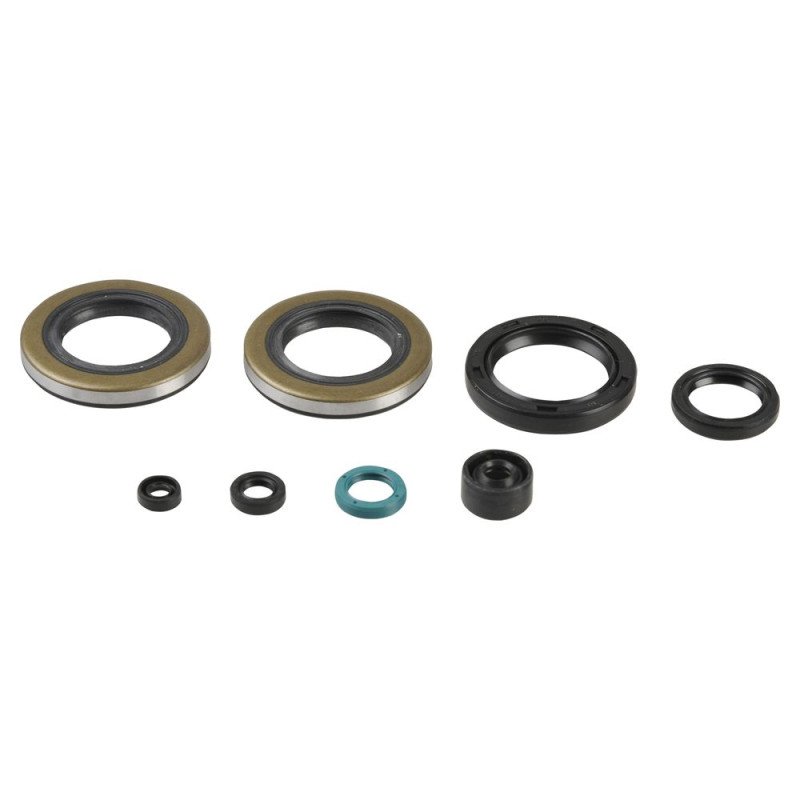

ATHENA Engine Oil Seal Kit for KAWASAKI KX 500 1989-2004

The ATHENA P400250400500 engine oil seal kit is designed for KAWASAKI KX 500 from 1989 to 2004. Oil seals (or lip seals) seal around the shafts that come out of the engine: crankshaft, countershaft, gear shift shaft, kick-start or water pump. On a two-stroke, the crankshaft seals also keep the bottom end airtight, which it needs in order to run.

Specifications

• Brand: ATHENA
• Manufacturer part number: P400250400500
• EAN code: 8055681306257
• Weight: 70 g
• Engine: 2-stroke

When to replace it?

• Oil around the countershaft sprocket, the gear shift shaft or the kick-start.
• On a two-stroke: unstable idle, hanging revs or a drop in the gearbox oil level.
• Lip hardened or split, or shaft marked where the seal runs.

Every time the crankcases are split, and as soon as a leak appears.

Fitting tips

1. Drive out the old seal without scratching its housing.
2. Lightly grease the lip and the housing.
3. Press the seal in perfectly square with a tube or socket of the same diameter, lip facing the oil side.
4. Protect the lip from the splines or keyways as you slide the shaft through (adhesive tape).

Why ATHENA?

Athena, an Italian company founded in 1973 near Vicenza, designs gaskets, pistons and cylinder kits for motorcycles. An OEM supplier to KTM, Ducati, Fantic, Piaggio and Triumph and a partner of the MXGP world championship, it develops its parts on the test bench and on the track with racing teams.

Spare parts and items to plan

• Crankshaft bearings and seals : see the selection
• Complete engine gasket kit : ATHENA · PROX
• Gearbox oil : LIQUI MOLY 10W30 1 L · LIQUI MOLY 1 L

Frequently asked questions

Which seals are included?
The engine's oil seals, depending on the model: crankshaft, countershaft, gear shift shaft, kick-start or water pump. If in doubt, compare with your original parts.

Cases split: what else should I replace?
The crankshaft bearings and a complete engine gasket kit.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
KAWASAKI KX 500 2004
KAWASAKI KX 500 2003
KAWASAKI KX 500 2002
KAWASAKI KX 500 2001
KAWASAKI KX 500 2000
KAWASAKI KX 500 1999
KAWASAKI KX 500 1998
KAWASAKI KX 500 1997
KAWASAKI KX 500 1996
KAWASAKI KX 500 1995
KAWASAKI KX 500 1994
KAWASAKI KX 500 1993
KAWASAKI KX 500 1992
KAWASAKI KX 500 1991
KAWASAKI KX 500 1990
KAWASAKI KX 500 1989
