INNTECK Crankshaft Oil Seal for HONDA CR 250, CR 500 1986-2007
€12.90
Tax Included

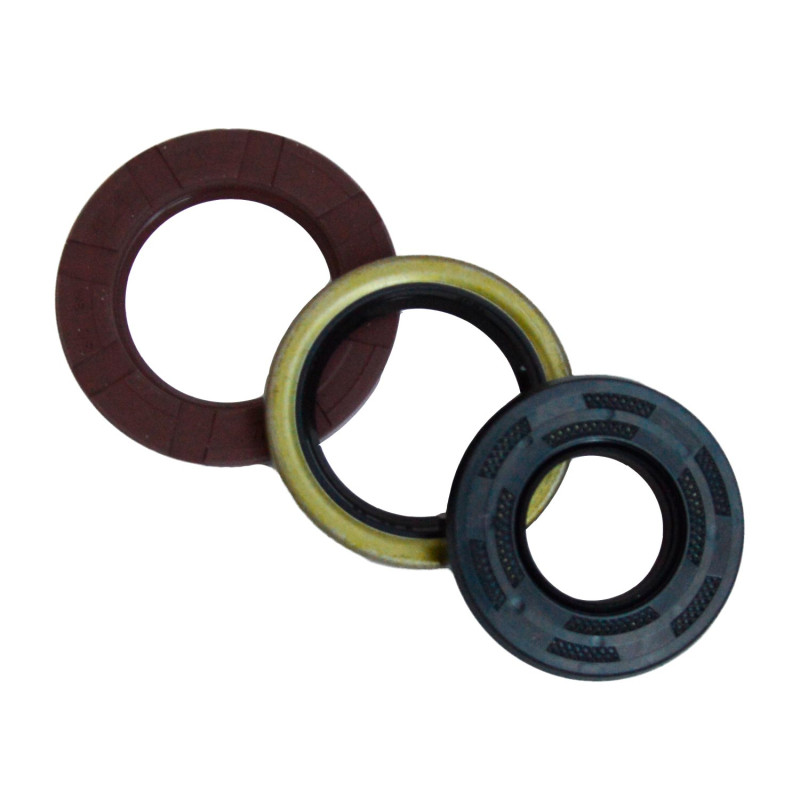

INNTECK crankshaft oil seal for HONDA CR 250, CR 500 from 1986 to 2007.
The INNTECK OS106 crankshaft oil seal is designed for HONDA CR 250, CR 500 from 1986 to 2007. The crankshaft oil seal seals the point where the crankshaft comes out, on the ignition side or the clutch side. On a two-stroke, it keeps the crankcase airtight: a leak draws in air or gearbox oil, and the engine runs badly.
Specifications
- Brand: INNTECK
- Manufacturer part number: OS106
- Engine: 2-stroke
When to replace it?
- Unstable idle, revs hanging or rising on their own.
- Gearbox oil level dropping, white smoke (clutch-side seal).
- Oil or black marks on the ignition side.
At every bottom end rebuild, and as soon as these symptoms appear.
Fitting tips
- Drive out the old seal without scratching the housing or the crankshaft.
- Grease the lip and press the seal in perfectly square, lip facing the inside of the engine.
- Protect the lip as you slide it over the crankshaft thread or key.
- Refit the cover with a new gasket.
Spare parts and items to plan
- Crankshaft bearings and seals : see the selection
- Ignition cover gasket : ATHENA · PROX
- Complete engine gasket kit : ITALKIT 860VG808261 · ITALKIT 860VG808264
Frequently asked questions
Do the crankcases have to be split?
Not always: on some engines, the ignition-side seal can be replaced without splitting the cases. During a rebuild, replace it along with the crankshaft bearing and seal kit.
Compatibility
Check the exact model and year of your bike in the list below before ordering.
Fits:
HONDA CR 250 2007
HONDA CR 250 2006
HONDA CR 250 2005
HONDA CR 250 2004
HONDA CR 250 2003
HONDA CR 250 2002
HONDA CR 250 2001
HONDA CR 250 2000
HONDA CR 250 1999
HONDA CR 250 1998
HONDA CR 250 1997
HONDA CR 250 1996
HONDA CR 250 1995
HONDA CR 250 1994
HONDA CR 250 1993
HONDA CR 250 1992
HONDA CR 250 1991
HONDA CR 250 1990
HONDA CR 250 1989
HONDA CR 250 1988
HONDA CR 250 1987
HONDA CR 250 1986
HONDA CR 500 2001
HONDA CR 500 2000
HONDA CR 500 1999
HONDA CR 500 1998
HONDA CR 500 1997
HONDA CR 500 1996
HONDA CR 500 1995
HONDA CR 500 1994
HONDA CR 500 1993
HONDA CR 500 1992
HONDA CR 500 1991
HONDA CR 500 1990
HONDA CR 500 1989
HONDA CR 500 1988
HONDA CR 500 1987
HONDA CR 500 1986
