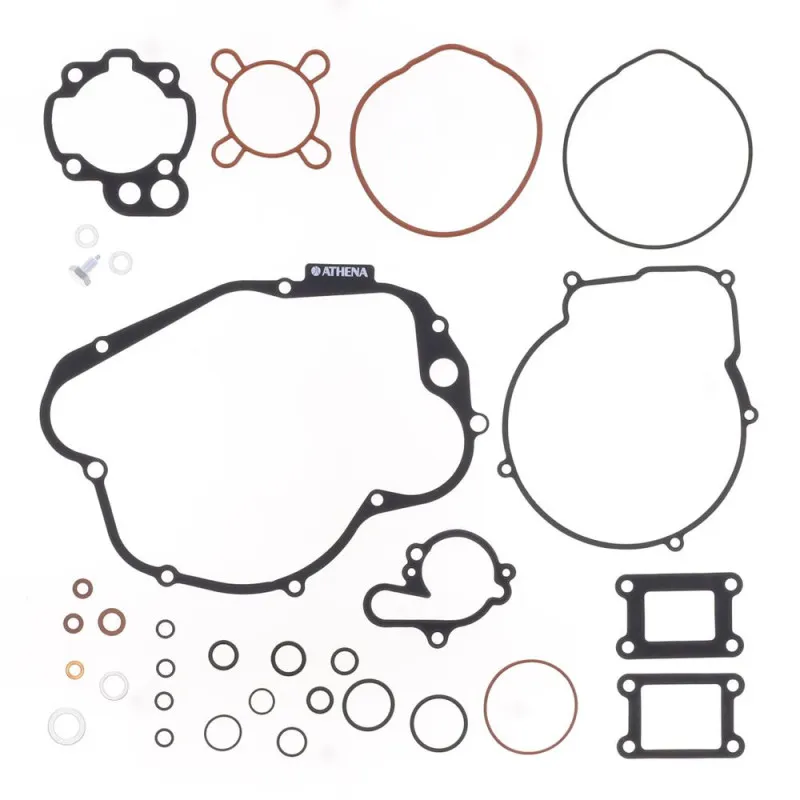

ATHENA Complete Engine Gasket Kit without oil seals for RIEJU, APRILIA, BETA, HM, SHERCO and VENT 1992-2024

The ATHENA P400130850211 complete engine gasket kit is designed for APRILIA MX 50, PEGASO 50, RX 50, RIEJU MRT 50, MRX 50, RR 50, BETA RR 50, SHERCO SE 50, HM CRE 50 and VENT BAJA 50 from 1992 to 2024. A full engine rebuild calls for new gaskets wherever parts have been separated. This kit saves you ordering gaskets one by one and makes sure the engine goes back together perfectly sealed.

Specifications

• Brand: ATHENA
• Manufacturer part number: P400130850211
• EAN code: 8056216249049
• Engine: 2-stroke

When to replace it?

• Oil seeping at the crankcase or cover joints.
• Coolant or oil leak after the engine has been apart.
• Gaskets hardened, torn or stuck to the parts on disassembly.

During a complete engine rebuild (connecting rod, crankshaft bearings, gearbox) or whenever the crankcases are split.

Fitting tips

1. Clean all the gasket faces without scratching them and remove any remains of old gaskets.
2. Fit the gaskets dry, except where the workshop manual specifies sealant.
3. Replace the O-rings at the same time: a crushed O-ring can't be reused.
4. With the cases split, also replace the crankshaft bearings and oil seals and check the gearbox bearings.
5. Tighten the crankcases and covers in a criss-cross pattern to the manufacturer's torque, then fill up with oil and coolant.

Why ATHENA?

Founded in 1973 near Vicenza, Athena is an Italian engine gasket specialist that has made its gaskets on its own production lines since day one, as well as a renowned manufacturer of pistons and cylinder kits. The brand supplies original equipment to manufacturers such as KTM, Ducati, Fantic, Piaggio and Triumph, and is a partner of the MXGP motocross world championship.

Spare parts and items to plan

• Engine oil seals : ATHENA P4E0010450001 · ATHENA P400010450003
• 2-stroke oil : LIQUI MOLY 1 L · LIQUI MOLY 4 L
• Coolant : LIQUI MOLY 1 L · TWIN AIR
• Spark plug : NGK 3961 · NGK 5722

Frequently asked questions

Are the oil seals included?
No: this kit does not include the engine oil seals; order them separately if needed (engine oil seal kit).

What does the kit contain?
Depends on the model. Compare with your original gaskets if in doubt.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
APRILIA MX 50 2005
APRILIA MX 50 2004
APRILIA MX 50 2003
APRILIA MX 50 2002
APRILIA MX 50 2001
APRILIA MX 50 2000
APRILIA MX 50 1999
APRILIA MX 50 1998
APRILIA MX 50 1997
APRILIA MX 50 1996
APRILIA MX 50 1995
APRILIA PEGASO 50 1997
APRILIA PEGASO 50 1996
APRILIA PEGASO 50 1995
APRILIA PEGASO 50 1994
APRILIA PEGASO 50 1993
APRILIA PEGASO 50 1992
APRILIA RX 50 2006
APRILIA RX 50 2005
APRILIA RX 50 2004
APRILIA RX 50 2003
APRILIA RX 50 2002
APRILIA RX 50 2001
APRILIA RX 50 2000
APRILIA RX 50 1999
APRILIA RX 50 1998
APRILIA RX 50 1997
APRILIA RX 50 1996
APRILIA RX 50 1995
BETA RR 50 2024
BETA RR 50 2023
BETA RR 50 2022
BETA RR 50 2021
BETA RR 50 2020
BETA RR 50 2019
BETA RR 50 2018
BETA RR 50 2017
BETA RR 50 2016
BETA RR 50 2015
BETA RR 50 2014
BETA RR 50 2013
BETA RR 50 2012
BETA RR 50 2011
BETA RR 50 2010
BETA RR 50 2009
BETA RR 50 2008
BETA RR 50 2007
BETA RR 50 2006
BETA RR 50 2005
BETA RR 50 2004
BETA RR 50 2003
BETA RR 50 2002
BETA RR 50 2001
BETA RR 50 2000
BETA RR 50 1999
BETA RR 50 1998
HM CRE 50 2017
HM CRE 50 2016
HM CRE 50 2015
HM CRE 50 2014
HM CRE 50 2013
HM CRE 50 2012
HM CRE 50 2011
HM CRE 50 2010
HM CRE 50 2009
HM CRE 50 2008
HM CRE 50 2007
HM CRE 50 2006
HM CRE 50 2005
HM CRE 50 2004
HM CRE 50 2003
HM CRE 50 2002
HM CRE 50 2001
HM CRE 50 2000
HM CRE 50 1999
RIEJU MRT 50 2024
RIEJU MRT 50 2023
RIEJU MRT 50 2022
RIEJU MRT 50 2021
RIEJU MRT 50 2020
RIEJU MRT 50 2019
RIEJU MRT 50 2018
RIEJU MRT 50 2017
RIEJU MRT 50 2016
RIEJU MRT 50 2015
RIEJU MRT 50 2014
RIEJU MRT 50 2013
RIEJU MRT 50 2012
RIEJU MRT 50 2011
RIEJU MRT 50 2010
RIEJU MRT 50 2009
RIEJU MRX 50 2008
RIEJU MRX 50 2007
RIEJU MRX 50 2006
RIEJU MRX 50 2005
RIEJU MRX 50 2004
RIEJU MRX 50 2003
RIEJU MRX 50 2002
RIEJU MRX 50 2001
RIEJU RR 50 2008
RIEJU RR 50 2007
RIEJU RR 50 2006
RIEJU RR 50 2005
RIEJU RR 50 2004
RIEJU RR 50 2003
RIEJU RR 50 2002
RIEJU RR 50 2001
RIEJU RR 50 2000
RIEJU RR 50 1999
RIEJU RR 50 1998
RIEJU RR 50 1997
RIEJU RR 50 1996
RIEJU RR 50 1995
RIEJU RR 50 1994
RIEJU RR 50 1993
SHERCO SE 50 2024
SHERCO SE 50 2023
SHERCO SE 50 2022
SHERCO SE 50 2021
SHERCO SE 50 2020
SHERCO SE 50 2019
SHERCO SE 50 2018
SHERCO SE 50 2017
SHERCO SE 50 2016
SHERCO SE 50 2015
SHERCO SE 50 2014
SHERCO SE 50 2013
SHERCO SE 50 2012
SHERCO SE 50 2011
SHERCO SE 50 2010
SHERCO SE 50 2009
SHERCO SE 50 2008
SHERCO SE 50 2007
SHERCO SE 50 2006
VENT BAJA 50 2024
VENT BAJA 50 2023
VENT BAJA 50 2022
VENT BAJA 50 2021
VENT BAJA 50 2020
VENT BAJA 50 2019
VENT BAJA 50 2018
