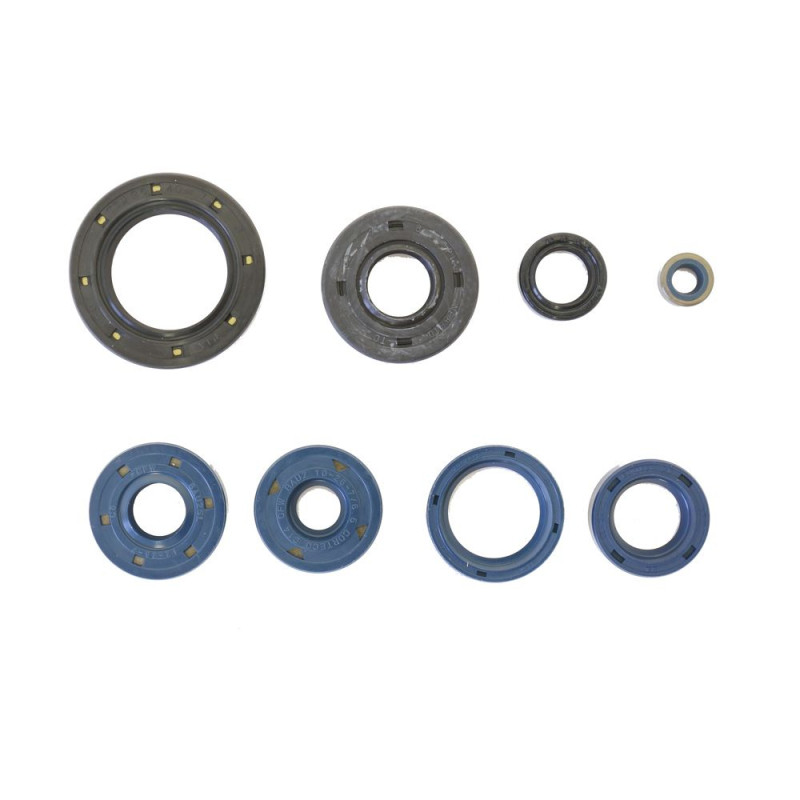

ATHENA Engine Oil Seal Kit for APRILIA PEGASO 650 1991-2004

On APRILIA PEGASO 650 from 1991 to 2004, the ATHENA P400010400150/1 engine oil seal kit fits in place of the original part. Every shaft that passes through the crankcase runs in an oil seal. Over time the lip hardens and oil escapes; on a two-stroke, a leak on the crankshaft side upsets the carburation.

Specifications

• Brand: ATHENA
• Manufacturer part number: P400010400150/1
• EAN code: 8052204231133
• Weight: 60 g
• Engine: 4-stroke

When to replace it?

• Oil around the countershaft sprocket, the gear shift shaft or the kick-start.
• Lip hardened or split, or shaft marked where the seal runs.

Every time the crankcases are split, and as soon as a leak appears.

Fitting tips

1. Drive out the old seal without scratching its housing.
2. Lightly grease the lip and the housing.
3. Press the seal in perfectly square with a tube or socket of the same diameter, lip facing the oil side.
4. Protect the lip from the splines or keyways as you slide the shaft through (adhesive tape).

Why ATHENA?

Founded in 1973 near Vicenza, Athena is an Italian engine gasket specialist that has made its gaskets on its own production lines since day one, as well as a renowned manufacturer of pistons and cylinder kits. The brand supplies original equipment to manufacturers such as KTM, Ducati, Fantic, Piaggio and Triumph, and is a partner of the MXGP motocross world championship.

Spare parts and items to plan

• Crankshaft bearings and seals : see the selection
• Complete engine gasket kit : ATHENA
• Gearbox oil : LIQUI MOLY 10W30 1 L · LIQUI MOLY 500 ml

Frequently asked questions

Which seals are included?
The engine's oil seals, depending on the model: crankshaft, countershaft, gear shift shaft, kick-start or water pump. If in doubt, compare with your original parts.

Cases split: what else should I replace?
The crankshaft bearings and a complete engine gasket kit.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
APRILIA PEGASO 650 2004
APRILIA PEGASO 650 2003
APRILIA PEGASO 650 2002
APRILIA PEGASO 650 2001
APRILIA PEGASO 650 2000
APRILIA PEGASO 650 1999
APRILIA PEGASO 650 1998
APRILIA PEGASO 650 1997
APRILIA PEGASO 650 1996
APRILIA PEGASO 650 1995
APRILIA PEGASO 650 1994
APRILIA PEGASO 650 1993
APRILIA PEGASO 650 1992
APRILIA PEGASO 650 1991
